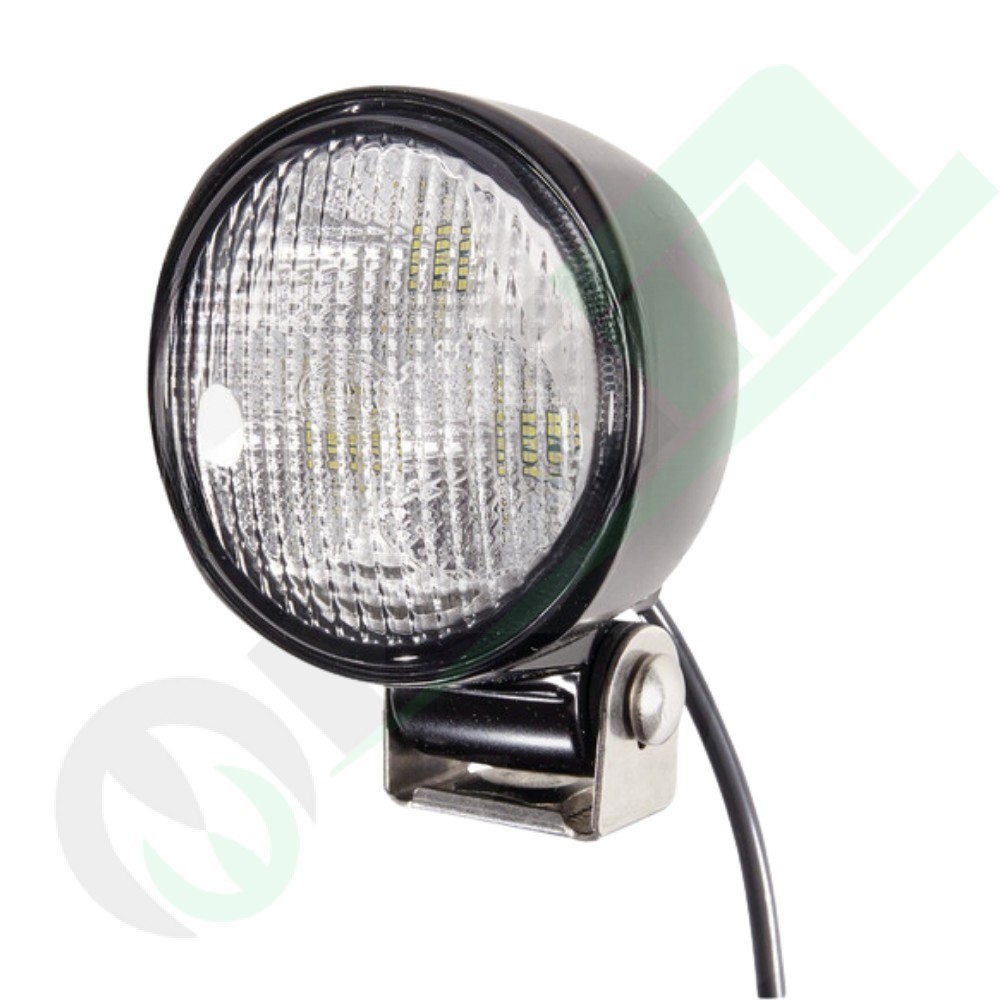

HELLA LED Work Light 20W | Close Range | 1800 lm | IP6K9K

HELLA LED Work Light 1G0 996 576-031 | 20W | Close Range | 1800 lm | Gen. 3.2

Name: HELLA LED Work Light 1G0 996 576-031 | 20W | Close Range | 1800 lm | Gen. 3.2
SKU: 1G0 996 576-031
Price: 185 EUR
Availability: InStock

Brand : Hella

Reference : 1G0 996 576-031

HELLA LED WORK LIGHT MODULE 70 1800LM CLOSE-RANGE IP6K9K Part No. 1G0 996 576-031

Hurry! only 2 items left in stock.

€185.00

Tax included

Quantity

Last items in stock

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

Exceptional luminous efficiency in the compact Module 70 form factor. The **HELLA LED Work Light Generation 3.2** delivers **1800 effective Lumens** with only 20W power consumption, focused on **Close-Range Illumination** (Flood). Thanks to **IP6K9K** protection and built-in reverse polarity, overvoltage, and overheating safeguards, it is the ideal choice for demanding work environments and applications where space is restricted.

Performance and Electrical Specifications

Part Number: 1G0 996 576-031

Type: Module 70 LED Generation 3.2

Light Function: **Close-Range Illumination (Flood/Area)**

Effective Luminous Flux (lm): **1800**

Power Consumption (W): 20

Current Draw (A): 1.6A @ 12V / 0.8A @ 24V

Light Color (K): 6500 (Pure White)

Operating Voltage (V): 9 - 33 (12V / 24V)

LED Quantity: 3

Design and Durability

Shape: Round

Dimensions W x H x D (mm): Ø 83 x 74

Structural Size (mm): 110 (Total height with bracket)

Light Aperture (mm): Ø 70

Housing Color: Black

Housing Material: Aluminum with cooling fins

Protection Type: **IP6K9K / IP6K8** (Maximum resistance to water jets and immersion)

Temperature Range (°C): -40°C to +50°C

Installation and Approvals

Connection: Open Cable Ends

Cable Length (mm): 2000

Mounting Method: Vertical; Bracket Fixing

Additional Information: • **Reverse polarity**, **overvoltage**, and **overheating** protection

Testing Mark: E1; EMV; RCM; ECE R10

Key Buyer Benefits

**High Efficiency:** 1800lm with only 20W, providing excellent light with low current draw.
**Unbeatable Durability:** IP6K9K protection and protected electronics for an exceptionally long service life.
**Versatile Mounting:** Compact Module 70 design and 2-meter cable for easy installation.

Choose the HELLA 1G0 996 576-031 projector for maximum working efficiency!
