PVC Spiral Hose Vacupress Cristal | Internal Diameter: 32mm (1 1/4")

PVC Spiral Hose Vacupress Cristal | Internal Diameter: 32mm (1 1/4") - PRICE PER METER

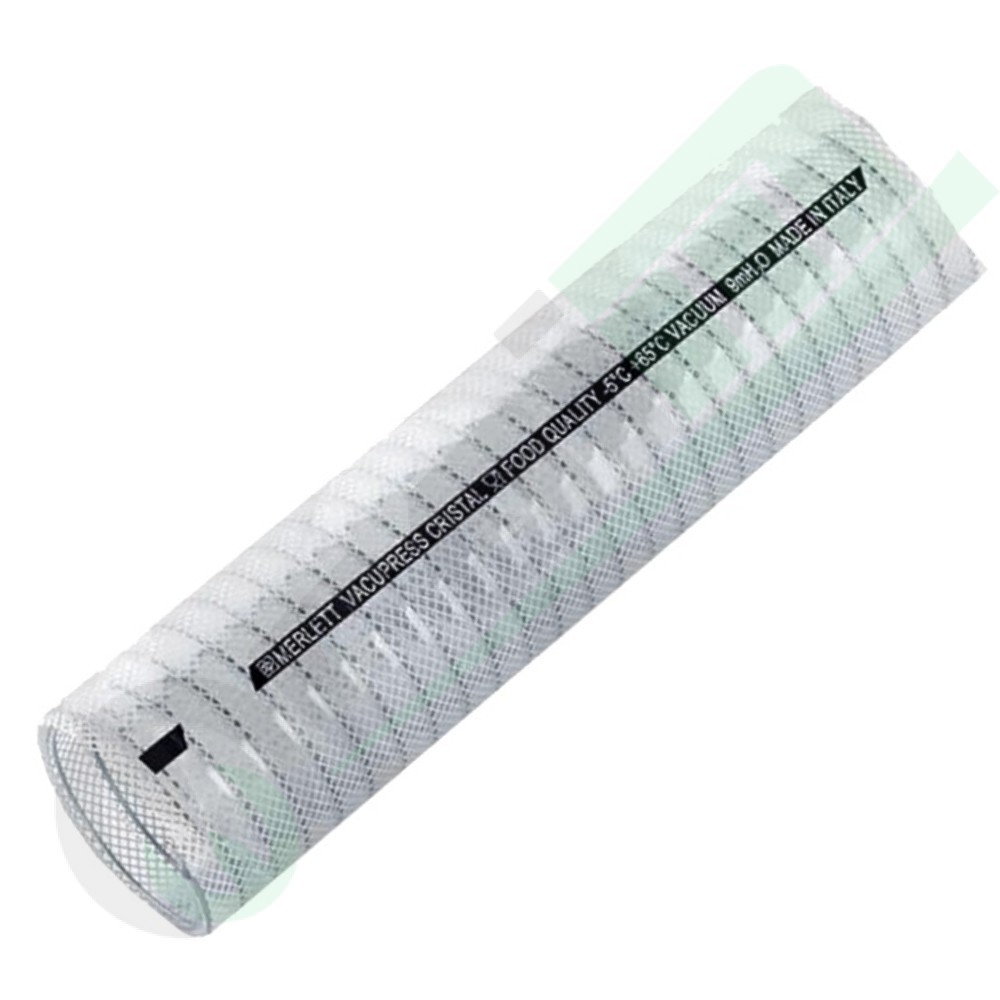

The PVC Spiral Hose Vacupress Cristal is a transparent flexible hose with a spiral, ideal for the suction and transfer of liquids and food-grade substances. Its transparency allows for visual flow control, while the robust construction ensures durability and reliability in various applications.

Application:

This is a universal flexible hose for conveying and suctioning food liquids, drinking water, alcohol up to 28%, and other food products, where requirements for heavy-duty application conditions are demanded.

Main Features:

Characteristics: Two layers of soft PVC with an integrated steel wire spiral in the first layer and a polyester thread insert between the first and second layer. Clear transparent color, heavy-duty version. Flexible, very strong, abrasion resistance according to DIN 4649: 90 mm³±10%. Smooth internally and externally.

Dimensions: Internal Diameter: 32 mm (1 1/4") External Diameter: 42.5 mm Wall Thickness: 5.25 mm Wire Diameter (Spiral): 1.2 mm

Performance: Working Pressure: 16 bar Burst Pressure: 48 bar Vacuum: 0.9 bar Bend Radius: 110 mm

Temperature Range: From -5°C to +65°C.

Suitable for food use: Yes.

Availability: Sold per meter (Standard roll length: 60 m).
