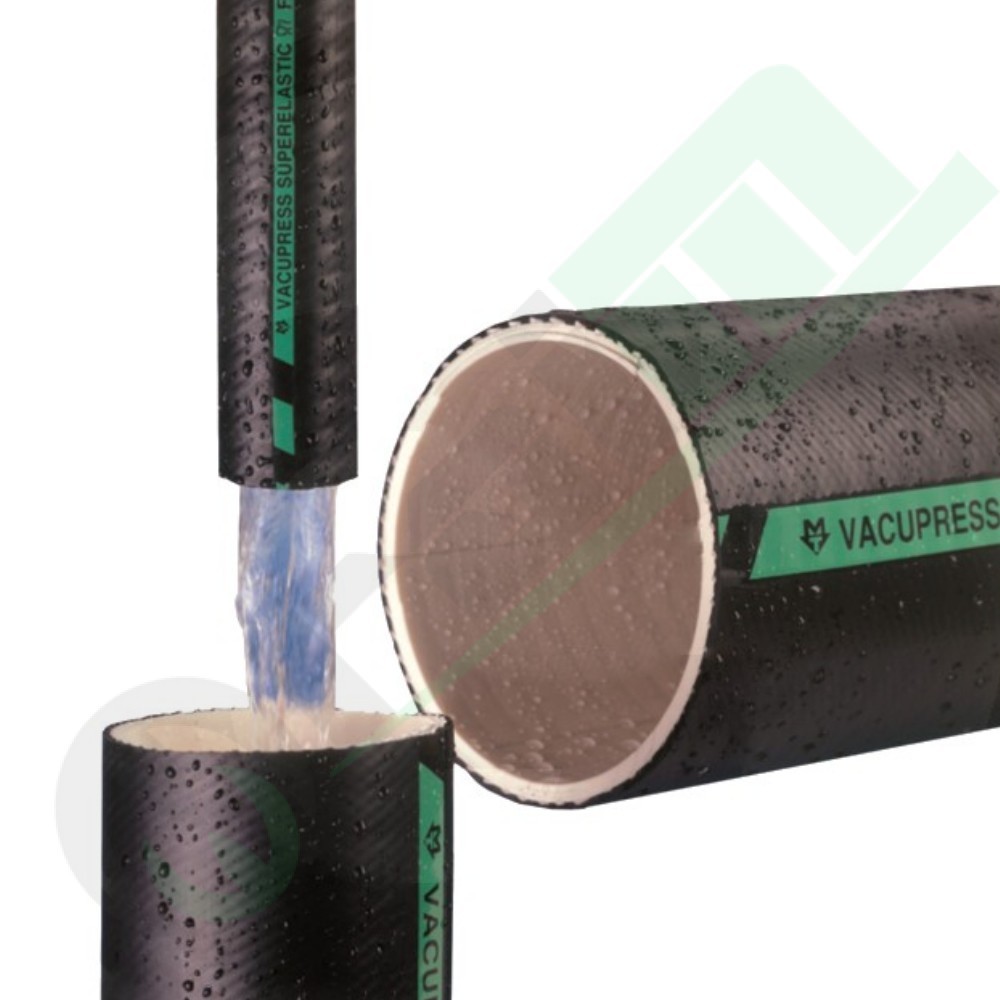

PVC Vacupress Superelastic Spiral Hose | Inner Diameter: 1 3/4" / 45mm - PRICE PER METER
The PVC Vacupress Superelastic Spiral Hose is a high-performance flexible hose, designed for efficient suction and transfer of liquids, including food-grade ones. Thanks to its robust construction and reinforced spiral, it offers an excellent combination of flexibility and resistance, making it suitable for a wide range of industrial and agricultural applications.
Key Features: Dimensions: Inner Diameter: 45 mm (1 3/4")
Outer Diameter: 58 mm
Wall Thickness: 6.5 mm
Wire Ø (Spiral): 1.4 mm
Performance: Operating Pressure: 10 bar
Burst Pressure: 36 bar
Vacuum (Depression): 0.9 bar
Bending Radius: 140 mm
Weight: 1.4 kg/m
Material: Two-layer food-grade PVC hose. Inner galvanized steel spiral and polyester yarn reinforcement (as with other models in the Vacupress Superelastic line, even if not specified here, it's a common feature).
Temperature Range: -25°C to +60°C.
Food Grade Suitability: Yes, compliant with food-use standards.
Availability: Sold per meter (Standard roll length: 30 m).
Hose Type: Spiral hose.
Ideal Usage: This hose is particularly suitable for: Suction and transfer of food-grade liquids, thanks to its certification. Applications requiring strong resistance to both pressure and vacuum. Sectors needing a flexible and durable hose for a wide range of liquids.
