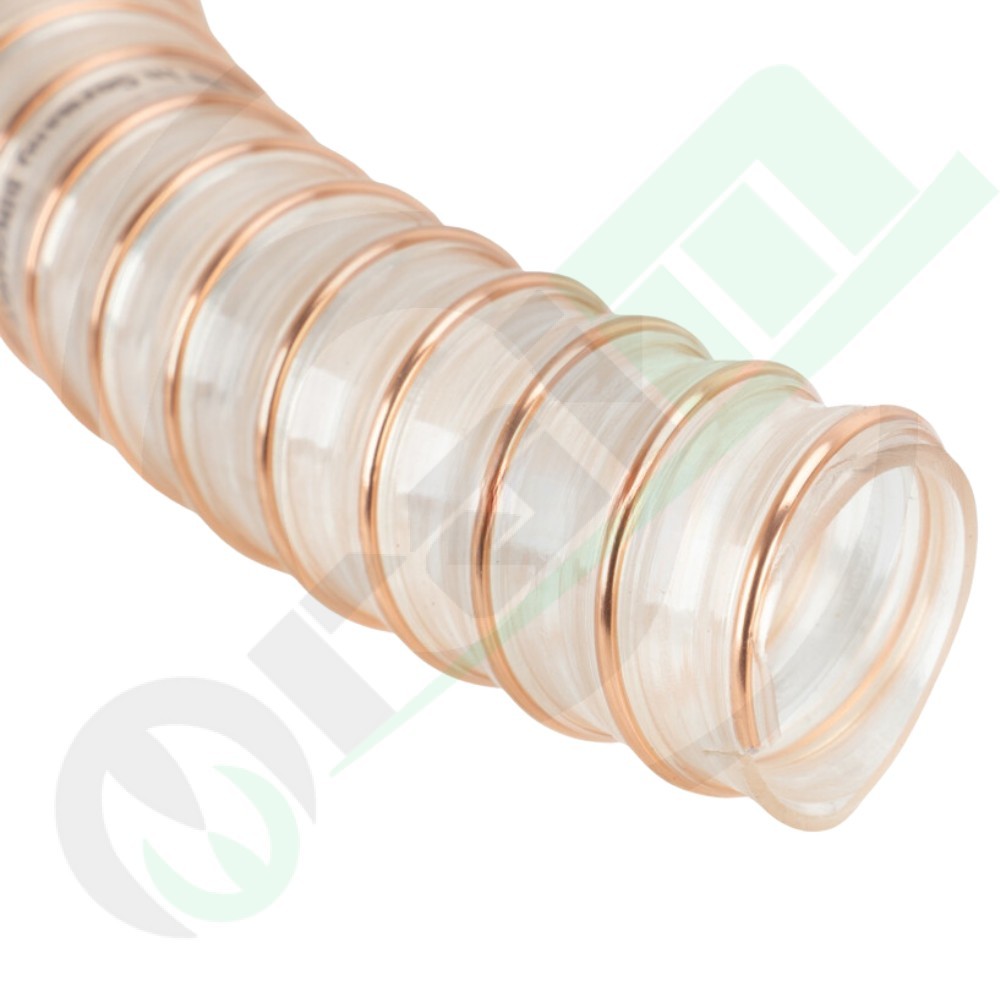

Antistatic Polyurethane Flexible Hose | Inner Diameter: 60mm

Antistatic Polyurethane Flexible Hose | Inner Diameter: 60mm

This antistatic polyurethane (PU) spiral hose is a versatile and abrasion-resistant solution, ideal for the suction and conveyance of various materials. Its robust construction and optimized features make it excellent for demanding industrial applications, ensuring reliability and durability.

Key Features:

• Dimensions:

  • Inner Diameter: 60 mm

  • Outer Diameter: 73 mm

  • Wall Thickness: 1.4 mm (Note: approx. 1.5 mm wall thickness is mentioned in the structure, we will use 1.4mm as the specific data, but it's a minor difference)

  • Wire Thickness (Spiral): 1.5 mm

• Performance:

  • Max Operating Pressure: 2.25 bar

  • Vacuum (Depression): 0.55 bar

  • Bending Radius: 60 mm (very flexible)

  • Weight: 770 g/m (lightweight)

• Material:

  • Wall made of special premium polyurethane ester.

  • Reinforced with a spring steel wire firmly integrated into the wall.

• Temperature Range:

  • Approx. -40°C to approx. +90°C.

  • For short periods: up to approx. +125°C.

• Additional Properties:

  • Antistatic: Prevents electrostatic charge build-up.

  • Smooth interior and optimized flow profile for efficient material transfer.

  • Flexible with reduced weight.

  • Higher pressure and vacuum resistance.

  • High tensile and tear strength.

  • Good resistance to oil, gasoline, chemicals, UV rays, and ozone.

  • Kink-resistant.

• Availability: Sold by the meter (standard roll length 20 m).

• Food Grade Suitability: Not suitable for food use.

Usage:

This hose is an excellent choice for:

• High throughput of abrasive solids like dust, chips, granules, and seeds.

• Conveying gaseous and liquid media.

• Serving as a robust protective hose.

PRICE PER METER
