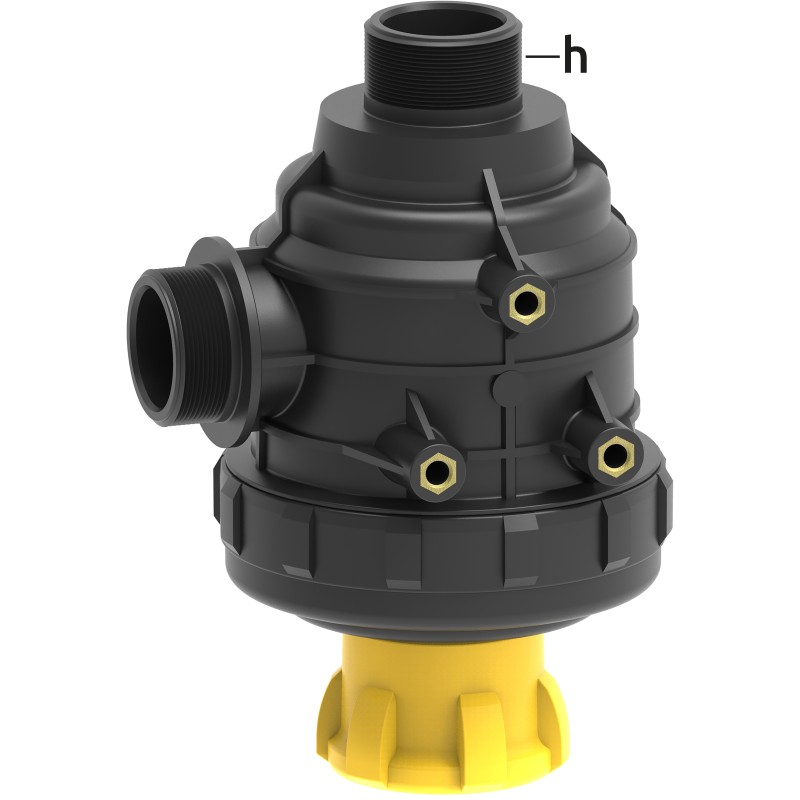

Suction filter with threaded connection G 1 1/2" and valve - Flow rate: 100 -160 | Arag

ARAG Suction Filter - Blue Marking (1 1/2” External Thread)

Product Code

3142463

Certification

✅ Complies with quality standards for agricultural and industrial applications, designed to offer advanced protection to pumping systems

Key Features

✔ Vacuum filter with automatic safety valve for filter cleaning, ensuring optimum protection and continuous flow without hitches

✔ Flow rate from 100 to 160 l/min, ideal for small and medium-sized systems

✔ 1 1/2” external thread connection for easy and safe installation

✔ Filter body with blue marking for quick identification and maintenance

✔ Type: Vacuum filter designed to keep the hydraulic system clean, preventing clogging of the pumps

Safety and Protection

? Automatic safety valve that cleans the filter during use, ensuring continuous protection without the need for manual intervention

? Filter designed to prevent the entry of particles and impurities into the system, preventing damage and improving the efficiency of the pumping system

Technical specifications

? Technical data:

Flow rate: 100 - 160 l/min

Mesh quantity: 50

Connection: External thread 1 1/2”

Filter element: 6703142003030

Type: Vacuum filter

Technologies and materials

✔ Built with materials resistant to chemical agents and high pressures to ensure durability and resistance

✔ Filtration system designed to reduce the risk of clogging and extend the operating life of the pumping system

Sectors of use

? Agriculture: for the protection of irrigation systems, atomizers, and other weeding and soil treatment systems

? Industry: used in hydraulic systems to filter the entry of impurities into pumping systems

? Filtration systems: to maintain the efficient hydraulic system and prevent contamination damage
