Suction filter with threaded connection G 1 1/2" and valve - Flow rate: 100 -160 | Arag

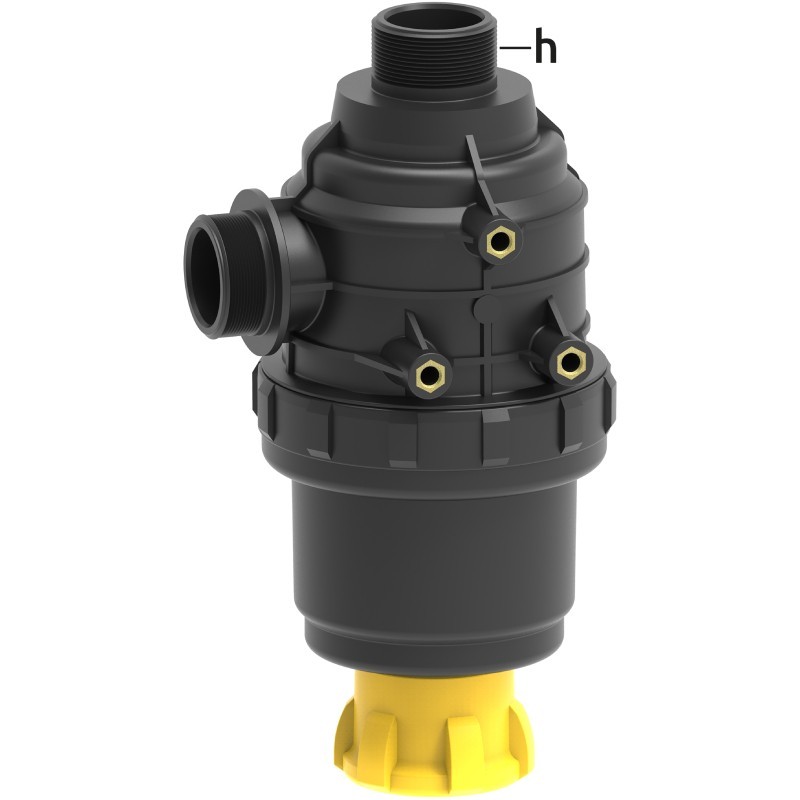

ARAG Suction Filter - Blue Marking (External Thread 1 1/2")

Product code

3142463

Certification

✅ Complies with quality standards for agricultural and industrial applications, with particular attention to the protection of pumping systems

Main features

✔ Vacuum filter with automatic safety valve for cleaning, designed to ensure optimum performance in low and medium flow applications

✔ Flow rate from 100 to 160 l/min, suitable for pumping systems with reliable protection requirements

✔ Connection with external thread 1 1/2" for easy installation

✔ Filter body with blue marking for quick identification

✔ Type: Vacuum filter, for effective protection against impurities and improved system performance

Safety and protection

? Automatic safety valve that allows filter cleaning without interrupting operation, ensuring continuity and efficiency of the system

? Prevention of damage to components of the pumping system through continuous filtration

Technical specifications

? Technical data:

Flow rate: 100 - 160 l/min

Mesh quantity: 50

Connection: External thread 1 1/2”

Filter element: 6703142003030

Type: Vacuum filter

Technologies and materials

✔ Made of corrosion and chemical resistant materials for a long life

✔ Optimized design for continuous and precise filtration

Sectors of use

? Agriculture: protection for irrigation systems, sprayers and weed control systems

? Industry: ideal for applications in pumping systems and hydraulic systems

? Filtration systems: to maintain the correct operation of pumps and minimize failures due to contamination
