Spare Parts for Gaspardo FB925 Mower | Genuine and Comparative

star star star star star_border
45725

We provide a comprehensive range of genuine and high-quality comparative spare parts for the Gaspardo FB925 mower, engineered to maintain the machinery's operational efficiency and cutting precision. The selection includes critical components such as cutting sections, fingers (guards), knife heads, and wear plates, all manufactured from high-strength steel to ensure long-term durability even under intensive working conditions. Due to their perfect compatibility with the FB925 model, these parts allow for a quick restoration of original performance, reducing machine downtime during the haymaking season.

Articolo : 45725
Hurry! only 7 items left in stock.
€19.50
Tax included
COUPON
- € 0,39
Final price: 19,11
Quantity

High availability
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Original and Comparative Spare Parts for BCS Mower - Duplex and Special Series

Complete list of components for the maintenance and restoration of BCS cutter bars. Each part is selected to ensure perfect cutting system synchronization and maximum operational life.

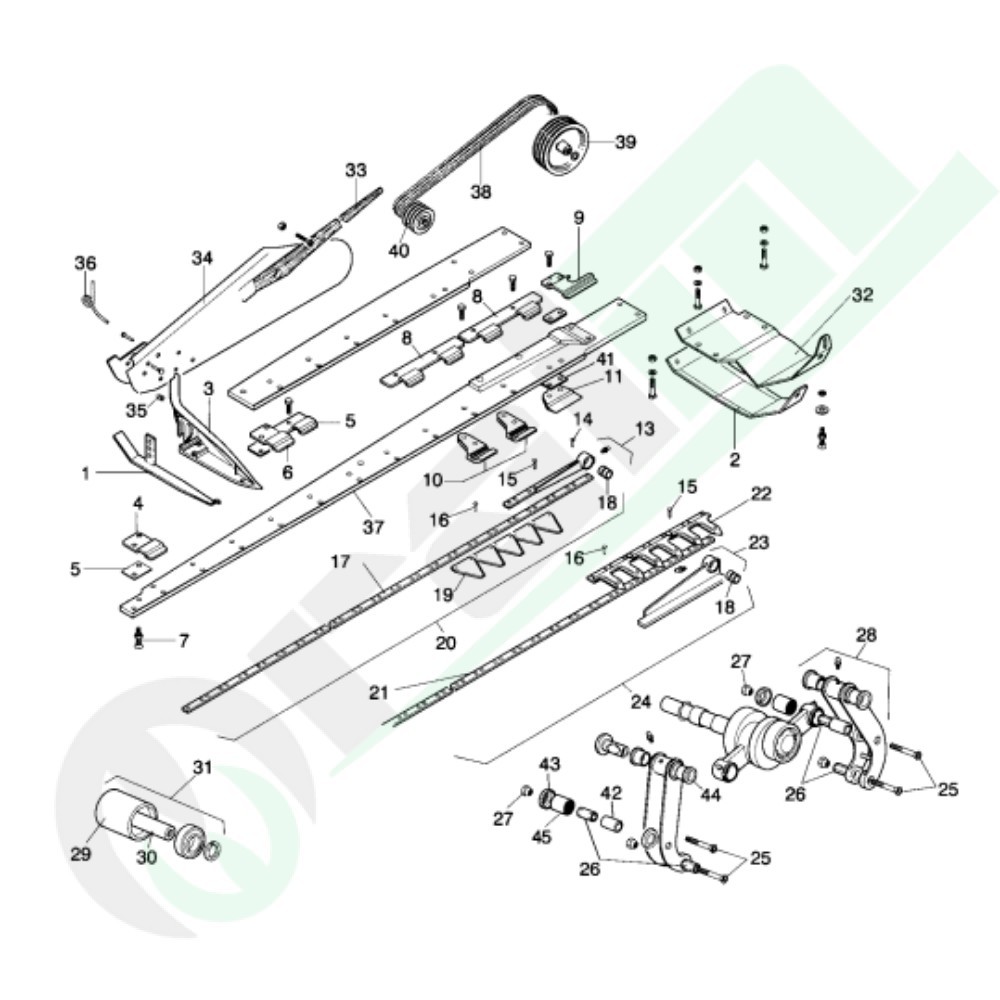

Detailed Components Table
Fig. Code Technical Description Original Ref.
1 45725 External shoe slide 21120038
2 45726 Internal shoe slide 21120035
3 45729 Outer shoe 21120037
4 45487 Outer upper blade guide 21120039
5 45730 1 mm spacer for outer blade guide 21120040
6 45731 Large outer blade guide 21120113
7 45732 Bolt M 10x40 UNI 6104 42180004
8 45486 Double upper blade guide 21120041
9 45488 Inner upper blade guide 21120043
10 45485 Lower blade guide 21120042
11 45489 Inner lower blade guide 21120045
13 45123 Complete section blade head 21120046
14 45036 Rivet Ø 5.2x14 mm 48974012
15 45035 Rivet Ø 5.2x18 mm 48974011
16 45034 Rivet Ø 5.2x20 mm -
16 45580 Rivet Ø 7x20 mm -
17 45483 Section carrier bar 1.75 m - 24 sect. 21120064
17 45749 Section carrier bar 2.05 m - 28 sect. 21120247
18 45457 Bushing for blade head 21120048
19 45122 Cutting blade section Ø 5.5 hole 21120065
20 45121 Complete 24-sect. blade 1.75 m 21120049
20 45745 Complete 28-sect. blade 2.05 m 21120102
21 45484 Tooth carrier bar 1.75 m 21120050
21 45734 Tooth carrier bar 2.05 m 21120104
22 45107 Double tooth Ø 5.5 mm hole 21120066
22 45108 Double tooth Ø 7 mm hole 21120260
23 45124 Complete finger blade head 21120052
24 45120 12-tooth blade 1.75 m 21120053
24 45735 14-tooth blade 2.05 m 21120106
25 45736 M 10 pin fixing screw 21120071
26 45610 Expansion pin 21120069
27 45611 Conical M 10 nut 21120068
28 45612 Hinge blade with bushings 21120070
29 45737 Tensioning roller (min. 2 pcs) 66248107
30 45738 Tensioning roller pin (min. 2 pcs) 21120119
31 45739 Complete tensioner 21120121
32 45981 Inner shoe 21120034
33 46018 Swath stick 20800061
34 46019 Swath axle 20800059
35 46020 Swath axle compression spring 65338001
36 46021 Torsion spring 21120319
37 46026 Reinforced bar (cutting L=1.75m) 21120033
37 46027 Reinforced bar (cutting L=2.05m) 21120098
38 46025 Belt "B.84"=17xL=2134 54233074
39 46022 3-groove driving pulley 21120117
40 46024 2-groove driven pulley 21120074
40 46023 3-groove driven pulley 21120118
41 46162 1 mm spacer 21120044
42 46163 Inner ring 21120137
43 46164 End washer 20970519
44 46190 Bronze bushing 21120067
45 62522 Roller bearing 51127001
