Genuine and Comparative Spare Parts for Gaspardo FB940 Mower

star star star star star_border
Aftermarket
45732

We offer a comprehensive selection of genuine and high-quality comparative spare parts for the Gaspardo FB940 mower. Our range includes essential components such as cutting sections, fingers, knife heads, and hardware manufactured from high-strength steel, ensuring full compatibility with original equipment. These parts are engineered to sustain superior cutting performance and reliability, helping you minimize maintenance downtime and maximize efficiency during peak agricultural operations.

FB940 : 45732
Hurry! only 45 items left in stock.
€1.20
Tax included
COUPON
- € 0,02
Final price: € 1,18
Quantity

High availability
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Original and Comparative Spare Parts for BCS Mower - Lamone and Special Bar Series

Complete list of components for the maintenance and restoration of BCS "Lamone" type cutter bars. Each part is designed to ensure perfect stability and synchronization of the cutting system on large areas.

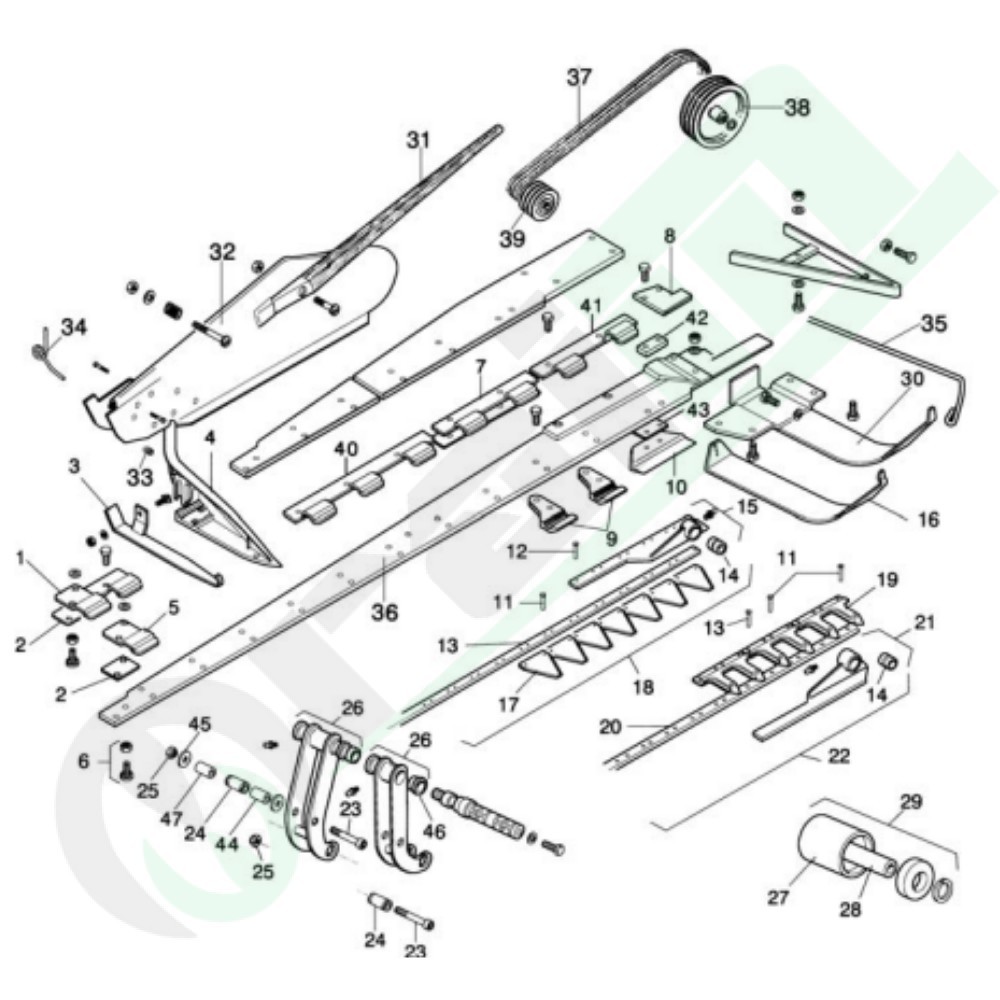

Detailed Components Table
Fig. Code Technical Description Original Ref.
1 45731 External upper blade guide for large bar 21120113
2 45730 1 mm spacer for upper blade guide 21120040
3 45725 External shoe slide 21120038
4 45729 External shoe 21120037
5 45487 Outer upper blade guide 21120039
6 45732 Bolt M 10x40 UNI 6104 42180004
7 45486 Double upper blade guide 21120041
8 45740 Internal upper blade guide 21120312
9 45485 Lower blade guide 21120042
10 45489 Internal lower blade guide 21120045
11 45617 Rivet T.S. 6x13 mm - 2 kg 48974018
12 45618 Rivet T.S. 6x19 mm - 2 kg 48974019
13 46061 Section carrier bar 1.75 m 21120246
13 46062 Section carrier bar 2.05 m 21120247
14 45457 Blade head bushing 21120048
15 45596 Complete section blade head 21120267
16 45742 Internal shoe slide 80 mm width 21120229
16 45982 Internal shoe slide 140 mm width 21120324
17 45122 Blade section Ø 5.5 mm hole 21120065
17 45590 Blade section Ø 6.25 mm hole 21120243
18 45591 24-sect. blade 1.75 m 21120240
18 45607 28-sect. blade 2.05 m 21120241
19 45108 Special double tooth Ø 7 mm holes 21120260
19 45597 Standard double tooth Ø 6.25 mm hole 21120268
20 46063 Tooth carrier bar 1.75 m 21120251
20 46064 Tooth carrier bar 2.05 m 21120252
21 45595 Complete finger bar blade head 21120259
22 45594 12-tooth finger bar 1.75 m G13013861R
22 45608 14-tooth finger bar 2.05 m G13013871R
23 45736 M 10 pin fixing screw 21120071
24 45610 Expansion pin 21120069
25 45611 Conical M 10 nut 21120068
26 45612 Hinge blade with bushings 21120070
27 45737 Tensioning roller (min. 2 pcs) 66248107
28 45738 Tensioning roller pin (min. 2 pcs) 21120119
29 45739 Complete tensioner 21120121
30 45983 Internal shoe 21120311 / G21120323R / G13013020R
30 45984 Internal wide shoe 21120323
31 46018 Swath stick 20800061
32 46019 Swath axle 20800059
33 46020 Swath axle compression spring 65338001
34 46021 Torsion spring 21120319
35 46028 Hinge protection 21120322
36 46030 Reinforced bar (cutting L=1.75 m) 21120315
36 46031 Reinforced bar (cutting L=2.05 m) 21120316
37 46029 Belt "B.93"=17xL=2360 54233093
38 46022 3-groove driving pulley 21120117
39 46023 3-groove driven pulley 21120118
40 46159 Triple upper blade guide 21170065
41 46160 High upper blade guide 21120232
42 46161 10 mm spacer 21120231
43 46162 1 mm spacer 21120044
44 46163 Inner ring 21120137
45 46164 End washer 20970519
46 46190 Bronze bushing 21120067
47 62522 Roller bearing F04010362
