Genuine and Comparative Spare Parts for Gaspardo FBR Mower

star star star star star_border
Aftermarket
46032

We provide a comprehensive selection of genuine and high-quality comparative spare parts for the Gaspardo FBR mower series, specifically engineered for the removable teeth system. Our range includes sectioned and toothed blades of various lengths, manufactured from high-resistance steel to ensure clean cutting and extended operational life. These components facilitate quick and precise maintenance, minimizing downtime and restoring the cutter bar's original performance under all working conditions.

Barra Falciante Gaspardo FBR : 46032
Hurry! only 6 items left in stock.
€9.40
Tax included
COUPON
- € 0,19
Final price: € 9,21
Quantity

High availability
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Original and Comparative Spare Parts for BCS Mower - Blade and Transmission Series

Complete list of components for the maintenance and restoration of BCS cutter bars and transmission systems. Each part is selected to ensure perfect mechanical efficiency and maximum durability of the original cutting system.

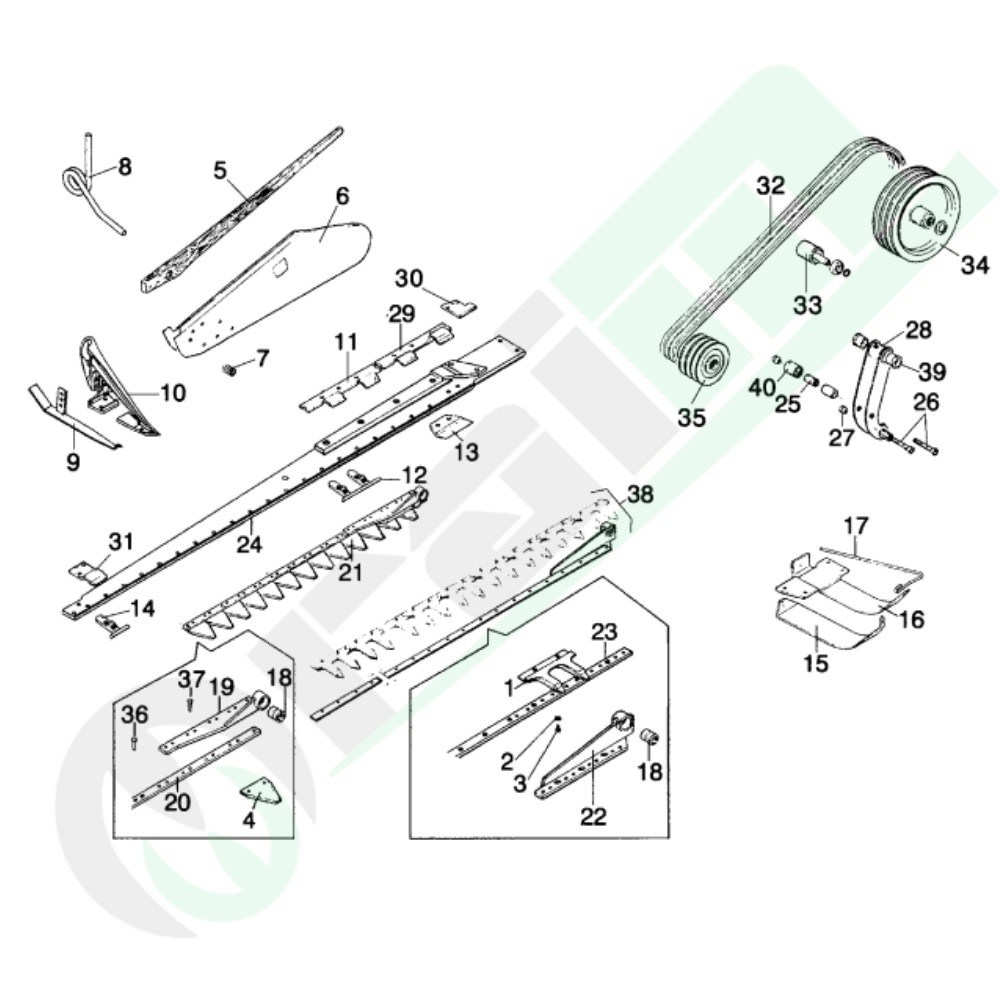

Detailed Components Table
Fig. Code Technical Description Original Ref.
1 46032 Double tooth 13013270 / 13014220
2 46033 Spring washer D.8 44959128
3 46034 Screw 8x1x12 mm 41607011
4 45590 Blade section Ø 6.25 mm hole 21120243
5 46018 Swath stick 20800061
6 46019 Swath axle 20800059
7 46020 Swath axle compression spring 65338001
8 46021 Torsion spring 21120319
9 45725 External shoe slide 21120038
10 45729 External shoe 19200903
11 46035 Double upper blade guide 19203300
12 46036 Double internal blade guide 13013150
13 45489 Internal lower blade guide 21120045
14 46037 Single lower blade guide (for removable tooth) 13013510
15 45982 Internal shoe slide 21120324
16 45984 Internal shoe 21120323
17 46028 Hinge protection 21120322
18 45457 Blade head bushing 21120048
19 46038 Head for section blade (for removable tooth) 13013190
20 46061 Drilled bar 24 sect., 6.4 holes, 1.75 m cut 21120246
20 46062 Drilled bar 28 sect., 6.4 holes, 2.05 m cut 21120247
20 46214 Drilled bar 32 sect., 6.4 holes, 2.35 m cut 21120248
21 46041 Complete blade 24 sect., 1.75 m cut 13013580
21 46042 Complete blade 28 sect., 2.05 m cut 13013590
21 46213 Complete blade 32 sect., 2.35 m cut 13013090
22 46043 Head for blade with removable double teeth 13013230
23 46044 Drilled bar 12 removable double teeth T=1.75 13013300
23 46045 Drilled bar 14 removable double teeth T=2.05 13013310
23 46216 Drilled bar 16 removable double teeth T=2.35 13013040
24 46046 Reinforced bar for removable teeth T=1.75 13013431
24 46047 Reinforced bar for removable teeth T=2.05 13013471
25 45610 Bushing-pin for blades (20x10 L=56) 21120069
26 45736 Conical blade screw (10x60 mm) 21120071
27 45611 Conical blade nut (M10) 21120068
28 45612 Hinge blade with bushings 21120070
29 46048 Double internal upper blade guide 19203310
30 45740 Internal upper blade guide 21120312
31 45487 External upper blade guide 21120039
32 46029 Belt "B93"=17xL=2360 54233093
33 45739 Belt tensioner roller 21120121
34 46022 3-groove driving pulley 21120117
35 46023 3-groove driven pulley 21120118
36 45617 Rivet T.S. 6x13 mm - 2 kg 48974018
37 45618 Rivet T.S. 6x19 mm - 2 kg 48974019
38 46131 Complete 12-tooth blade (removable teeth) 13013771
38 46132 Complete 14-tooth blade (removable teeth) 13013781
38 46215 Complete 16-tooth blade (removable teeth) 13013061
39 46190 Bronze bushing 21120067
40 62522 Roller bearing 51127001
