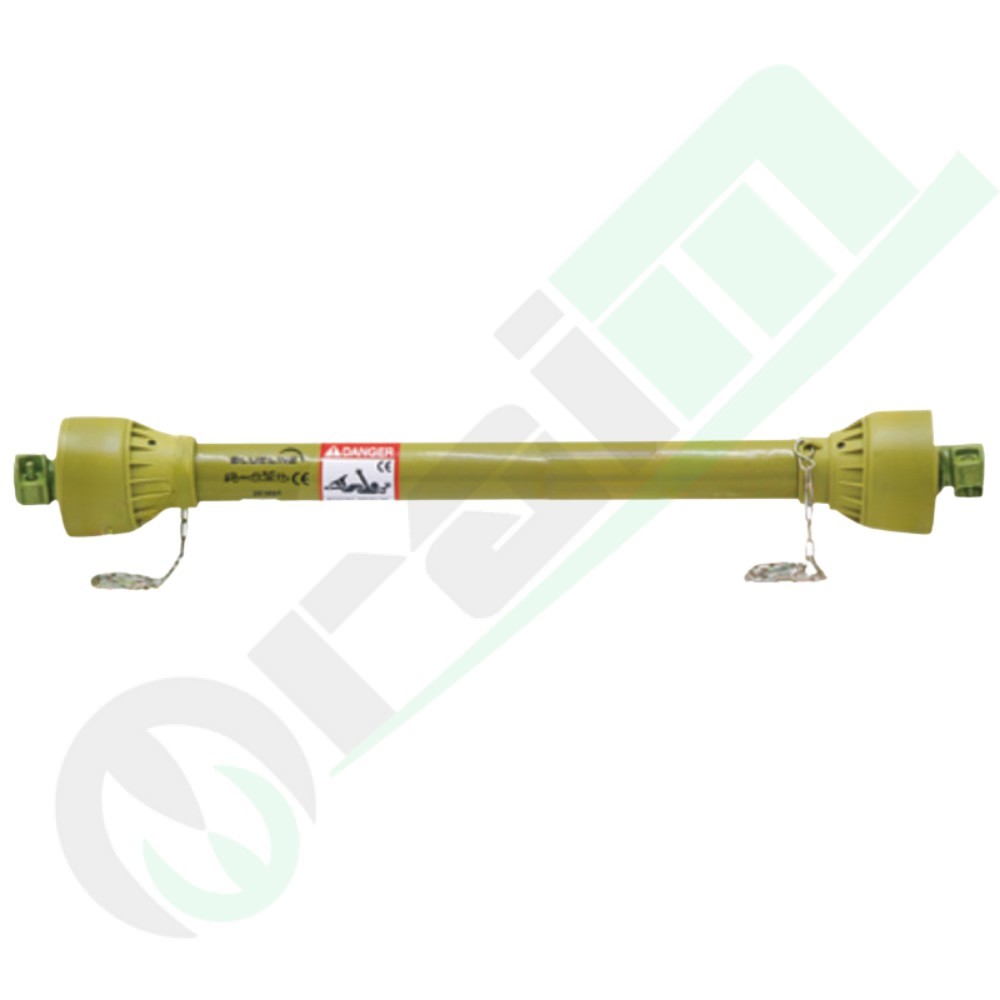

BLUELINE 3770560B465 PTO Shaft Series B4 560mm

3770560B465 BLUELINE PTO Drive Shaft Series B4 Lz 560mm for Tractors up to 35HP

Blueline
3770560B465

BLUELINE B4 Series PTO Drive Shaft - L 560mm (Code 3770560B465)

Hurry! only 2 items left in stock.
€109.90
Tax included
Quantity

Last items in stock
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The BLUELINE B4 Series drive shaft is a high-performance component designed for agricultural machinery requiring significant power transmission. Compared to lower series, the B4 Series utilizes larger 27x74.6 mm cross kits, ensuring superior resistance to mechanical stress and a nominal torque of 460 Nm. The 560 mm length makes it ideal for compact coupling on heavy-duty equipment.

Technical Specifications

Part Number: 3770560B465

Series: B4 (Standard Version)

Total Length (Lz): 560 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 27 x 74.6 mm

Locking System: Push-button / Push-button (P6/P5 Coupling)

Tube Profile: Italian System

Performance Data

Power at 540 rpm: Up to 35 HP (26 kW)

Power at 1000 rpm: Up to 53 HP (39 kW)

Nominal Torque (540 rpm): 460 Nm

Nominal Torque (1000 rpm): 370 Nm

Operating instructions are included. Given the high torque rating of this series, ensure the implement is equipped with appropriate safety systems (shear bolt or clutch) if not integrated into the PTO shaft.
