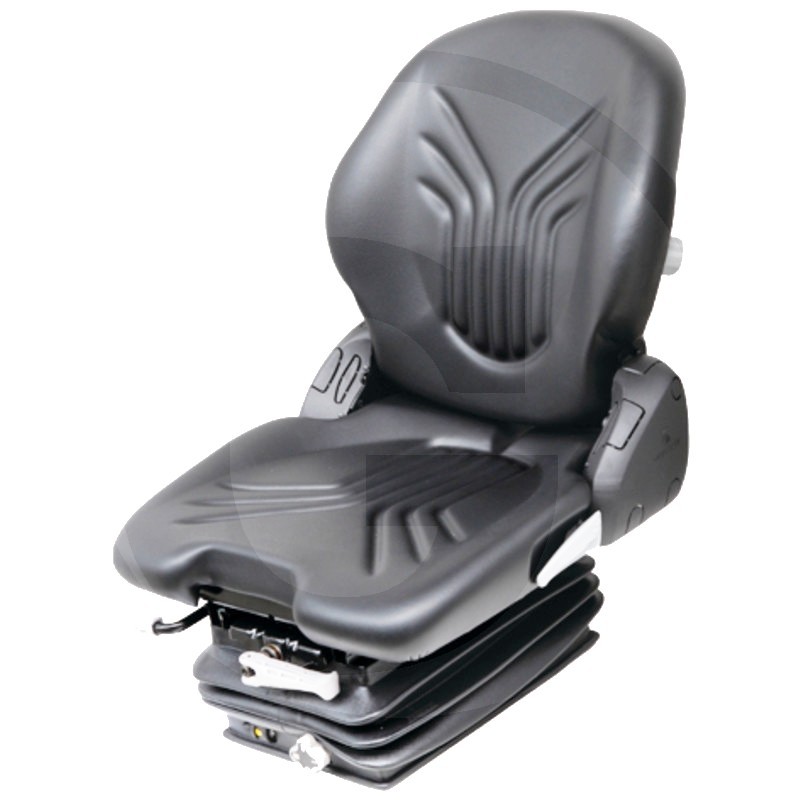

GRAMMER Compacto Basic M seat MSG83/521 Code G1081362

GRAMMER Compacto Basic M MSG83/521 Seat – Mechanical Damping – Code 1081362

Description

The GRAMMER Compacto Basic M seat, model MSG83/521, is designed to ensure comfort, resistance and personalized adjustments for the operator. With mechanical damping and integrated lumbar support, it is ideal for use on tractors, agricultural and industrial machinery where reliability and comfort are essential.

Main features

✔ Mechanical suspension with pantograph suspension

✔ Weight adjustment from 50 to 130 kg

✔ Seat height adjustable on 3 levels (60 mm)

✔ Longitudinal adjustment 180 mm

✔ Mechanical lumbar support

✔ Tilting backrest

✔ Compact and robust structure

✔ Seat width 450 mm

Technical data

• Code: 1081362

• Seat type: MSG83/521

• Damping: Mechanical

• Suspension travel: 80 mm

• Adjustable height: 3 stages / 60 mm

• Seat width: 450 mm

• Total length: 552 mm

• Total height: 694 mm

• Weight adjustment: 50 – 130 kg

• Maximum range: 225 mm

• Longitudinal adjustment: 180 mm

• Headrest: Optional

• Armrest: Optional

• Seat switch: Optional

• Seat belt: Optional

• Seat heating: Optional

• Horizontal suspension: Optional

• Lumbar support: Mechanical

• Cover type: PVC

Version

The Compacto Basic M is designed to offer customizable comfort even with mechanical damping. Three different heights can be adjusted with a side knob, while the weight adjustment is done comfortably while seated, thanks to a front lever with a viewing window for calibration. This always allows for optimal suspension travel.
