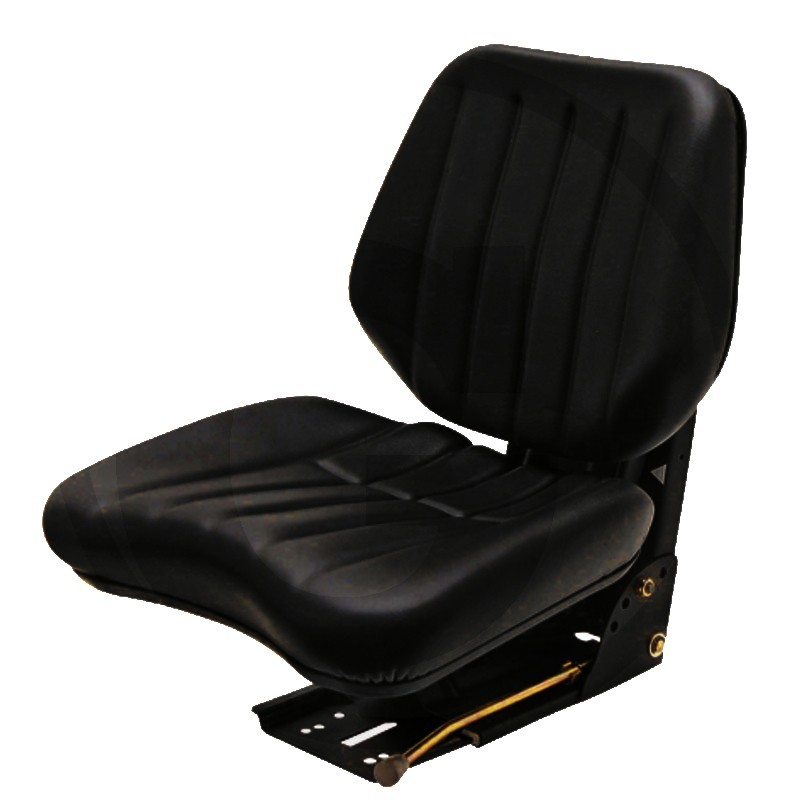

Grammer DS44/1B PVC seat Code G2052165

GRAMMER DS44/1B Seat with Hydraulic Shock Absorbers – PVC Covering – Code G2052165

Description

The GRAMMER DS44/1B seat, code G2052165, is designed to offer reliability, comfort and durability in agricultural, industrial and earthmoving contexts. Equipped with mechanical suspension with hydraulic shock absorbers, it guarantees an ergonomic and adjustable seat, ideal even in the presence of vibrations and impacts.

Main features

✔ Mechanical suspension with hydraulic shock absorbers

✔ Continuous weight adjustment 50 – 120 kg

✔ Longitudinal adjustment 150 mm

✔ Wide 465 mm seat with PVC covering

✔ Compact and resistant structure

✔ Adjustable stirrup angle (Vario): 10° / 16° / 20° / 26° / 36° / 50°

Technical data

• Code: G2052165

• Seat type: DS44/1B

• Damping: Mechanical with hydraulic shock absorbers

• Fabric type: PVC

• Suspension travel: 90 mm

• Longitudinal adjustment: 150 mm

• Weight adjustment: Continuous 50 – 120 kg

• Maximum track: 187 mm

• Seat width: 480 mm

• Cushion width: 465 mm

• Length: 590 mm

• Height: 550 mm

• Armrests: Optional

• Seat belt: Optional

• Seat switch: Optional

• Joystick console: No

Version

The DS44/1B model stands out for its “Vario” bracket angle adjustment, which allows for ergonomics tailored to the operator. It is a robust and compact seat, designed for intense and vibration-prone work environments, where safety and comfort without compromise are required.
