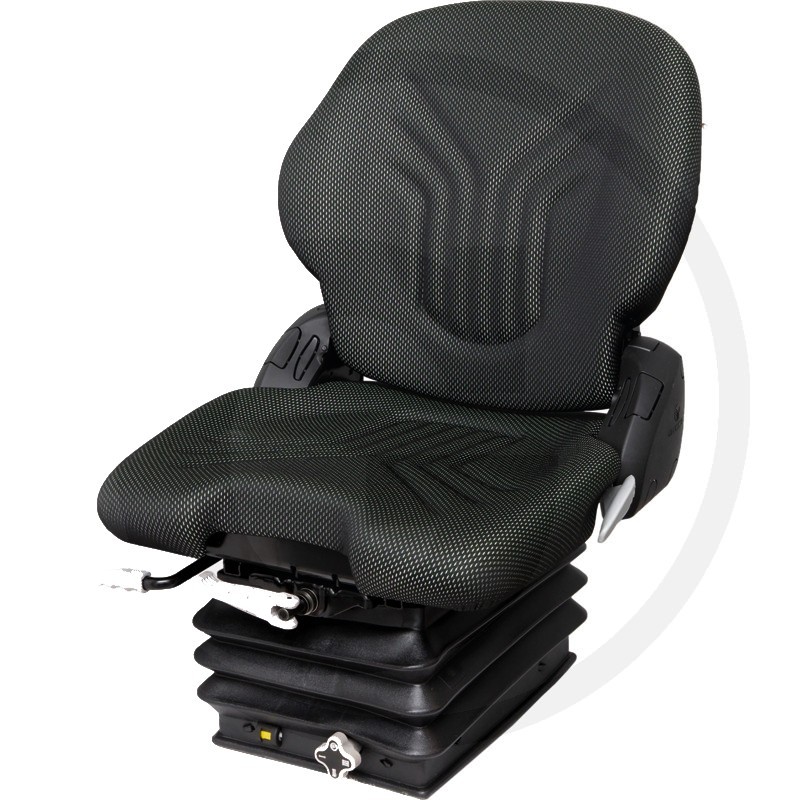

GRAMMER Compacto Basic M seat MSG83/521 Code G1289044

GRAMMER Compacto Basic M MSG83/521 Seat – Fabric Covering – Code 1289044

Description

The GRAMMER Compacto Basic M with code 1289044 is a professional seat for agricultural and industrial vehicles, equipped with mechanical suspension and resistant technical fabric covering. Designed to offer optimal comfort to the operator, it is ideal for long work shifts thanks to its ergonomics and customizable adjustments.

Main features

✔ Mechanical suspension with pantograph suspension

✔ Breathable technical fabric cover

✔ 3-level height adjustment

✔ Weight adjustment while seated (50–130 kg)

✔ Integrated mechanical lumbar support

✔ Backrest tilt adjustment

✔ Seat width 450 mm

✔ Compatible with numerous optional accessories

Technical data

• Code: 1289044

• Seat type: MSG83/521

• Damping: Mechanical

• Fabric type: Fabric

• Suspension travel: 80 mm

• Height adjustment: 3 stages (60 mm total)

• Weight adjustment: 50 – 130 kg

• Longitudinal adjustment: 180 mm

• Maximum span: 225 mm

• Seat width: 450 mm

• Total length: 552 mm

• Total height: 694 mm

• Headrest: Optional

• Armrest: Optional

• Seat switch: Optional

• Seat belt: Optional

• Seat heating: Optional

• Horizontal suspension: Optional

• Lumbar support: Mechanical

Version

The Compacto Basic M combines compactness and comfort: the side knob allows for 3-position height adjustment, while a front lever allows weight adjustment even when seated. A viewing window simplifies seat calibration, always maintaining the ideal suspension travel for the operator.
