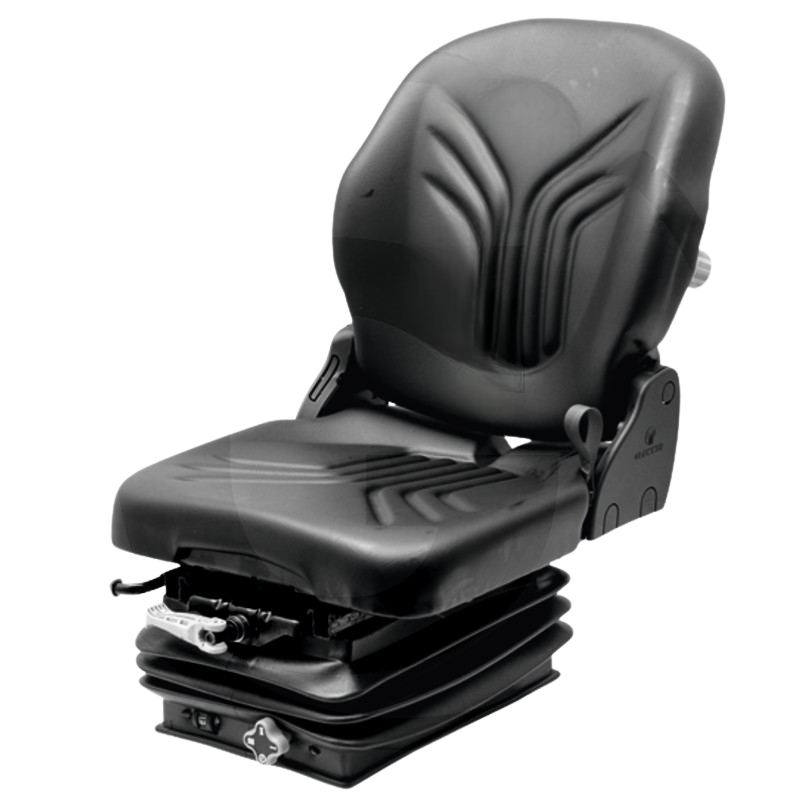

GRAMMER Compacto Basic S Seat – MSG83/511 – Code G1081364
Description
The GRAMMER Compacto Basic S seat (MSG83/511) is designed to offer comfort and adjustability, even in difficult working environments. With mechanical suspension, it offers lumbar support and individual adjustment options for an optimal fit. The height and tilt adjustment of the backrest allows for a customized sitting position.
Key Features
✔ Continuous height adjustment
✔ Mechanical suspension with 80 mm spring travel
✔ 210 mm longitudinal adjustment
✔ Mechanical lumbar support
✔ Adjustable backrest angle
✔ 400 mm seat width in PVC
✔ Front weight adjustment for comfortable sitting
✔ Easy-to-read window for weight
Technical data
• Code: G1081364
• Seat type: MSG83/511
• Damping: Mechanical
• Fabric type: PVC
• Spring travel: 80 mm
• Longitudinal adjustment: 210 mm
• Height adjustment: 3 positions, adjustable via sliding rotary knob
• Seat width: 400 mm
• Upholstery width: 400 mm
• Seat height: 627 mm → 687 mm
• Length: 501 mm
• Lumbar support: Mechanical
• Backrest angle: Adjustable
• Track: Up to 225 mm
• Armrests: Optional
• Headrest: Optional
• Seat heating: Optional
• Seat switch: Optional
Version
The Compacto Basic S stands out for its ability to adjust the seat height and lumbar support, making it ideal for prolonged use without compromising comfort. The mechanical structure is designed to withstand the vibrations typical of industrial and agricultural machinery.
