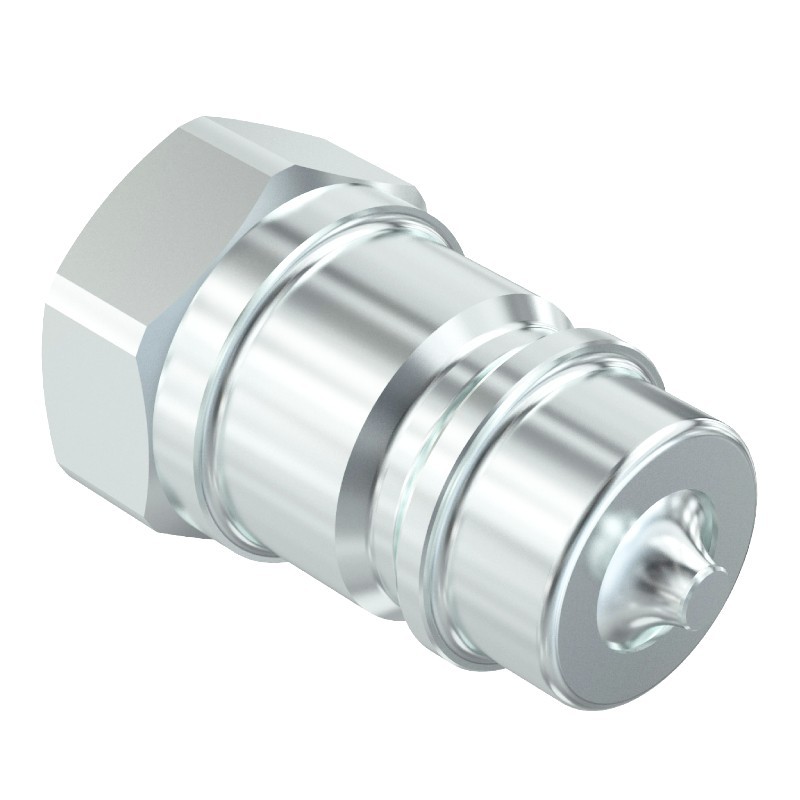

Faster NV Series Male Quick Coupling 1/4" BSP DN06

Faster NV Series Male Quick Coupling 1/4" BSP DN06

Faster
86001006

Faster NV Series Male Quick Coupling 1/4" BSP DN06

Hurry! only 5 items left in stock.
€5.50
Tax included
Quantity

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Faster Male Quick Coupling Series NV 1/4" BSP DN06

Features:

Nominal width: DN 06

Series: 1

Threaded connection: 1/4" BSP

Flow rate (l/min): 15

PN (bar): 350

A (mm): 11.5

C (mm): 34.7

H (mm): 14.1

AC1 (mm): 19

Weight: 38 g

BSP, NPT, UNF, internal thread

Agricultural use

Faster standard. Only for NV-12 according to ISO 7241-1 A

Material: steel, chromium VI-free coating

Temperature range: -25°C up to 125°C.

Connect / disconnect only by pulling back the clamping sleeve, no pull-off function.

Not pressurized.

Ref. Orig.: NV14GASM

: 86001006
Hurry! only 5 items left in stock.
