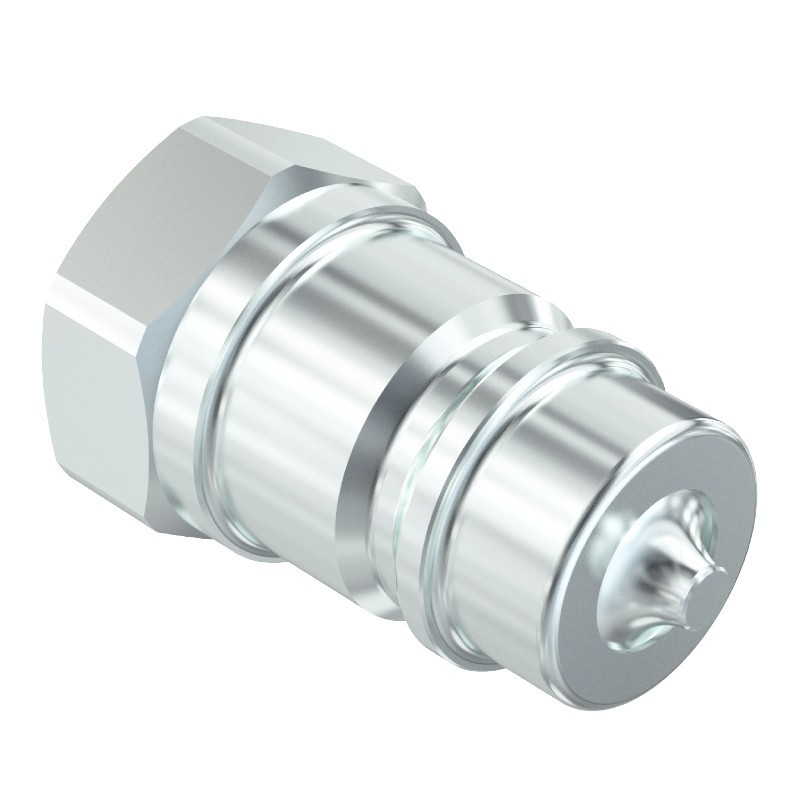

Faster NV Series 3/4" UNF DN12 Male Quick Coupling

Faster NV Series 3/4" UNF DN12 Male Quick Coupling

Faster
86003903

Faster NV Series 3/4" UNF DN12 Male Quick Coupling

Hurry! only 2 items left in stock.
€9.00
Tax included
Quantity

Last items in stock
Add to Compare
Add to Wishlist
  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Faster Male Quick Coupling Series NV 3/4" UNF DN12

Features:

Nominal width: DN 12

Series: 6

Threaded connection: 3/4" UNF

Flow rate (l/min): 75

PN (bar): 300

A (mm): 17.6

C (mm): 44

H (mm): 20.5

AC1 (mm): 27

Weight: 92 g

BSP, NPT, UNF, internal thread

Agricultural use

Faster standard. Only for NV-12 according to ISO 7241-1 A

Material: steel, chromium VI-free coating

Temperature range: -25°C up to 125°C.

Connect / disconnect only by pulling back the clamping sleeve, no tear-off function.

Not pressurized.

Ref. Orig.: NV12-12SAEM

: 86003903
Hurry! only 2 items left in stock.
