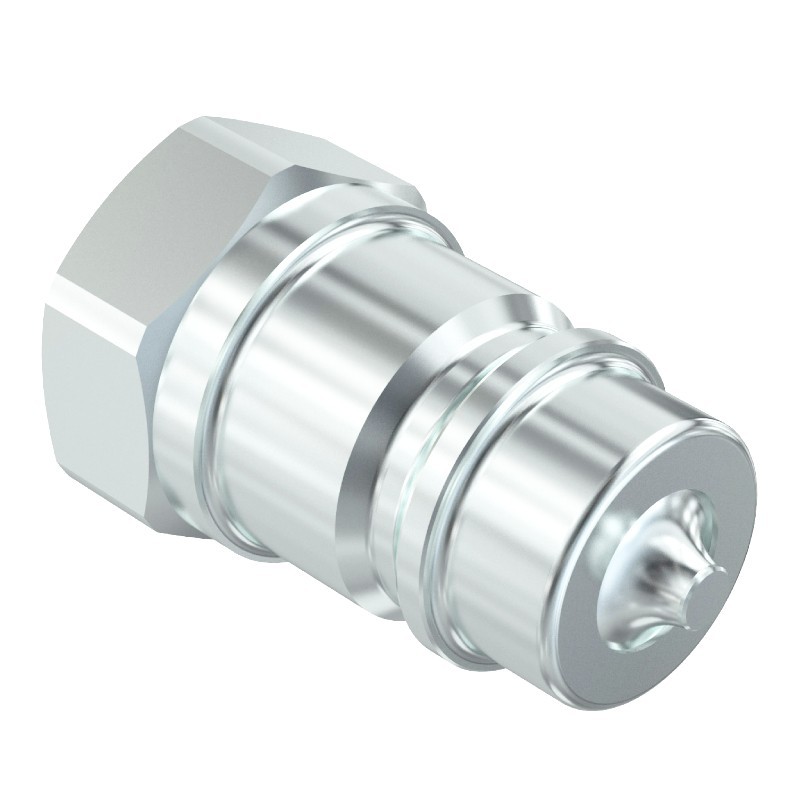

Faster Quick Male Coupling NV Series M22x1.5mm DN12

Faster Quick Male Coupling NV Series M22x1.5mm DN12

Faster
86003912

Faster Quick Male Coupling NV Series M22x1.5mm DN12

Out of Stock
€9.00
Tax included
Quantity

Non disponibile
Add to Compare
Add to Wishlist
  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Male Quick Coupling Faster Series NV M22x1.5mm DN12

Features:

Nominal width: DN 12

Series: 3

Threaded connection: M22 x 1.5 mm

Flow rate (l/min): 75

PN (bar): 300

A (mm): 20.4

C (mm): 44

H (mm): 20.5

AC1 (mm): 27

Weight: 129 g

BSP, NPT, UNF, internal thread

Agricultural use

Faster standard. Only for NV-12 according to ISO 7241-1 A

Material: steel, chromium VI-free coating

Temperature range: -25°C up to 125°C.

Connect / disconnect only by pulling back the clamping sleeve, no pull-pull function.

Not pressurized.

Ref. Orig.: NV2215M

: 86003912
Out of Stock
