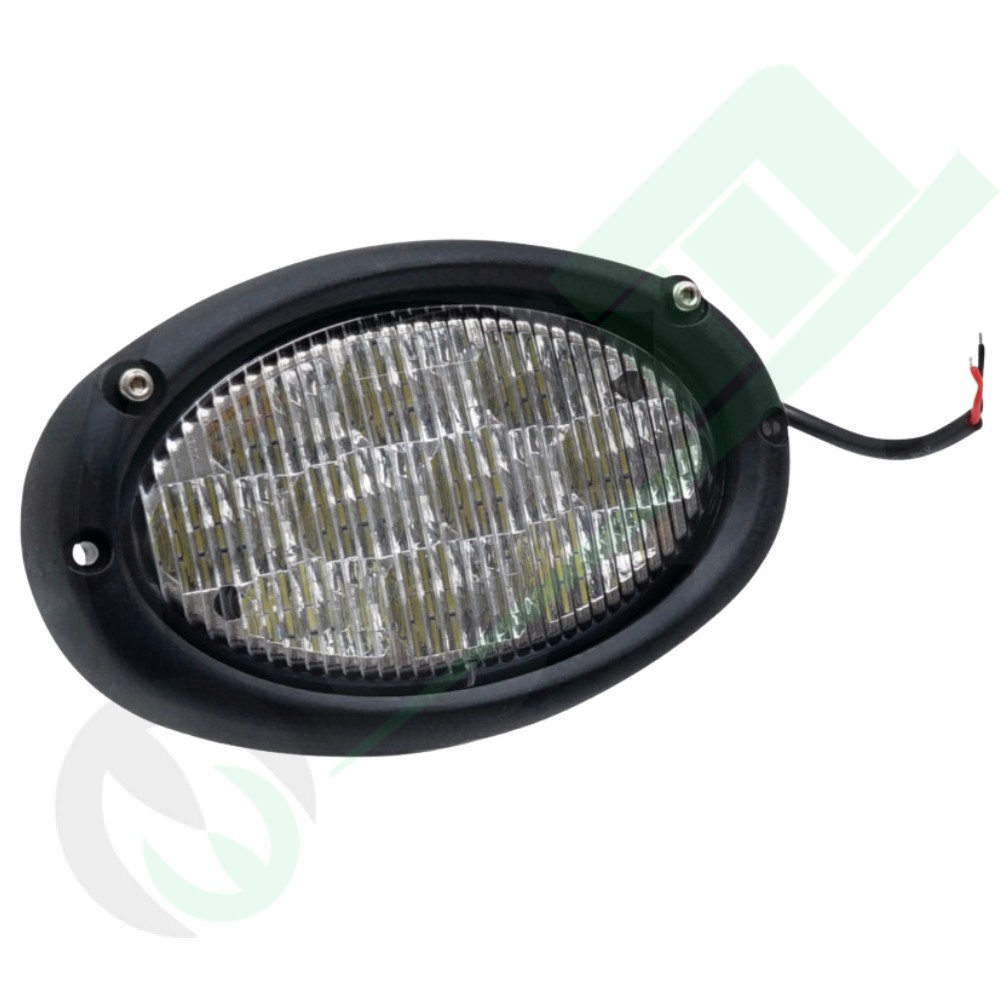

GRANIT Recessed Oval LED Work Light 7070010310 | 30W | 2900 lm | John Deere MF | Replaces RE271574

The GRANIT LED work light 7070010310 is an oval lamp designed for recessed mounting, offering powerful and defined long-range illumination with 2900 effective lumens and only 30 Watts of consumption. The aluminum housing and stainless steel bracket, combined with the IP67 / IP6K9K protection, ensure reliability and resistance to extreme temperatures and harsh environmental conditions. It is applicable as a replacement part for a wide range of John Deere, Massey Ferguson, and Kubota tractors.

Technical Data

• Part Number: 7070010310 (GRANIT).
• Light Function: Long range illumination.
• Nominal Voltage (V): 12 / 24.
• Voltage (Volt): 10 - 30.
• Power Consumption (W): 30.
• LED Quantity: 10.
• Effective Luminous Flux (lm): 2900.
• Theoretical Luminous Flux (lm): 4850.
• Light Color (K): 5000 - 6500.
• Lamp Type: LED (Bulbs included: Yes).
• Protection Type: IP67 / IP6K9K.
• Temperature Range (°C): -40 / +50.
• Control Mark: ECE R10.
• EMC: CISPR25 Class 3.

Dimensions and Mounting

• Shape: Oval.
• Dimensions L x H x D (mm): 166 x 106 x 65.
• Width (mm): 166.
• Height (mm): 106.
• Depth (mm): 65.
• Light Aperture (mm): 134 x 81.
• Mounting Method: Recessed; M4.
• Connection: Open cable ends, tinned (red + / black -).
• Cable Length (mm): 400.
• Material: Housing: Aluminum; lens: Plastic material, Mounting bracket: Stainless steel.

Original References

• RE271574
• 87374601

Compatible Machine Models (Brand - Series - Model)

• JOHN DEERE - 8R/8RT Series:
  • 8225R, 8245R, 8270R, 8295R, 8295RT, 8310RT, 8320R, 8320RT, 8335RT, 8345R, 8345RT, 8360RT
• JOHN DEERE - 8020/8020T Series:
  • 8120, 8120T, 8220, 8220T, 8320, 8320T, 8420, 8420T, 8520, 8520T
• JOHN DEERE - 8030/8030T Series:
  • 8130, 8230, 8230T, 8330, 8330T, 8430, 8430T, 8530
• JOHN DEERE - 9020/9020T Series:
  • 9120, 9220, 9320, 9320T, 9420, 9420T, 9520, 9520T, 9620, 9620T
• JOHN DEERE - 9030/9030T Series:
  • 9230, 9330, 9430, 9430T, 9530, 9530T, 9630, 9630T
• KUBOTA - BX Series:
  • BX 2350
• MASSEY FERGUSON - 400 Series:
  • 445, 455, 460
• MASSEY FERGUSON - 500 Series:
  • 583
• MASSEY FERGUSON - 600 Series:
  • 650, 680
• MASSEY FERGUSON - 1004 Series:
  • 1004, 1104
• MASSEY FERGUSON - 5300 Series:
  • 5340, 5355, 5360, 5365
• MASSEY FERGUSON - 5400 Series:
  • 5425, 5435, 5445, 5455, 5460, 5465, 5470
• MASSEY FERGUSON - 6400 Series:
  • 6445, 6455, 6460, 6465, 6470, 6475, 6480, 6485, 6485 Tier 3, 6490, 6490 Tier 3, 6495, 6495 Tier 3, 6497, 6497 Tier 3, 6499 Tier 3
• MASSEY FERGUSON - 7100 Series:
  • 7140, 7150, 7170, 7180
• MASSEY FERGUSON - 7400 Series:
  • 7465, 7475, 7480, 7485, 7490, 7495
• MASSEY FERGUSON - 8400 Series:
  • 8450 Tier 3, 8450 Tier2, 8460 Tier 3, 8460 Tier2, 8470 Tier 3, 8470 Tier2, 8480 Tier 3, 8480 Tier2
• NEW HOLLAND - TC Series:
  • TC5040 E3 (1/07-), TC5050 E3 1/07-), TC5070 E3 (1/07-), TC5070 E4 (9/11-), TC5080 E3 (1/07-), TC5080 E4 (9/11-)
