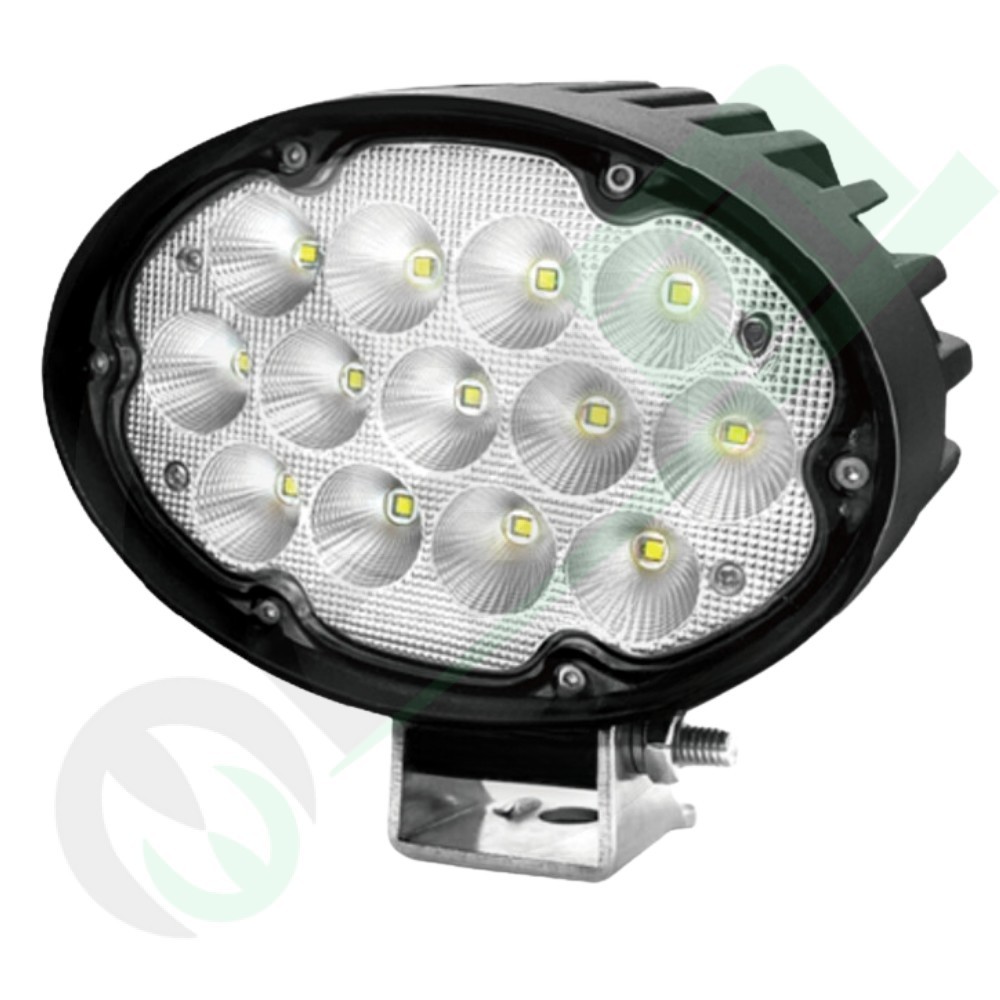

GRANIT Oval LED Work Light 18525255 | 65W | 3800 lm | John Deere | Replaces AL154553

The GRANIT LED work light 18525255 provides powerful and reliable long-range illumination for use on agricultural and construction machinery. Featuring 13 high-intensity LEDs and an IP6K9K protection rating, it is designed to withstand harsh working environments. The high luminous efficacy (3800 effective lumens) and 6000 K light color ensure optimal visibility during nighttime work.

Technical Data

• Part Number: 18525255 (GRANIT).
• Light Function: Long range illumination.
• Nominal Voltage (V): 12 / 24.
• Power (Watt): 65.
• LED Quantity: 13.
• Effective Luminous Flux (lm): 3800.
• Theoretical Luminous Flux (lm): 5200.
• Light Color (K): 6000.
• Lamp Type: LED (Bulbs included: Yes).
• Protection Type: IP6K9K.
• Control Mark: ECE R10 / RoHS / CE / UKCA.
• EMC: CISPR 25 Class 3.

Dimensions and Mounting

• Dimensions L x H x D (mm): 166 x 115 x 95.
• Frame Size (mm): 148.
• Shape: Oval.
• Mounting: Mounting.
• Connection: H9.
• Cable Length (mm): 120.

Original References

• AL154553

Compatible Machine Models (Brand - Series - Model)

• JOHN DEERE - 5M Series:
  • 5070M, 5080M, 5090M, 5100M
• JOHN DEERE - 5020/5020N Series:
  • 5620, 5720, 5820
• JOHN DEERE - 6015 Series:
  • 6415
• JOHN DEERE - 6020/6020SE Series:
  • 6220, 6320, 6420, 6520, 6620, 6920
  • SE6020, SE6120, SE6220, SE6320, SE6420, SE6520, SE6620, SE6920
