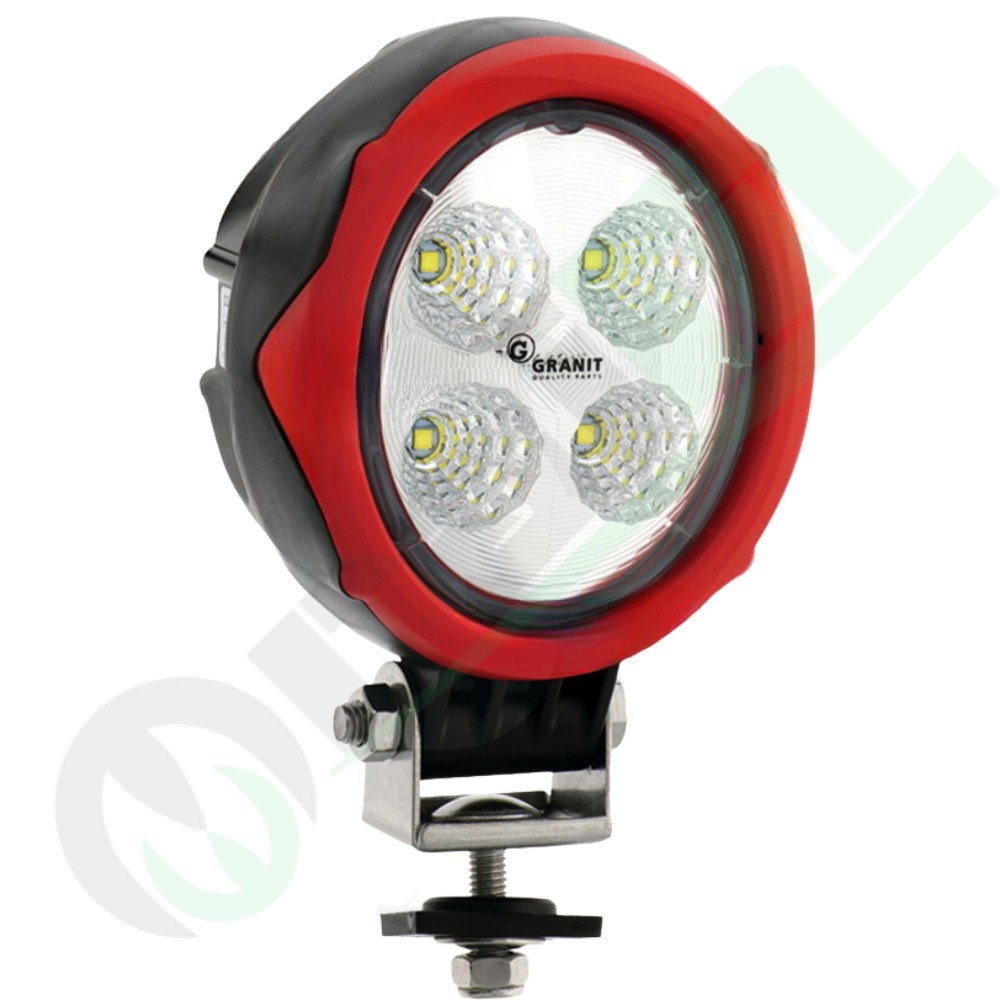

GRANIT Oval LED Work Light 7070010251 | 18W | 1200 lm | FENDT JOHN DEERE | Replaces RE219708

The GRANIT LED work light 7070010251 is a robust and universal oval auxiliary lamp designed to provide long-range illumination in harsh operating conditions. With an IP67 / IP69K protection rating, it is ideal for use on Fendt and John Deere tractors and combines. It features low power consumption (18 W) and a high effective luminous flux (1200 lm).

Technical Data

• Part Number: 7070010251 (GRANIT).
• Light Function: Long range illumination.
• Nominal Voltage (V): 12 / 24.
• Voltage (Volt): 10 - 30.
• Power Consumption (W): 18.
• LED Quantity: 4.
• Effective Luminous Flux (lm): 1200.
• Theoretical Luminous Flux (lm): 1550.
• Light Color (K): 5700 - 7000.
• Lamp Type: LED (Bulbs included: Yes).
• Protection Type: IP67 / IP69K.
• Temperature Range (°C): -40 / +80.

Dimensions and Mounting

• Dimensions L x H x D (mm): 104 x 120 x 81.
• Frame Size (mm): 154.
• Shape: Oval.
• Mounting Position: Universal.
• Mounting Method: Screw mounting, vertical / suspended.
• Connection: Open cable ends.
• Cable Length (mm): 500.
• Pole Quantity: 2.
• Material: Housing: Plastic material, aluminum; lens: Plastic material.
• Additional Information: Red frame, interchangeable (M8).

Original References

• 1GM 996 136-361
• RE219708
• AL150478
• RE233263

Compatible Machine Models (Brand - Series - Model)

• FENDT - Fendt 200 Series:
  • 206 S (Typ 326), 206 V+F (Typ 210)
  • 207 (Typ 330), 207 S (Typ 327), 207 V+F (Typ 212, Typ 260)
  • 208 (Typ 331), 208 P (Typ 221), 208 S (Typ 328), 208 V+F (Typ 213, Typ 261)
  • 209 (Typ 332), 209 P (Typ 222, Typ 272), 209 S (Typ 329), 209 V+F (Typ 214, Typ 262)
  • 210 (Typ 333), 210 P (Typ 273), 210 V+F (Typ 263)
  • 211 (Typ 334), 211 P (Typ 274), 211 V+F (Typ 264)
• FENDT - Fendt 800 Series:
  • 819 (Typ 832), 822 (Typ 833), 824 (Typ 834), 826 (Typ 835), 828 (Typ 836)
• FENDT - Fendt 900 Series:
  • 922 (Typ 919), 924 (Typ 922, Typ 941)
  • 927 (Typ 925, Typ 942), 930 (Typ 928, Typ 943)
  • 933 (Typ 931, Typ 944), 936 (Typ 934, Typ 945)
  • 939 (Typ 946)
• JOHN DEERE - 5E / 5M / 5R/5RN / 6D / 6E / 6M / 6MC Series:
  • 5055E, 5075E, 5083E, 5083EN, 5085E, 5093E, 5093EN, 5101E, 5101EN
  • 5065M, 5070M, 5075M, 5080M, 5085M, 5090M, 5095M, 5100M, 5105M, 5115M
  • 5080R, 5080RN, 5090R, 5090RN, 5100R, 5100RN
  • 6100D, 6105D, 6110D, 6115D, 6125D, 6130D, 6140D
  • 6105E
  • 6105M, 6110M, 6115M, 6120M, 6125M, 6130M, 6135M, 6140M, 6145M, 6150M, 6155M, 6170M, 6175M, 6195M
  • 6090MC
• JOHN DEERE - 3000 / 3015 / 3020 / 5020 / 5025 Series:
  • 3800
  • 3215, 3415
  • 3220, 3420
  • 5320, 5520
  • 5220, 5620, 5720, 5820 (5020/5020N Series)
  • 5625 (5025/5025N Series)
  • 5080, 5090
• JOHN DEERE - 6015 / 6020 / 6030 Series:
  • 6215 (PC4367), 6715
  • 6120, 6120 (PC4356), 6220, 6320, 6320 (PC4357), 6420, 6420 (PC4357), 6420S, 6520, 6620, 6820, 6920, 6920S
  • 6130, 6230, 6230 PR, 6330, 6330 PR, 6430, 6430 PR, 6530, 6530 PR, 6534, 6534 PR, 6630, 6630 PR, 6830, 6830 PR, 6930, 6930 PR
• JOHN DEERE - 7000 / 7030 / 7050 Series:
  • 7200, 7300, 7400, 7500, 7700, 7800
  • 7130, 7230, 7430 PR, 7530 PR
  • 7250, 7350, 7450, 7550, 7750, 7850, 7950
• JOHN DEERE - Combines (C / CTS / T / W / WTS Series):
  • C 670
  • CTS 9780
  • T550, T560, T660, T670
  • WTS 9540, 9540i, 9560, 9560i, 9580, 9580i, 9640, 9660, 9680
• NEW HOLLAND - CL / CS 500 / CS 6000 / CSX 7000 Series:
  • CL560, CL6060
  • CS520, CS540, CS640, CS660
  • CS6050, CS6060, CS6070, CS6080, CS6090
  • CSX7040 (9/08-), CSX7050 (1/08-8/11), CSX7060 (9/06-8/08, 9/08-), CSX7070 (9/08-), CSX7080 (9/06-8/08, 9/08-)
