Left Curved Rotary Tiller Blade for Badalini - Part Number: 55002

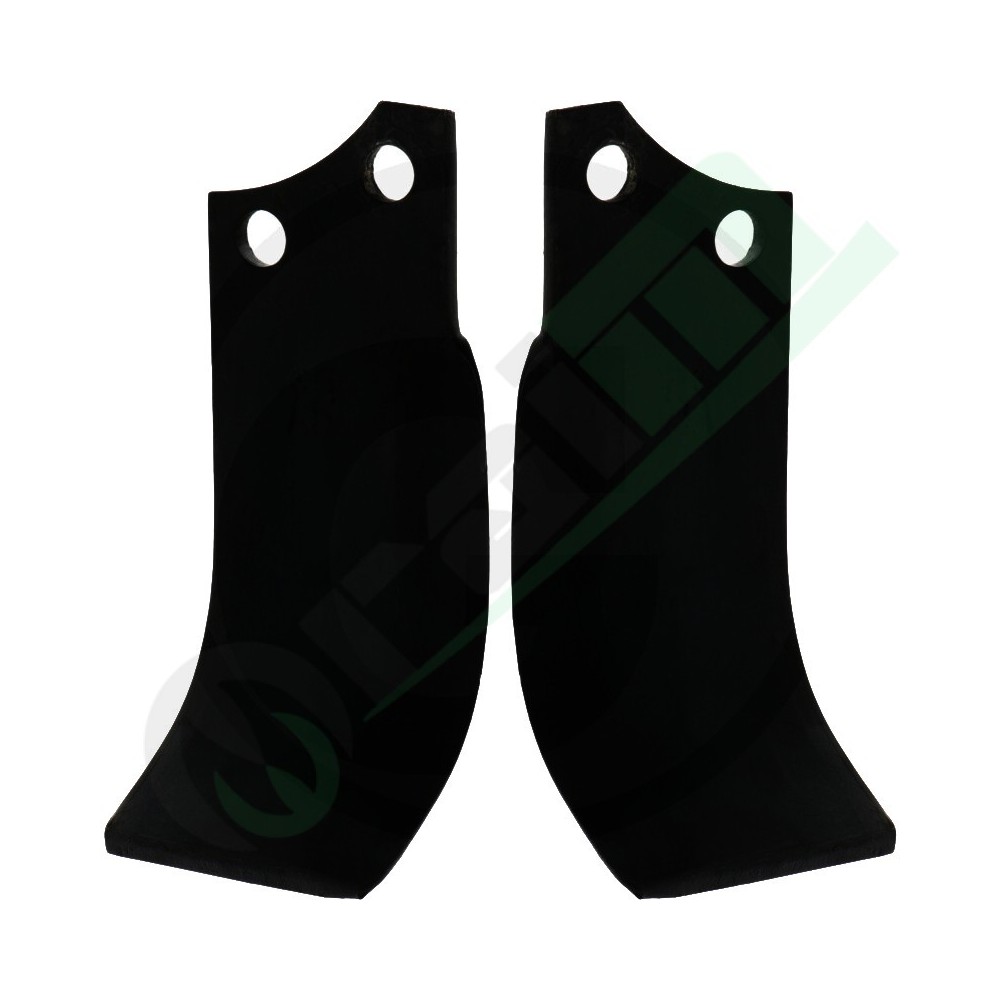

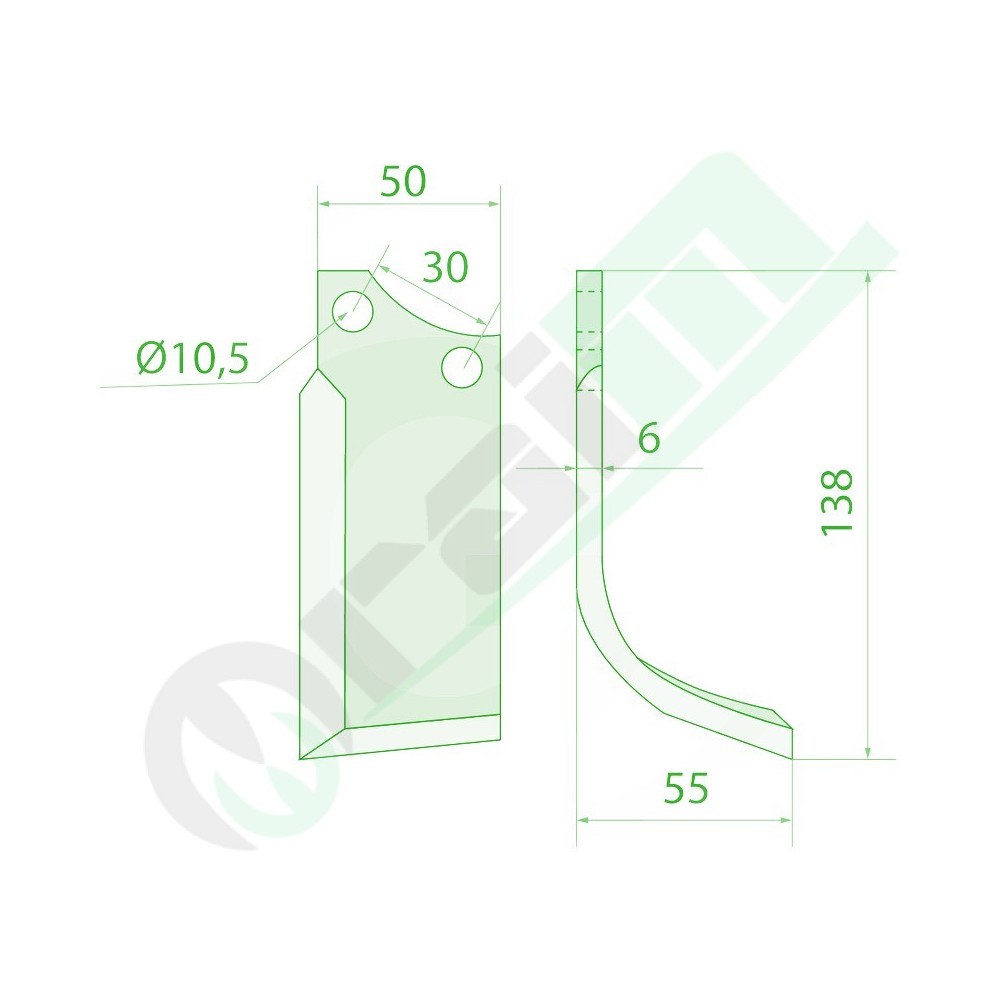

The Left Curved Rotary Tiller Blade (part number 55002, flat steel section 50 × 6 mm, hole diameter Ø 10.5 mm with 30 mm hole center distance, overall working dimensions 55 × 138 mm) is an abrasive-resistant ground engagement wear part engineered for rotary tillers and inter-row cultivators. Designed with a left-hand curvature to balance the rotor cutting pattern alongside the matching right-hand blade, it is adaptable to Badalini machinery, specifically engineered for the Multifresa F.777 rotary tiller.

Key Features & Benefits

• Forged Heat-Treated Boron Steel: Forged from high-grade alloy steel treated for optimal surface hardness and impact resilience against rocks, roots, and abrasive soils.
• Optimized Left Curved Profile: The aerodynamic left-hand curvature ensures smooth soil flipping, efficient vegetation incorporation, and low power draft from the tractor PTO.
• Precision Flange Mounting: Twin 10.5 mm bolt holes spaced 30 mm center-to-center match original equipment rotor flanges for a tight, vibration-resistant fitment.
• Field Versatility: Suited for vegetable gardening, row-crop weed control, and seedbed soil conditioning with Badalini Multifresa equipment.

Technical Specifications

Application Table & Compatible Implements

Installation Technical Note: Mount using class 8.8 or higher fasteners with lock nuts. Re-check the torque of all bolts after the first operating hours to prevent looseness resulting from vibration and ground impacts.
