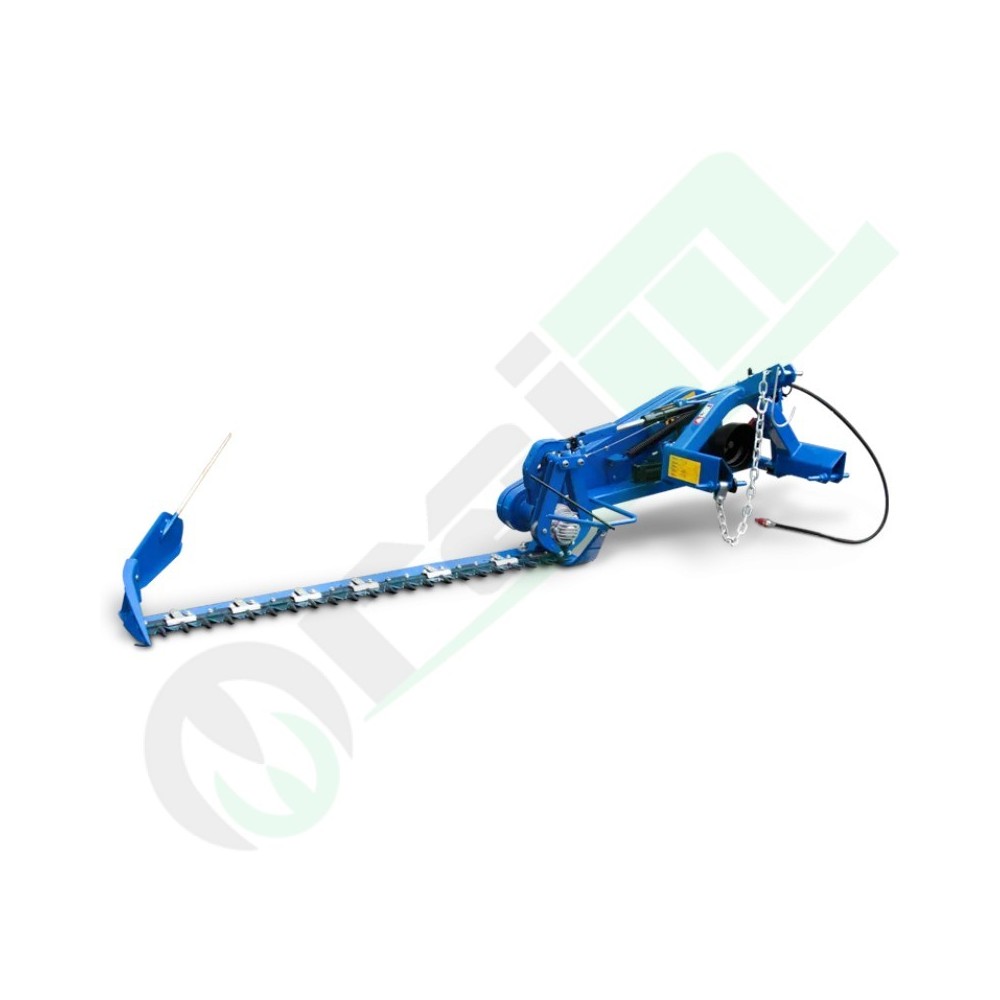

Spare Parts for BCS Duplex GOLD Motor Mower with Detailed Exploded Views
Find all spare parts for your BCS Duplex GOLD motor mower. Dedicated section with exploded technical diagrams to easily identify original and compatible components.
Read more ↓€0.20VAT incl.
⚡ Limited-time deal
00days
:00hrs
:00min
:00sec
Coupon
-€0.00
-2% sul carrello
Sconto extra riservato ai clienti registrati
Accedi per sbloccare il codicePrezzo finale con coupon: €0.20
Duplex GOLD
Not sure it fits?Message us with your tractor model
WhatsAppSecure paymentsEasy returnsFree shipping over €30 + VAT
Description
Complete list of original components for the maintenance and restoration of BCS Duplex GOLD cutter bars. Each part is manufactured with certified materials to ensure perfect synchronization of the dual-action blade system.
Detailed Components Table
| Fig. | Code | Technical Description | Original Ref. | |
|---|---|---|---|---|
| 1 | 45754 | Screw 8x30 Uni 5739 8G | 31112152 | |
| 2 | 45785 | Super Washer 8 DIN 6796 ZNT | 31421083 | |
| 3 | 46095 | XL Outer Upper Blade Guide | 56328715 | |
| 4 | 46086 | Spring Washer B 8.4 DIN 137 | 31423084 | |
| 5 | 45763 | Short Intermediate Strip | 56127173 | |
| 6 | 46096 | XL Lower Lateral Blade Guide 1.68 | 56328712 | |
| 7 | 46094 | XL Lower Lateral Blade Guide 1.68 | 56328713 | |
| 8 | 46084 | Nut M10 UNI 5588 6S | 31211100 | |
| 9 | 45791 | Super Washer 10 DIN 6796 ZNT | 31421101 | |
| 10 | 46085 | Stud Bolt M10x37x15x19 8G | 31312101 | |
| 11 | 45784 | Lower Guide | 52158589 | |
| 12 | 46083 | TE C/F Screw M8x35 DIN 6921 8G | 31112165 | |
| 13 | 46103 | Guide Bushing | 56428758 | |
| 14 | 46109 | Special Blade Holder Screw | 58028760 | |
| 15 | 46104 | Self-Adjusting Blade Holder 100 | 56528756 | |
| 16 | 45762 | Upper Lateral Blade Guide | 56327723 | |
| 17 | 46099 | 2F Leaf Spring | 56328757 | |
| 18 | 45767 | Short Intermediate Strip | 56127724 | |
| 19 | 46089 | XL Intermediate Strip Th.3 | 56128716 | |
| 20 | 45802 | Lower Blade Guide | 56327169 | |
| 21 | 45801 | Nut M20x1.5 UNI 588 8G | 31231184 | |
| 22 | 45800 | Super Washer 20 DIN 6796 ZNT | 31421060 | |
| 23 | 46105 | Stud Bolt M20x1.5 - 10K | 58027318 | |
| 24 | 46106 | Short Stud Bolt M20x1.5 - 10K | 58028070 | |
| 25 | 46100 | GOLD Bar m 1.68 | 56328903 | |
| 26 | 46101 | GOLD Bar m 1.82 | 56328904 | |
| 27 | 46102 | GOLD Bar m 2.12 | 56328905 | |
| 28 | 45036 | Rivet TC 5.3x14 | 33125314 | |
| 29 | 46107 | XL Blade Section Th= 2.5 | 58028096 | |
| 30 | 46111 | Reg. Blade XL M 1.68 (22 sec.) | 58028911 | |
| 31 | 46110 | Reg. Blade XL M 1.82 (24 sec.) | 58028910 | |
| 32 | 46112 | Reg. Blade XL M 2.12 (28 sec.) | 58028912 | |
| 33 | 46113 | Gold Tooth C.pt | 59028930 | |
| 34 | 45783 | Gold Tooth C.pt | 59028932 | |
| 35 | 46088 | XL Comb Head | 52428706 | |
| 36 | 46115 | Tooth | 59028934 | |
| 37 | 46096b | XL Wear Strip 1.68 | 56328731 | |
| 38 | 46097 | XL Wear Strip 1.82 | 56328732 | |
| 39 | 46098 | XL Wear Strip 2.12 | 56328733 | |
| 40 | 46090 | XL Comb Strip 1.68 | 56328700 | |
| 41 | 46091 | XL Comb Strip 1.82 | 56328714 | |
| 42 | 46092 | XL Comb Strip 2.12 | 56328703 | |
| 43 | 46108 | TSVEI Screw M10x1.25x14 | 58028198 | |
| 44 | 45781 | TSV 90° EI Screw M8x1x12 12K | 31134060 | |
| 45 | 45790 | TE Screw M10x1.25x16 10K | 31113098 | |
| 46 | 45786 | TE Screw M8x1x15 UNI 5740 10K | 31113092 | |
| 47 | 45787 | Spring | 58027286 | |
| 48 | 46198 | Belt B102 | 36220021 | |
| 49 | 4293 | Reg. Blade XL M 2.42 (32 sec.) | 58028914 | |
| 50 | 46296 | Blade Section Head | 52428729 |
