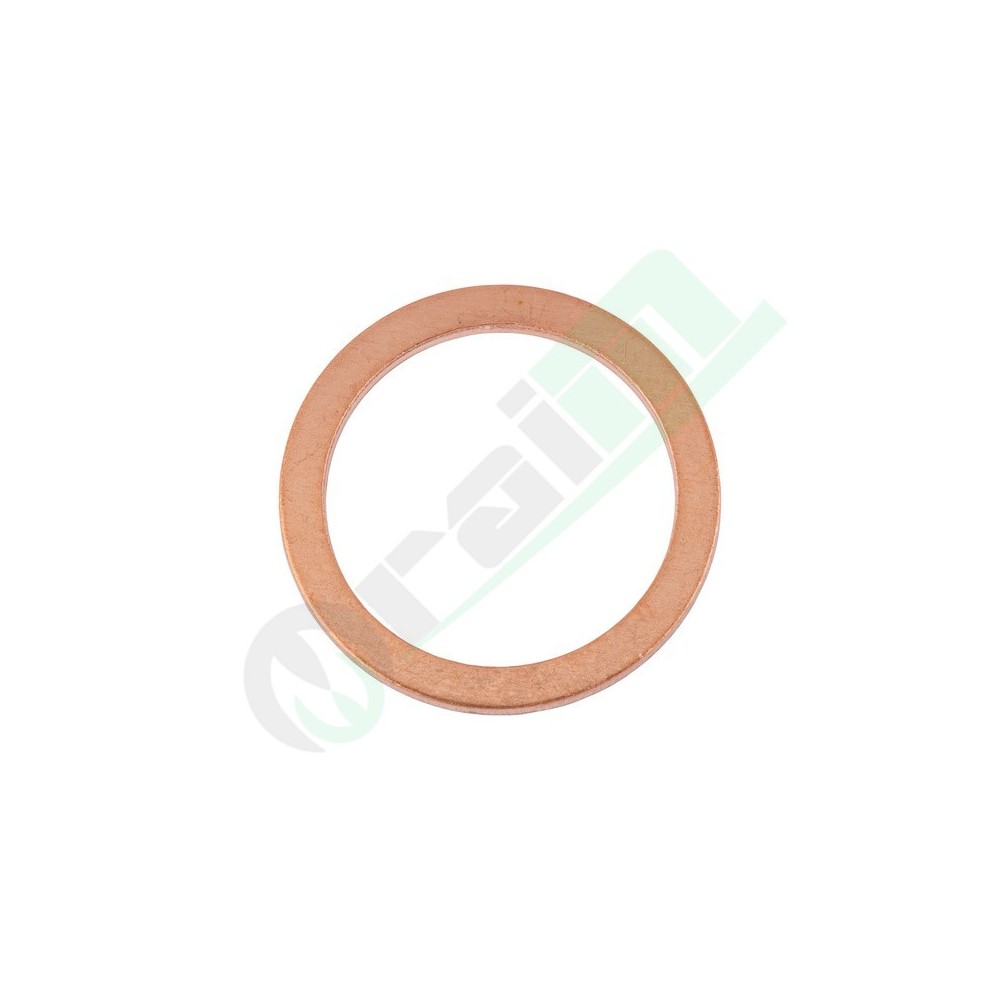

Copper Sealing Ring 8x14x1 DIN 7603 Code 500100517

star star star star star_border
Aftermarket
RAM814

The copper sealing ring 8x14x1 DIN 7603 (Code 500100517) ensures a reliable seal for IG R 3/8" threads. Inner diameter 8 mm, outer diameter 14 mm, thickness 1 mm.

Hurry! only 100 items left in stock.
€0.20
Tax included
COUPON
- € 0,00
Final price: € 0,20
Quantity

The minimum purchase order quantity for the product is 10.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Copper Sealing Washer DIN 7603 - Part Number 500100517

The copper sealing washer DIN 7603 (size 8x14x1 mm, part number 500100517) is a high-quality standard component specifically engineered for fittings with IG R 3/8” threading. It ensures a secure, leak-proof seal on fittings, plugs, pipes, and hydraulic, pneumatic, or fuel circuits. Thanks to copper's natural malleability, the washer conforms tightly to mating surfaces upon tightening, filling any micro-imperfections and preventing fluid leaks.
Key Features
  • DIN 7603 Standard: Compliant with technical specifications for flat sealing rings used in automotive, agricultural, and industrial applications.
  • Thread Compatibility: Specifically sized for female threaded fittings (IG R 3/8”).
  • Pure Copper Material: Offers exceptional resistance to high temperatures, corrosion, and aggressive chemical agents (oils, fuels, coolants).
  • Controlled Deformability: Ensures an impeccable seal under pressure as copper compresses to match contact surfaces securely.

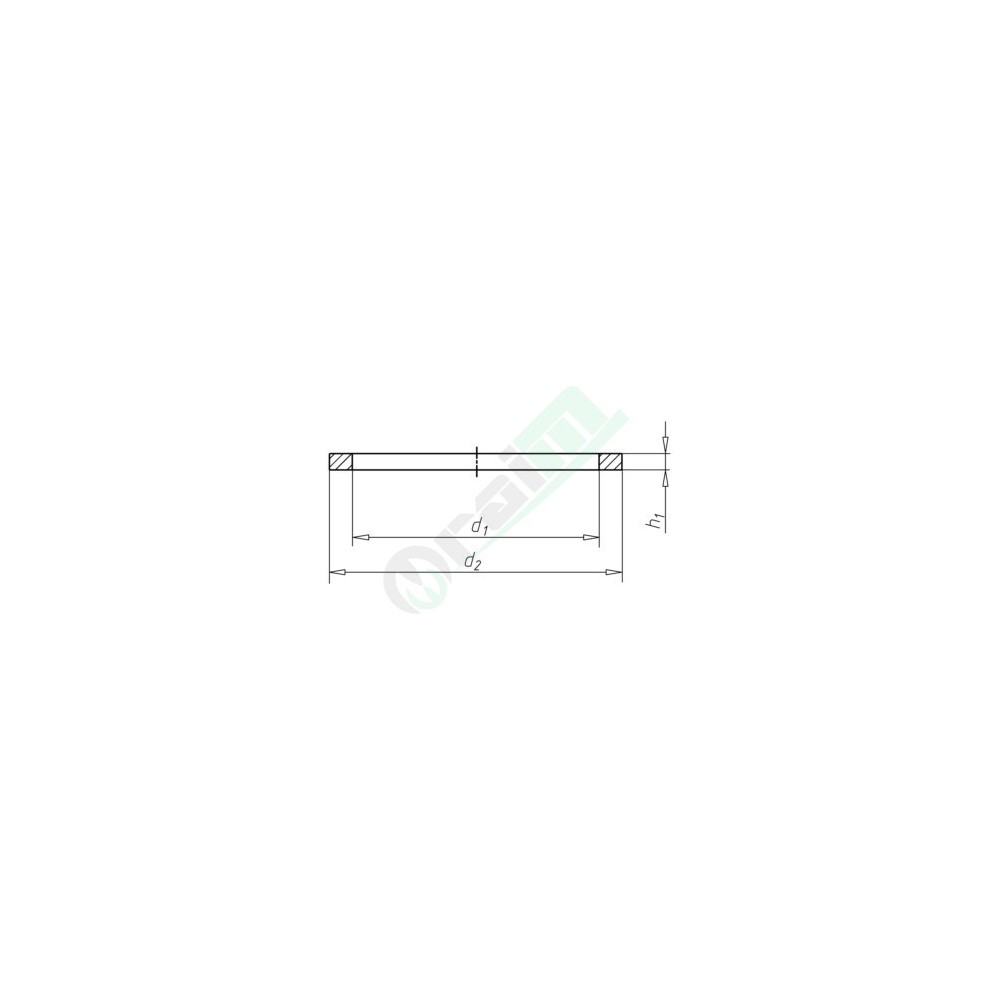

Technical Specifications
Product Code 500100517
Component Type Sealing Ring / Flat Copper Washer (DIN 7603)
Inner Diameter (mm) 8 mm
Outer Diameter (mm) 14 mm
Thickness (mm) 1 mm
For Thread Size IG R 3/8”
Material Copper
