Copper Sealing Ring 22x28x2 DIN 7603 | Raim Store

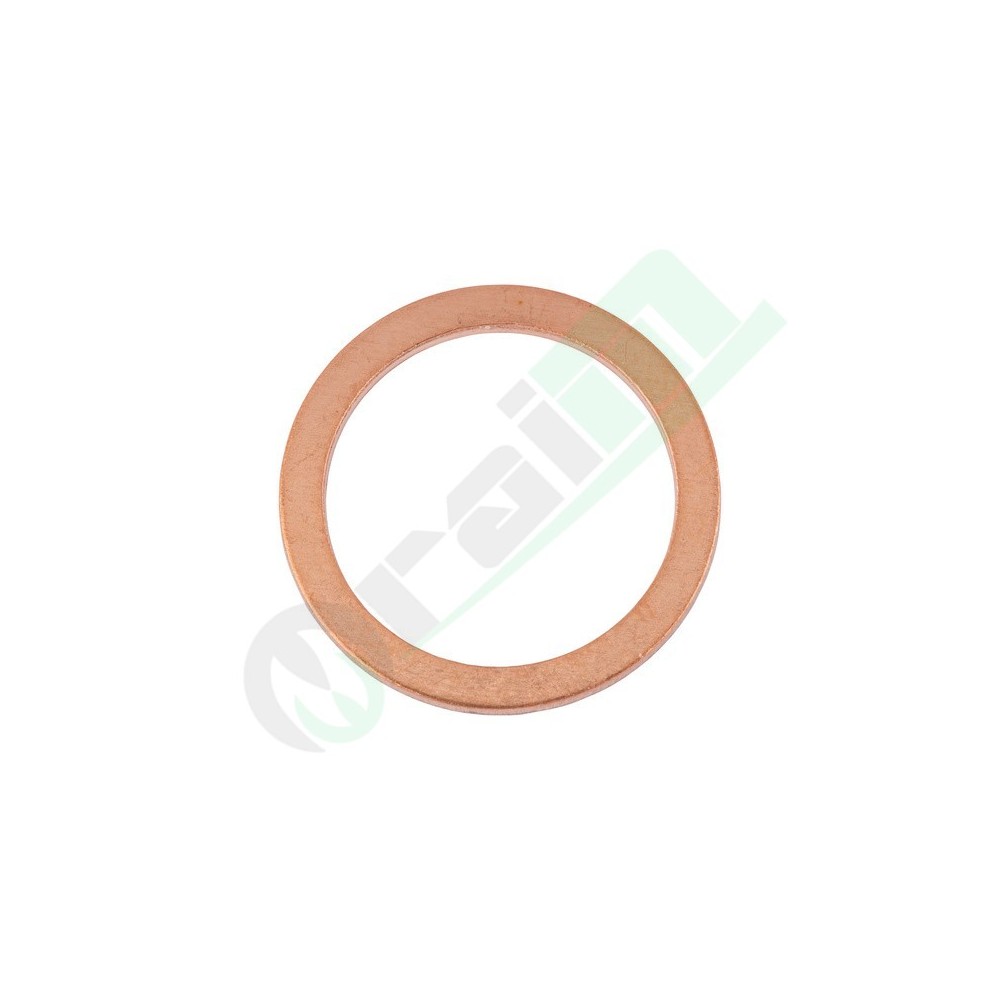

Copper Sealing Ring 22x28x2 DIN 7603 Code 500100630

star star star star star_border
Aftermarket
RAM2228

The copper sealing ring 22x28x2 DIN 7603 (Code 500100630) provides a reliable airtight seal. Inner diameter 22 mm, outer diameter 28 mm, thickness 2 mm.

Hurry! only 25 items left in stock.
€0.60
Tax included
COUPON
- € 0,01
Final price: € 0,59
Quantity

The minimum purchase order quantity for the product is 5.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Copper Sealing Washer DIN 7603 - Part Number 500100630

The copper sealing washer DIN 7603 (size 22x28x2 mm, part number 500100630) is a high-quality standard component designed to provide a secure, leak-proof seal on fittings, banjo bolts, pipes, and hydraulic, pneumatic, or fuel circuits. Thanks to copper's natural malleability, the washer conforms tightly to mating surfaces upon tightening, filling any micro-imperfections and preventing fluid leaks. The increased thickness of 2 mm ensures excellent sealing performance in heavy-duty applications.
Key Features
  • DIN 7603 Standard: Compliant with technical specifications for flat sealing rings used in automotive, agricultural, and industrial applications.
  • Pure Copper Material: Offers exceptional resistance to high temperatures, corrosion, and aggressive chemical agents (oils, fuels, coolants).
  • Controlled Deformability: Ensures an impeccable seal under pressure as copper compresses to match contact surfaces securely.

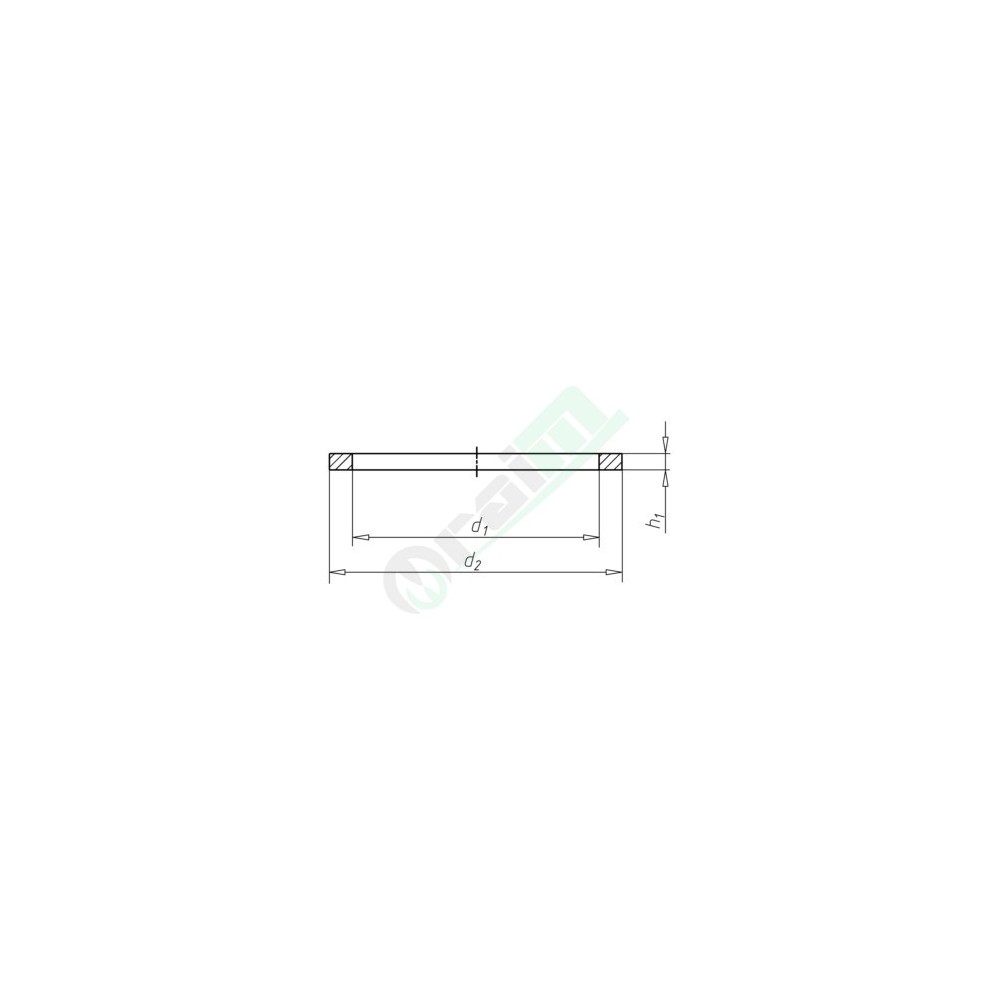

Technical Specifications
Product Code 500100630
Component Type Sealing Ring / Flat Copper Washer (DIN 7603)
Inner Diameter (mm) 22 mm
Outer Diameter (mm) 28 mm
Thickness (mm) 2 mm
Material Copper
: RAM2228
Hurry! only 25 items left in stock.

Fast and safe shipping: each order is carefully packaged to ensure that the product arrives intact and in perfect condition.

We work with reliable couriers to offer an efficient, traceable and punctual service.

You will receive a link to follow the shipment at every stage, until delivery.

We use quality protective materials and, where possible, eco-friendly packaging.

Our priority is that your purchase arrives without surprises, ready to use.
