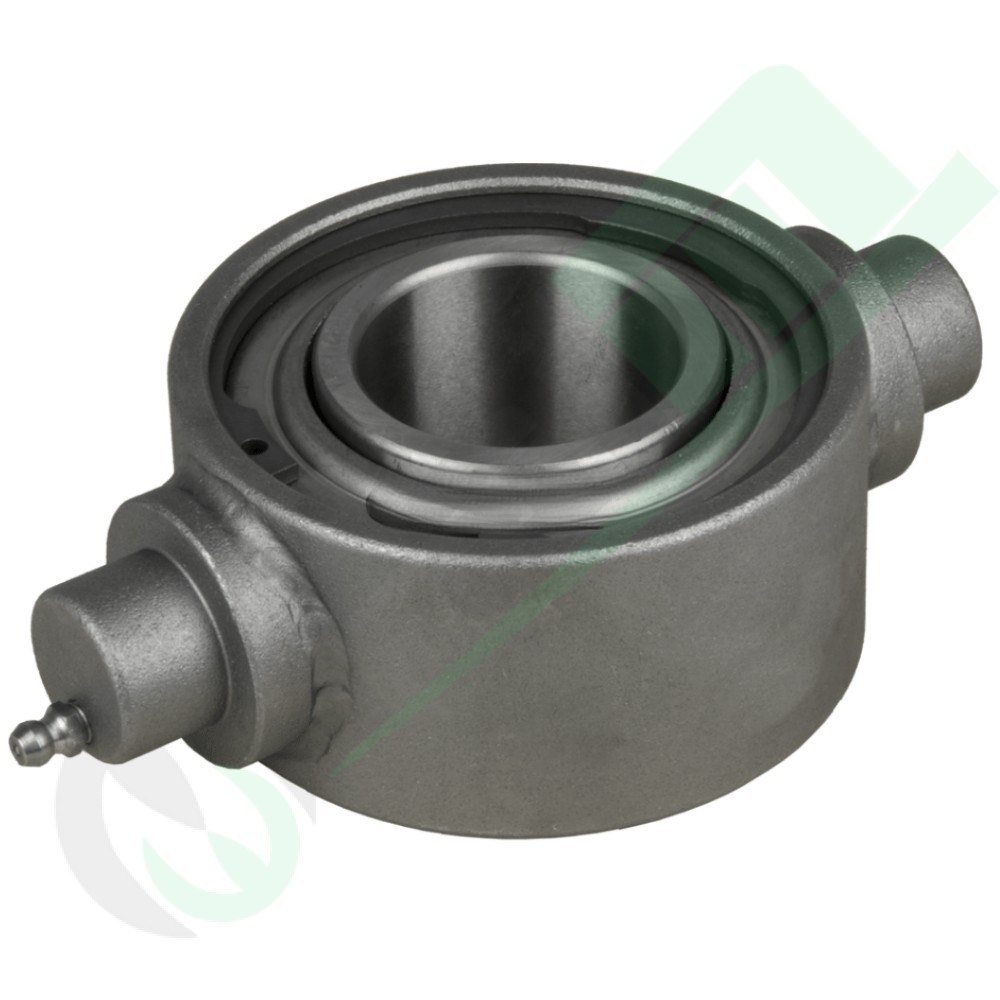

Integrated bearing assembly 57244 inner diameter 45 mm pin 26 mm

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Integrated bearing assembly 57244 inner diameter 45 mm pin 26 mm

Integrated bearing assembly part number 57244 engineered for agricultural disc harrow gang shafts. Features an inner diameter of 45 mm, 26 mm mounting pins with 114 mm center distance, 97 mm outer diameter, 48.5 mm height, and 147 mm overall length. Heavy duty housing ensures smooth rotation, dependable load distribution, and extended wear life in harsh field operations.

Heavy-duty solid housing
Sealed protection system
26 mm mounting pins

€49.90VAT incl.

Coupon -€1.00 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €48.90

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Integrated disc harrow bearing hub 45 mm inner diameter - Part number 57244

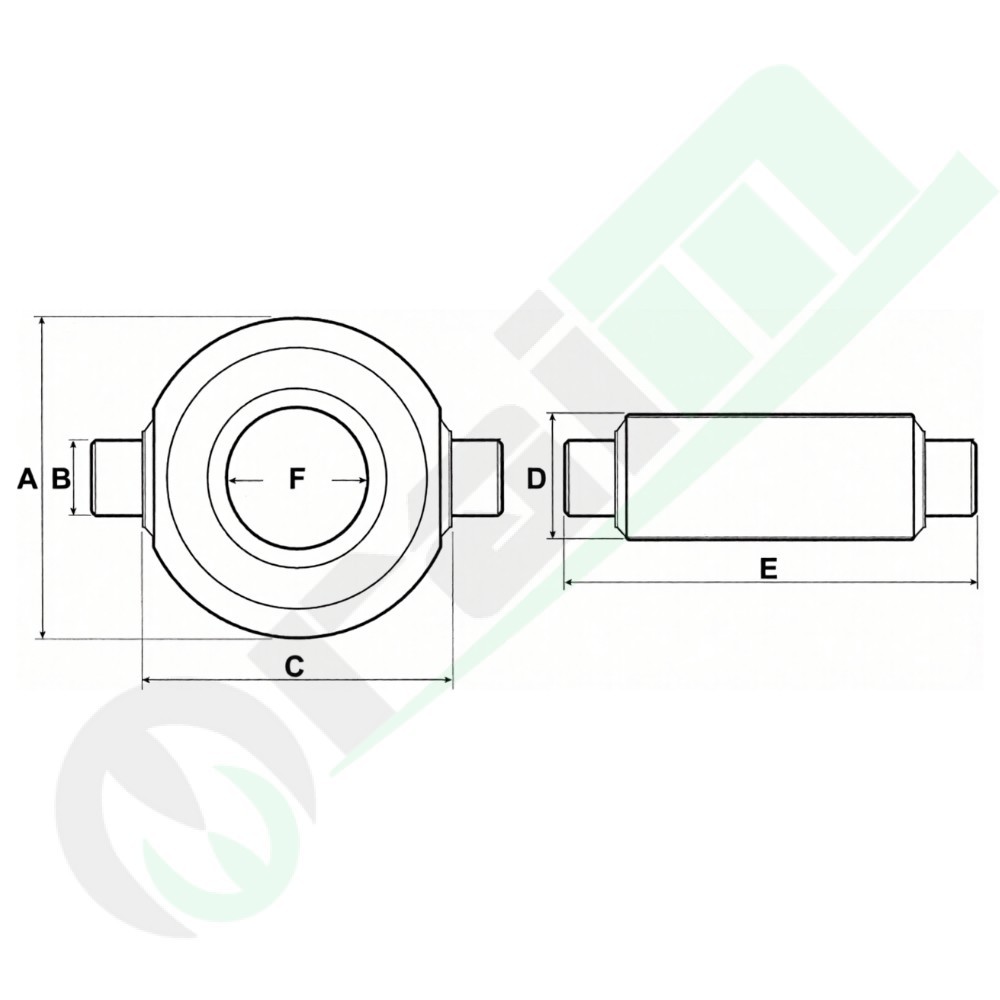

Replacement integrated bearing hub unit for agricultural disc harrows and soil tillage equipment, commercial part number 57424. Engineered to house and protect internal bearing components while maintaining smooth gang axle rotation, it withstands heavy combined radial and axial loads. The sealed, heavy-duty housing shields rolling elements from dust, sand, mud, and moisture during aggressive field work. It features an internal bore diameter of 45 mm (dimension F), housing outer diameter of 97 mm (dimension A), 26 mm mounting pins, 114 mm hole-to-hole center distance (dimension C), 48.5 mm height (dimension D), and an overall length of 147 mm (dimension E).

Key features

Heavy-duty solid housingRugged cast construction engineered to absorb impacts, torsional shocks, and continuous vibrations from the disc gang.

Sealed protection systemHigh-performance sealing design that prevents abrasive dust, sludge, and crop debris from entering the internal bearing cavity.

26 mm mounting pinsHeavy-duty fastening design ensuring rigid, secure mounting to the harrow gang hanger brackets without mechanical play.

Calibrated mounting dimensions114 mm center distance with a 48.5 mm profile height and 147 mm overall length for standard OEM replacement fitment.

Precision 45 mm internal boreMachined bore for 45 mm shafts ensuring proper coaxial alignment, reduced friction, and balanced rotational operation.

Specifications

Commercial part number	57244
Product type	Integrated disc harrow bearing hub
Inner diameter (F)	45 mm
Outer diameter (A)	97 mm
Pin diameter	26 mm
Center distance (C)	114 mm
Height (D)	48.5 mm
Overall length (E)	147 mm

Fitting tipsBefore installing the unit onto the harrow frame, clean the mounting hanger surfaces and shaft contact points thoroughly to remove rust, scale, and soil buildup. Align the hub with the frame brackets using the 114 mm center distance and insert the 26 mm mounting hardware smoothly without cross-binding. Slide the 45 mm gang axle through the unit, ensuring coaxial alignment to avoid premature bearing failure from uneven loading. Torque all frame mounting bolts to the manufacturer's recommended torque specifications, lubricate if greaseable, and recheck fastener tightness after the initial operational hours in the field.
