Plain disc harrow blade 56392 diameter 610 mm square hole 41 mm

-20%

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

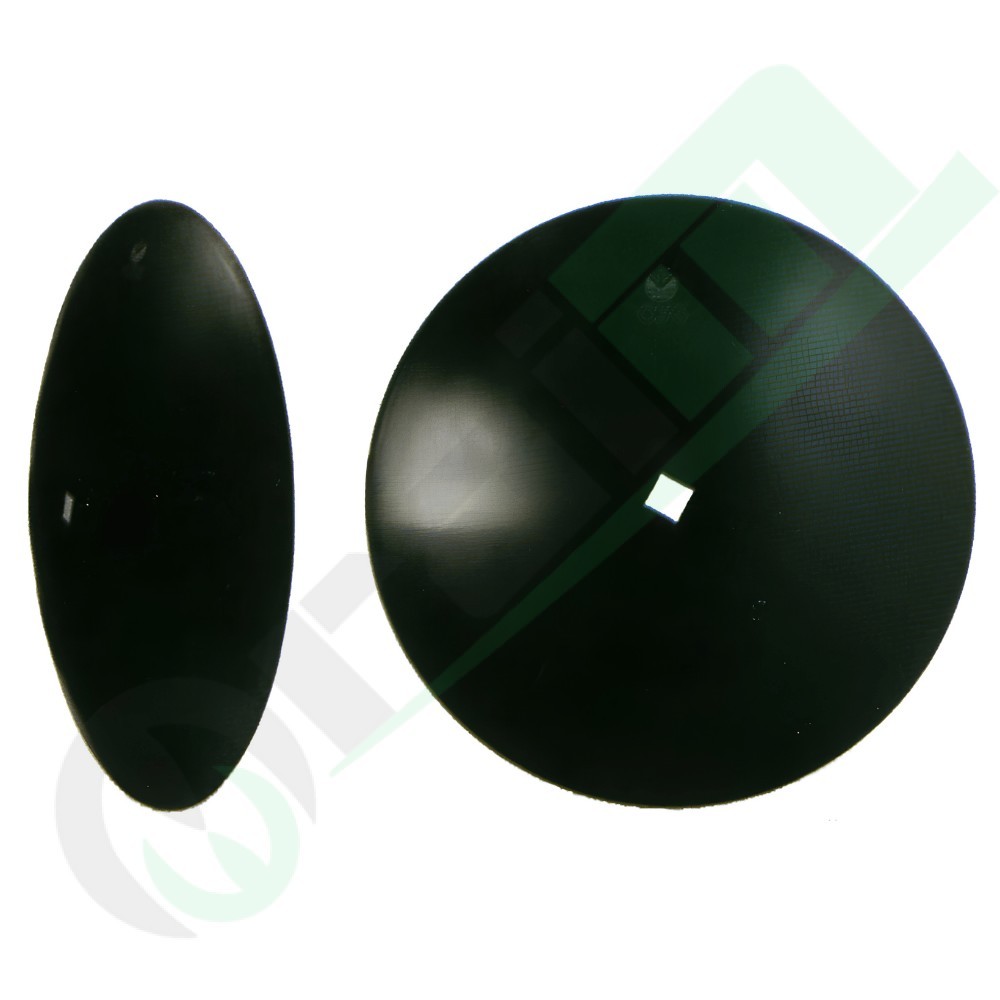

Plain disc harrow blade 56392 diameter 610 mm square hole 41 mm

Plain disc harrow blade part number 56392 engineered for heavy duty agricultural tillage machinery. Manufactured from premium 30 MnB 5 boron steel, it features a 610 mm diameter, 41 mm center square hole, heavy duty 6 mm plate thickness, and 84 mm concavity, delivering exceptional wear resistance and optimal soil displacement.

30 MnB5 boron steel
Smooth plain edge
Deep 84 mm dish concavity

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Plain harrow disc blade 610 mm square bore 41 mm - Part number 56392

Plain disc harrow blade for agricultural disc harrows and heavy tillage equipment, commercial part number 56392. Designed for deep soil tillage, ground leveling, and thorough crop residue sizing, it provides a smooth, consistent cut across demanding field conditions. Manufactured from high-tensile 30 MnB5 boron steel, it ensures superior wear resistance alongside structural elasticity to endure impacts against buried field stones. It features an overall diameter of 610 mm, a deep 84 mm dish concavity, an extra-heavy 6 mm plate thickness, and a 41 mm central square bore for heavy-duty axle mounting.

Key features

30 MnB5 boron steelHeat-treated alloy steel formulation engineered to maximize surface hardness against abrasion while resisting severe shock loads.

Smooth plain edgeContinuous cutting profile ensuring even soil slicing, consistent crumbling, and uniform seedbed leveling.

Deep 84 mm dish concavityCalibrated curvature profile designed for thorough soil inversion and efficient burial of surface crop residue.

Extra-heavy 6 mm thicknessRobust disc plate engineered to withstand extreme torsional stress and prolonged wear in harsh, heavy soils.

41 mm square center holeHeavy-duty central opening ensuring a secure, non-slip lock onto large-section harrow gang axles.

Specifications

Commercial part number	56392
Product type	Plain disc harrow blade
Material	Boron steel 30 MnB5
Diameter	610 mm
Center bore	Square 41 mm
Thickness	6 mm
Concavity	84 mm

Fitting tipsBefore installing the disc onto the square gang axle, clean off all dirt buildup, rust, and surface burrs from the shaft and mating spool spacers. Slide the blade into position ensuring the 84 mm dish concavity matches the required operating angle of the gang assembly. Ensure that the 41 mm square bore seats flush onto the shaft without excessive bind to eliminate localized stress points. Torque the axle gang nut to the equipment manufacturer's specified rating and check the complete disc pack for proper tightness after the initial operational hours in the field.
