MANN FILTER Secondary Air Filter C12116.2 | For FENDT SAME LAMBORGHINI Tractors

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

Mann FilterRef.

MANN FILTER Secondary Air Filter C12116.2 | For FENDT SAME LAMBORGHINI Tractors

MANN FILTER Secondary Air Filter C12116.2

€85.00VAT incl.

Coupon -€1.70 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €83.30

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

The MANN FILTER secondary air filter (or safety element) C12116.2 is designed to operate in combination with the main air filter. Its function is crucial for protecting the engine from harmful particles in case of damage or accidental removal of the primary filter, ensuring the cleanliness of the air entering the engine.

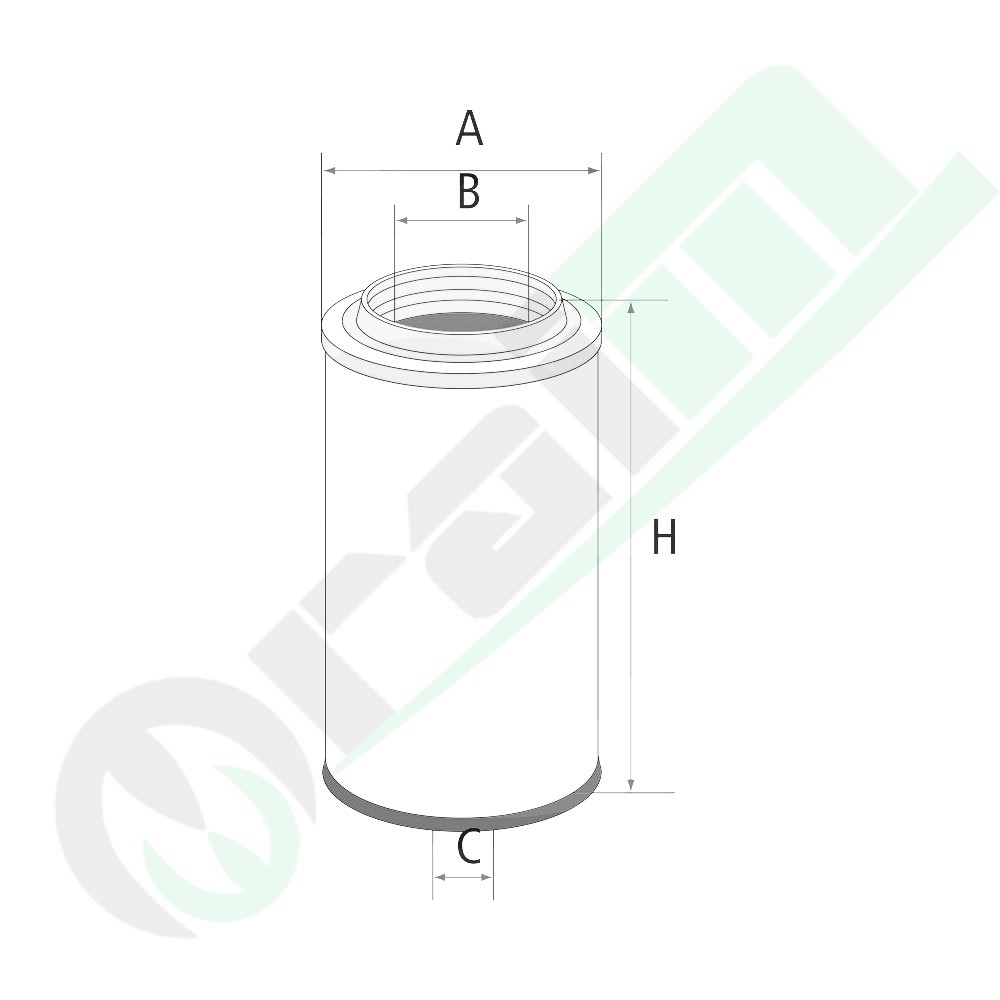

Technical Data and Dimensions

Part Number: C12116.2 (MANN FILTER).
Function: Secondary Air Filter (Safety Element).
A (Outer Diameter) (mm): 117.
H (Height) (mm): 388.
A1 (Inner Diameter) (mm): 88.
B (Inner Diameter, contact part) (mm): 88.
C (Bolt Hole Circle Ø) (mm): 17.

Cross References

H312200090110
14708660
2.4249.380.2
1426450M91

Compatible Machine Models (Brand - Series - Model)

FENDT - Farmer 300 / Favorit 500 / Xylon Series:
- Farmer 312 (Typ 199, Typ 312)
- Favorit 512 (Typ 512), 514 (Typ 514)
- Xylon 520, 522, 524
LAMBORGHINI - 1000 / Champion / Formula / Premium / R / R5 Series:
- 1506, 1706 (1000 Series)
- Champion 120, 135, 150
- Formula 115, 135
- Premium 1100, 1300
- R 1106, 1306, 1506 (R 1000 Series)
- R5.115, R5.130, R5.150 (R5 Series)
SAME - Antares / Galaxi / Laser / Rubin / Silver Series:
- Antares 130, Antares II 130
- Galaxi 170
- Laser 110, 125, 130, 150
- Rubin 120, 135, 150
- Silver 110, 115, 130
MASSEY FERGUSON:
- 1134 (1004 Series)
