MANN FILTER External Air Filter C28750 | OD 228 mm | H 420 mm | For FENDT

The MANN FILTER outer air filter C28750 is the primary element in the engine's air filtration system. Its function is to capture large and medium-sized particles, protecting internal engine components from wear. This filter is specifically designed to ensure optimal airflow and high contamination separation efficiency.

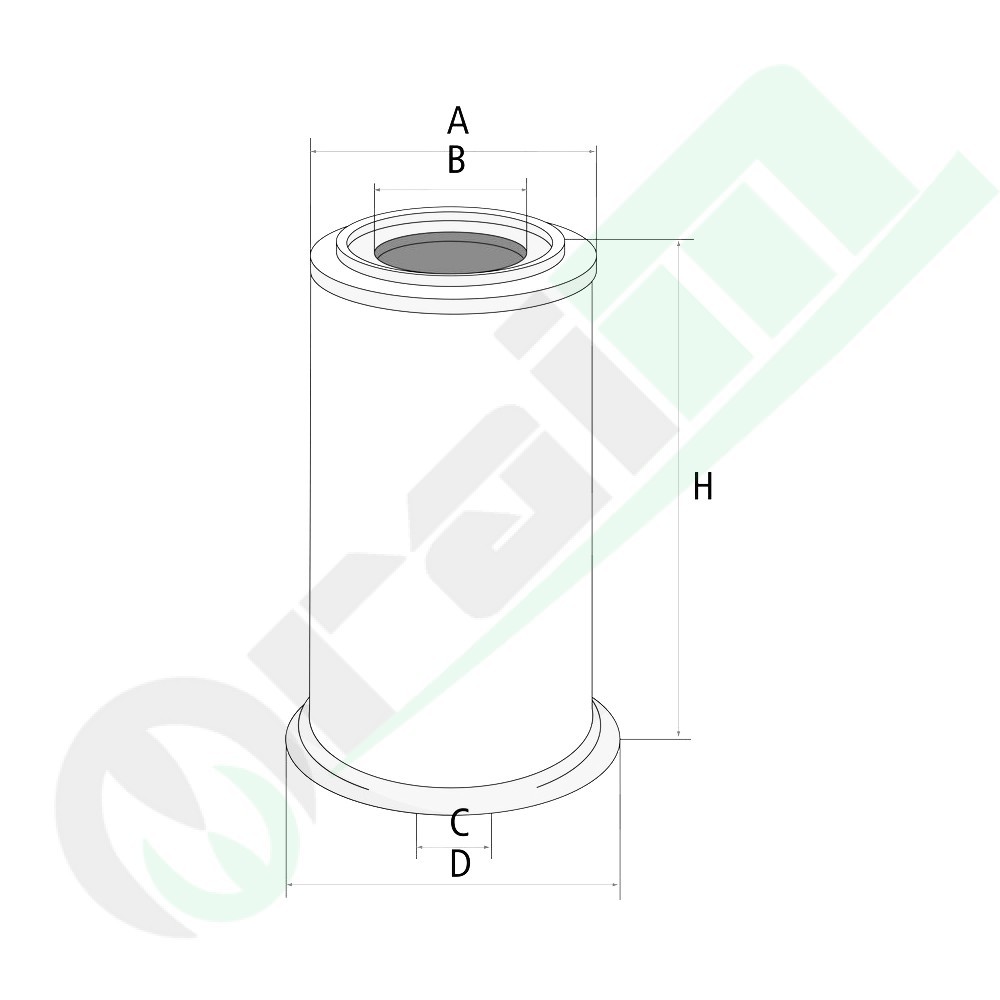

Technical Data and Dimensions

• Part Number: C28750 (MANN FILTER).
• Function: Outer Air Filter (Primary).
• A (Outer Diameter) (mm): 228.
• H (Height) (mm): 420.
• A1 (Inner Diameter) (mm): 123.
• B (Inner Diameter, contact part) (mm): 123.
• C (Bolt Hole Circle Ø) (mm): 16.5.
• D (Outer Diameter, bottom part) (mm): 276.
• Corresponding Secondary Filter: CF 12 116/2.

Cross References

• H312200090100
• 14708650

Compatible Machine Models (Brand - Series - Model)

• FENDT - Farmer 300 Series:
  • Farmer 312 (Typ 199)
  • Farmer 312 (Typ 312)
• FENDT - Favorit 500 Series:
  • Favorit 512 (Typ 512)
  • Favorit 514 (Typ 514)
• FENDT - Xylon Series:
  • Xylon 520
  • Xylon 522
  • Xylon 524
