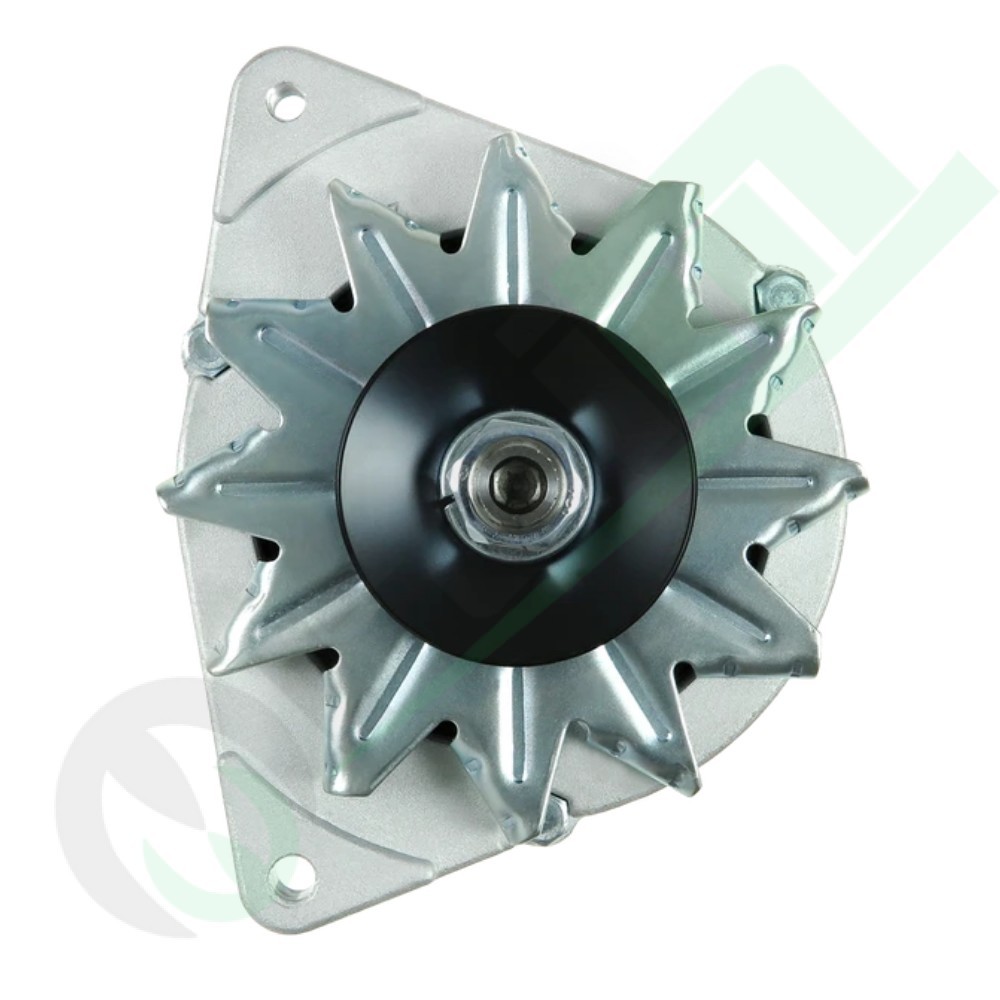

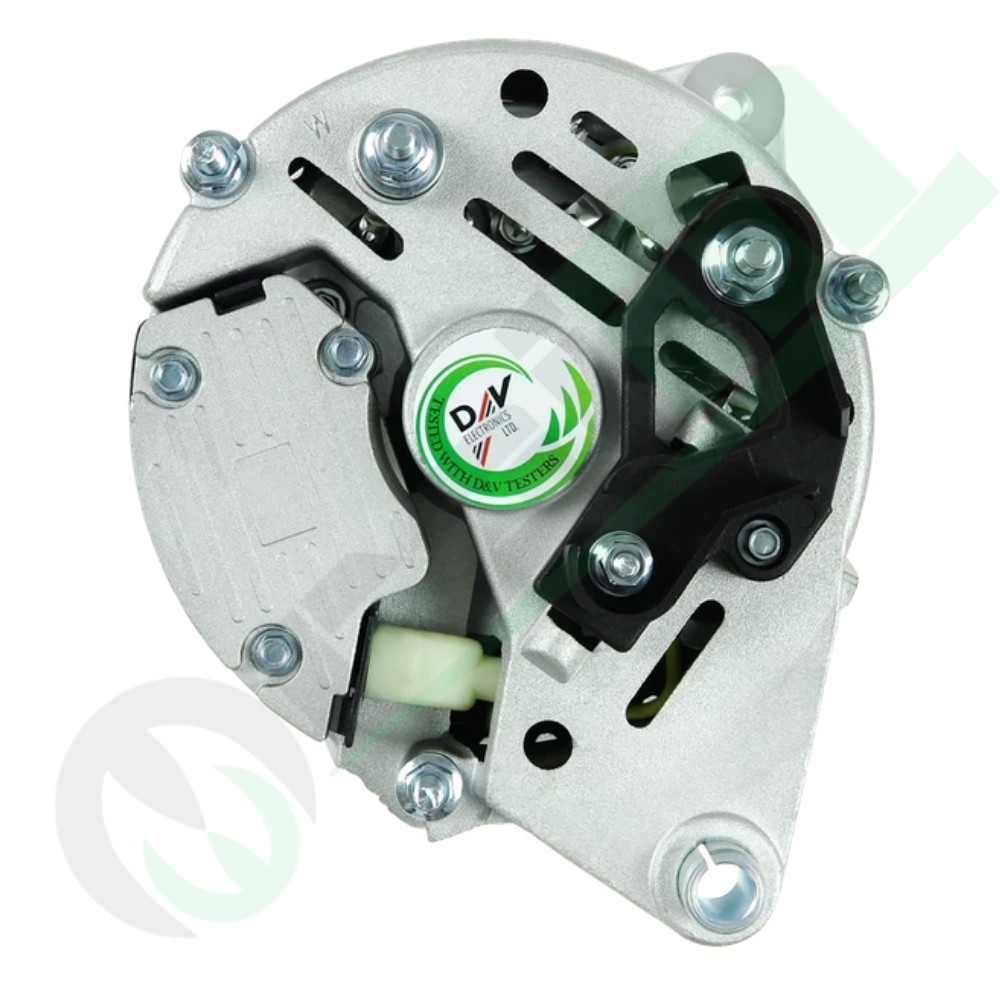

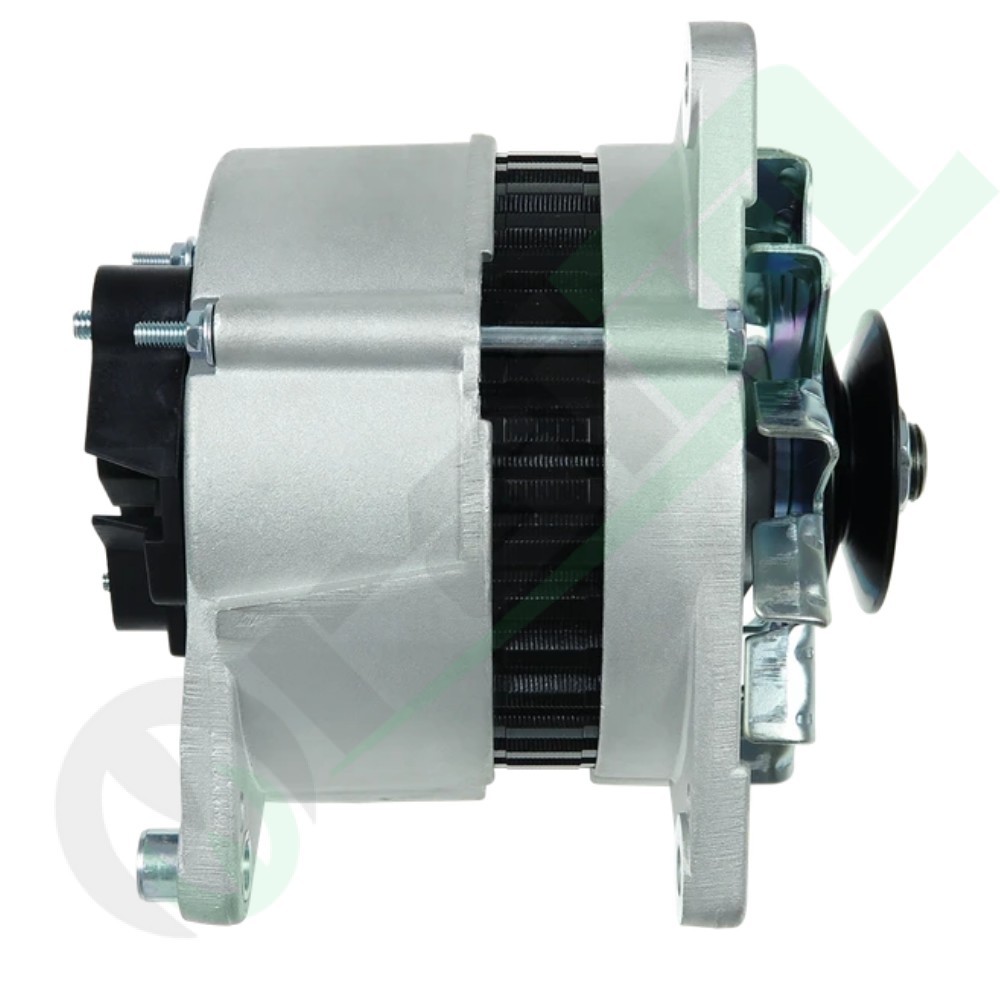

AS-PL Standard Line A4012 12V 70A Alternator (Lucas / Bosch / Ford Replacement) - EAN: 5901259404968
The AS-PL A4012 electrical alternator (EAN barcode 5901259404968) belongs to the STANDARD LINE range by AS-PL, engineered as a 100% brand-new component (non-remanufactured) to deliver consistent charging efficiency and dependable service life for passenger cars, light commercial vehicles, and agricultural machinery. Generating an operational output of 12 V and 70 A, it serves as a direct drop-in replacement for original equipment units by LUCAS, BOSCH, FORD, and MAGNETI MARELLI. Featuring a dedicated PL_9104 electrical plug connector, a single-groove V-belt pulley with a 10.50 mm groove width, and precise mounting bracket geometry (Dim. A 37.00 mm, Dim. B 12.00 mm, Dim. C 82.50 mm, L.1 166.00 mm), it guarantees accurate mechanical alignment and dependable battery replenishment under heavy electrical demand.
Key Features & Engineering Advantages
- 100% Brand-New Unit (Standard Line Series): Manufactured entirely from new premium-grade parts; eliminates core deposit requirements and the failure risks of rebuilt units while meeting strict OEM standards.
- Consistent 12V / 70A Power Output: Delivers stable charging across all engine RPM bands, safeguarding vehicle batteries and providing steady current to electronic control units, lighting, and auxiliary loads.
- Exact Direct Fit Replacement: Matches original factory bracket measurements (82.50 mm center-to-center distance, 37.00 mm front lug, 12.00 mm rear lug) for swift installation without tensioner or mount modifications.
- Single V-Belt Pulley (10.50 mm Groove): Designed for standard 10.5 mm V-belts, ensuring positive mechanical grip, reduced belt slippage, and minimized wear on engine auxiliary drives.
- Standardized PL_9104 Connector: Factory-spec plug interface ensures reliable, vibration-proof electrical continuity and protects wiring harnesses against road spray and oxidation.
- Comprehensive OEM Cross-Referencing: Interchanges directly with standard catalog references from Bosch, Ford, Magneti Marelli, Iskra/Letrika, Hella, and Cargo.

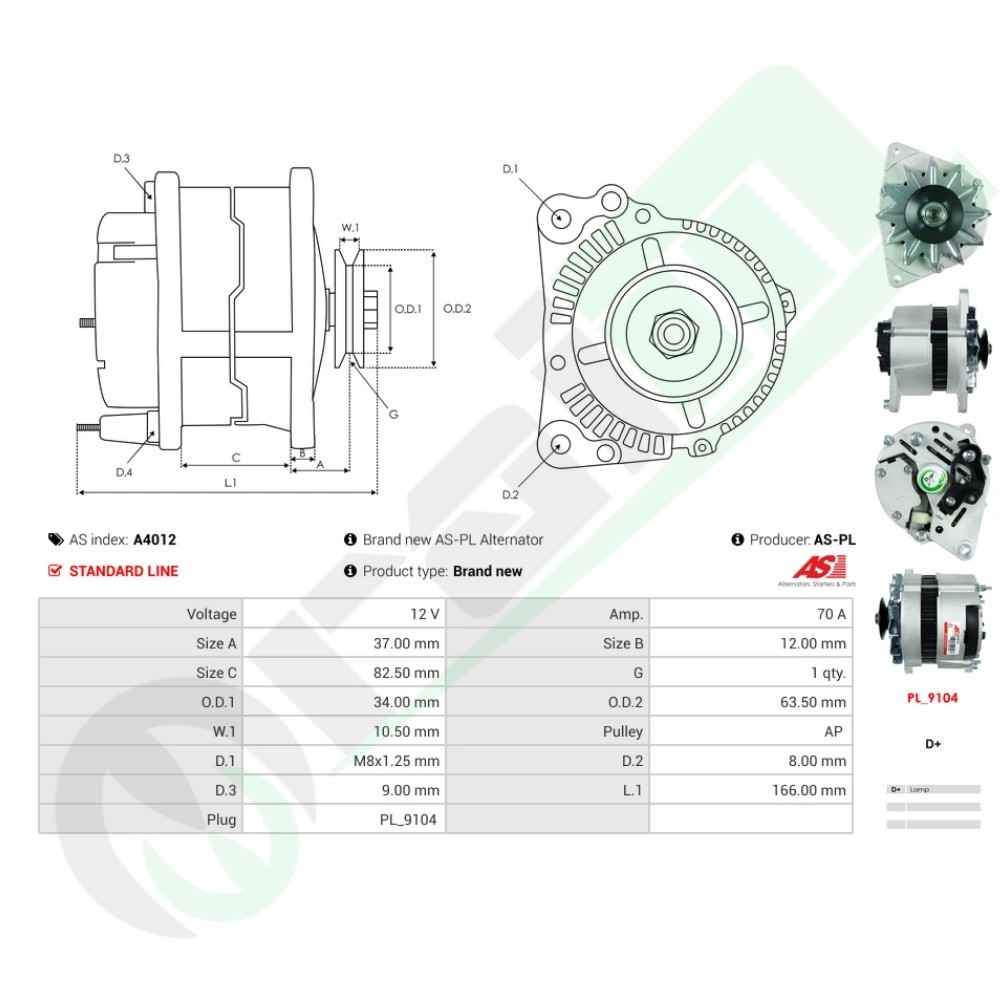

Technical Specifications & Dimensions
| Commercial Part Number |
A4012 |
| EAN Barcode |
5901259404968 |
| Brand / Product Line |
AS-PL – STANDARD LINE (100% Brand New) |
| Product Classification |
Automotive and machinery charging alternator |
| Nominal Voltage |
12 V |
| Rated Charging Current (Amperage) |
70 A |
| Primary OEM System Replacement |
LUCAS |
| Dimension A (Front Lug Thickness) |
37.00 mm |
| Dimension B (Rear Lug Thickness) |
12.00 mm |
| Dimension C (Mounting Hole Distance) |
82.50 mm |
| Total Length (L.1) |
166.00 mm |
| Pulley Configuration |
AP (Single groove V-belt pulley) |
| Pulley Groove Width (W.1) |
10.50 mm |
| Connector / Plug Standard |
PL_9104 |
| Product Status |
Active |
OEM & Aftermarket Cross Reference Table
| Manufacturer / Brand |
Interchangeable Reference Numbers |
| AS-PL |
A4012, UD02299A |
| BOSCH |
0120488211, 0120489347, 0986034470 |
| FORD |
5026113, 6136954, 86AB-10300-MA, 91AB-10300-TA |
| LUCAS |
LRA00604, LRA604 |
| MAGNETI MARELLI |
63324220, MRA34470 |
| ISKRA / LETRIKA |
11.201.581, IA0581 |
| HELLA |
8EL011710-941 |
| CARGO |
110891 |
Installation Best Practices & Workshop Advice: Always disconnect the negative battery cable before starting the alternator replacement. Inspect the drive belt condition and maintain appropriate tension on the 10.5 mm V-belt: over-tightening accelerates front bearing wear, while under-tightening causes belt slip and inadequate charging output. Ensure accurate axial alignment between the alternator pulley and engine crankshaft pulley. Clean all terminal contacts on the PL_9104 plug and ground leads to avoid parasitic resistance or voltage drop.
