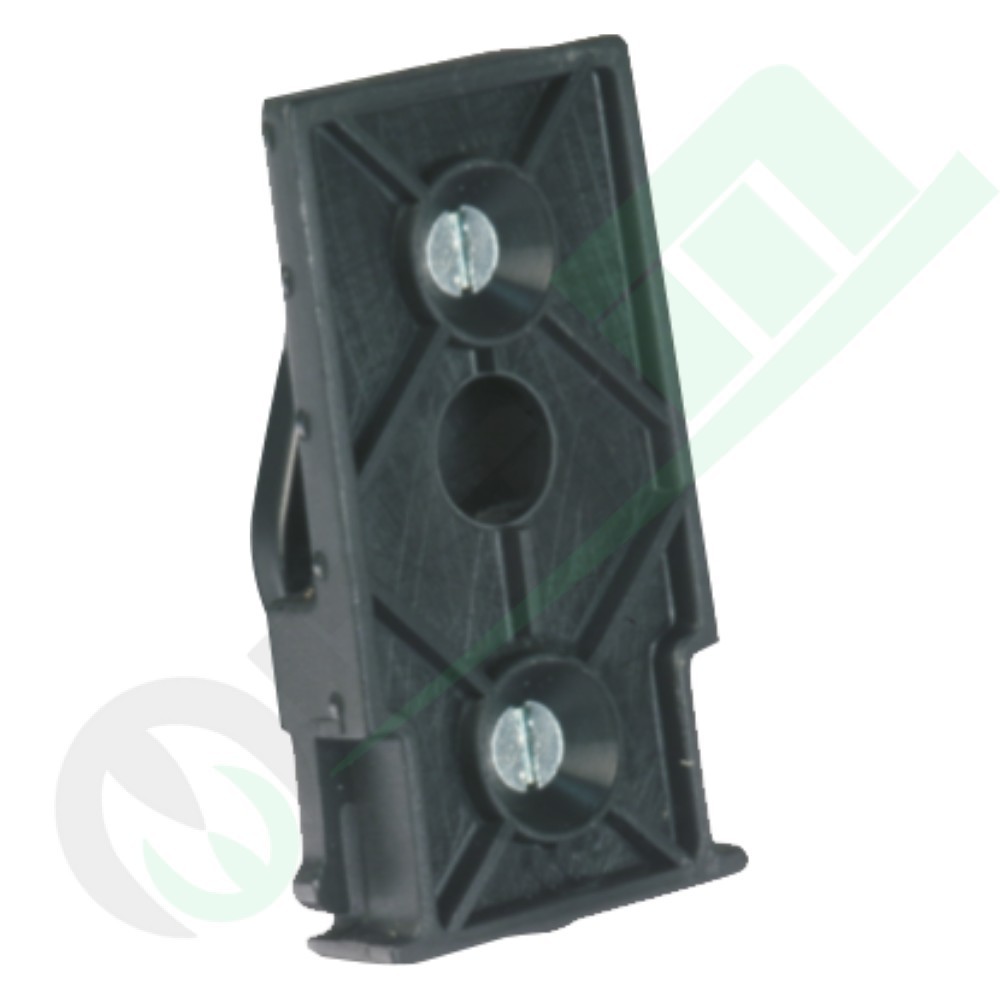

Arag Skipper Navigator Bayonet Mounting Bracket - Code 467005.510

The professional-grade Arag bayonet mounting bracket (Product Code: 467005.510) is a heavy-duty structural anchoring component developed explicitly to secure a rigid, stable, and vibration-free installation of the Skipper satellite navigation and parallel guidance display inside tractor cabs. This mounting unit secures excellent screen positioning parameters and optimal ergonomic layout configurations, enabling unhindered trajectory tracking during high-precision field applications.

Design Details and Quick-Release Bayonet Mechanism

This mechanical display support is manufactured from high-density, fiberglass-reinforced technopolymer compounds, a structural matrix engineered to withstand high dynamic stress, accidental Impacts, and continuous high-frequency vibration cycles common on uneven field terrain. The defining hardware characteristic of the bracket lies in its geometric quick-release bayonet interface: this configuration allows the machine operator to couple and lock the Skipper console into position with a straightforward rotational twist-and-click movement, while enabling instant removal at the end of daily operations to shield the display from theft or extreme thermal weathering. The base backing plate incorporates standardized hole patterns to ensure universal mounting compatibility with pre-existing cabin struts, mounting rails, or adjustable arm links, maintaining a compact profile that does not interfere with the driver's front or side line of sight.

Technical Specifications

Installation Guidelines and Fleet Integration Advantages

• Rigid Cab Anchoring: Bolt the backing plate securely to a structural pillar or an adjustable hardware bracket, ensuring that the assembly exhibits no loose play or mechanical tolerances.
• Inter-Fleet Versatility: Facilitates rapid transfer of the Skipper GPS display unit between different fleet vehicles equipped with matching bayonet receiver plates, minimizing equipment setup windows.
• Display Interface Integrity: The tight mechanical lock prevents accidental screen detaching even when traversing rough tracks or navigating harsh slopes, ensuring the operator's chosen viewing angle remains fully aligned.
