John Deere O-Ring Seal T56238 74712015 6000 Series | Raim Store

O-Ring Seal Gasket for John Deere Tractors Series 6000 6000SE 7000 Ref T56238 - 74712015

star star star star star_border
Aftermarket
74712015

O-ring sealing gasket part number 74712015 for John Deere tractors Series 6000/6000SE (6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900, SE6100-SE6400) and Series 7000 (7600). Heavy-duty sealing replacement designed for optimal temperature and fluid resistance, fully compatible with OEM part number T56238.

Hurry! only 119 items left in stock.
€5.90
Tax included
COUPON
- € 0,12
Final price: € 5,78
Quantity

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

John Deere Sealing O-Ring - Part Number: 74712015

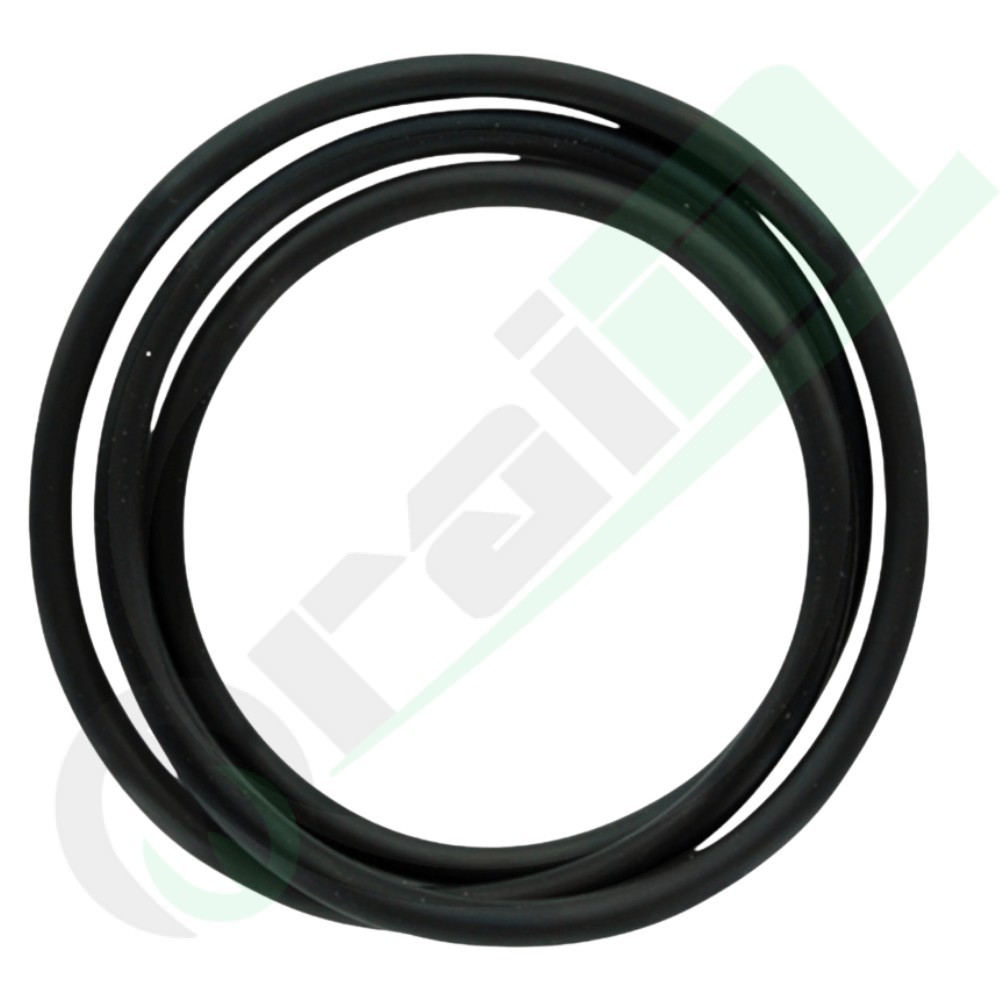

The Sealing O-Ring (part number 74712015, original John Deere OEM reference T56238) is a high-precision circular elastomeric sealing ring featuring an inner diameter of approximately 152 mm and a 3.53 mm nominal cross-section. Engineered for water pump and cooling housing sealing, it guarantees a leak-proof barrier against coolant loss across open-field John Deere 6000 / 6000SE Series and 7000 Series (7600) agricultural tractors.
Key Features & Benefits
  • Leak-Proof Static Sealing: Delivers an airtight, waterproof seal between the engine block and water pump housing, preventing cooling system pressure drops and fluid weeping.
  • Glycol & Heat Resistant: Formulated with a 70 Shore A resilient elastomer compound resistant to engine anti-freeze additives, corrosion inhibitors, and severe temperature fluctuations.
  • High Compression Set Resistance: Maintains elastic recovery and radial contact pressure over extended operating hours under severe field conditions.
  • Exact Direct OEM Fitment: Fabricated strictly to original John Deere T56238 cross-section and diameter specifications for a flush, trouble-free fit in the housing groove.
Technical Specifications
Product Code 74712015
Component Type Toroidal sealing O-ring for water pump / engine housing
Inner Diameter (ID) ~ 151.99 mm (5.98 in)
Cross Section (CS) 3.53 mm (0.14 in)
Durometer Hardness 70 Shore A
Equivalent John Deere OEM T56238
Application Table & Compatible John Deere Tractors
Tractor Series Specific Compatible Models OEM Reference
6000 / 6000SE Series 6100, 6200, 6300, 6400, 6506, 6600, 6800, 6900, SE6100, SE6200, SE6300, SE6400 T56238
7000 Series 7600
Technical Note: Clean the housing groove thoroughly of old debris before inserting the new O-ring. Lightly lubricate the seal with fresh engine coolant or clean silicone grease prior to mating to prevent twisting, rolling, or pinch damage during assembly.
: 74712015
Hurry! only 119 items left in stock.

Specific References

MPN
74712004
