Fuel Lift Feed Pump for Kubota Engines D950 V1702 V1902 V2203 Ref 15263-52030 - 3802688

star star star star star_border
Aftermarket
3802688

Diesel fuel feed lift pump part number 3802688 (2 mounting holes, 45 mm bolt spacing, 34 mm lever length) for Kubota diesel engines D950, V1702, V1902, and V2203. Heavy-duty replacement for agricultural and industrial machinery compatible with OEM part numbers 15263-52030, 1526352030, and 15381-52030.

Hurry! only 18 items left in stock.
€32.00
Tax included
COUPON
- € 0,64
Final price: € 31,36
Quantity

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

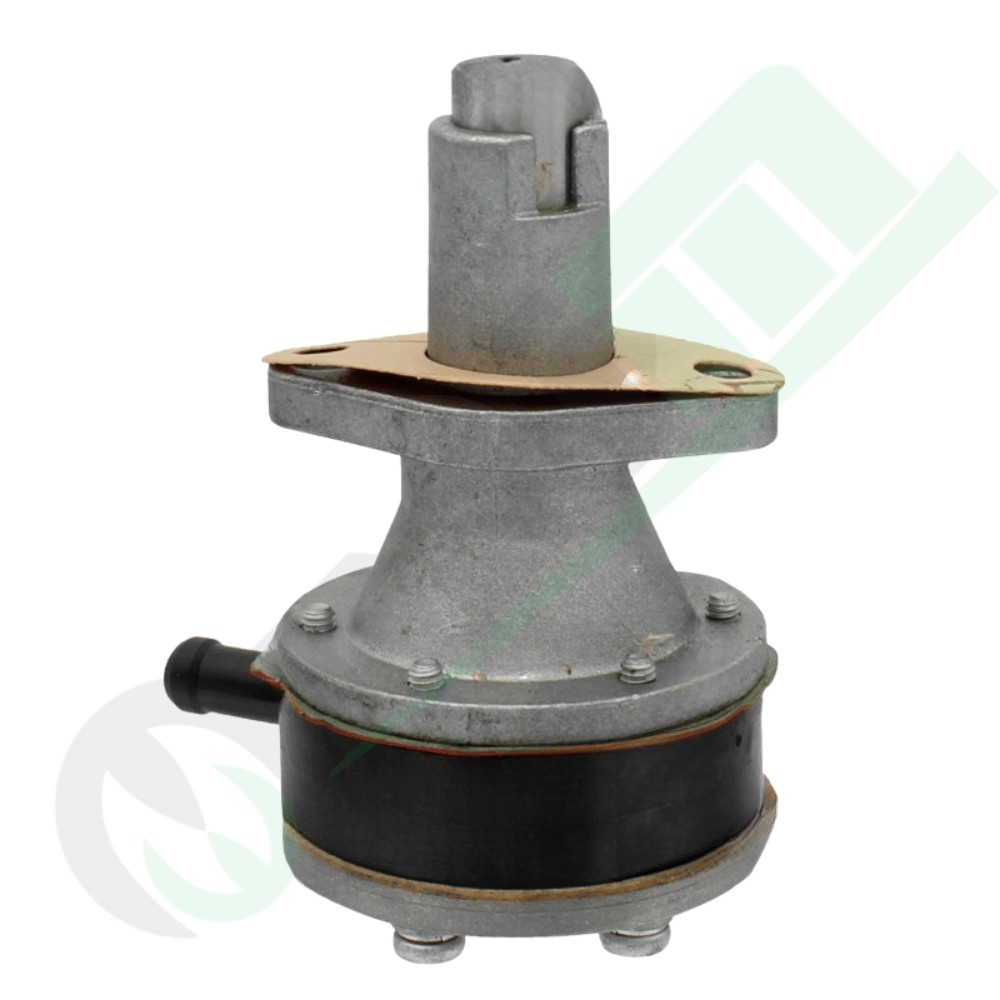

Diaphragm Fuel Feed Lift Pump - Part Number: 3802688

The Diaphragm Fuel Feed Lift Pump (part number 3802688, original Kubota OEM references 15263-52030, 1526352030, and 15381-52030) is a 2-hole mechanical fuel delivery unit featuring a 45 mm horizontal hole center distance and a 34 mm actuator lever arm (flange to tip). It is designed to ensure continuous and reliable low-pressure diesel delivery to the fuel injection pump on Kubota industrial and agricultural diesel engines (D950, V1702, V1902, V2203).
Key Features & Benefits
  • Consistent Fuel Supply: Supplies steady, cavitation-free low-pressure diesel to the injection system, preventing fuel starvation during heavy operating cycles.
  • Precise 34 mm Actuator Geometry: Calibrated 34 mm mechanical arm engineered for accurate and smooth engagement with the engine camshaft eccentric lobe.
  • Heavy-Duty Diaphragm: Formulated with premium-grade elastomeric compounds resistant to standard diesel, biodiesel blends, and high thermal stress.
  • Direct OEM Fitment: Built strictly to factory specifications with a 45 mm horizontal hole pattern for direct, leak-free installation across Kubota OEM applications.
Technical Specifications
Product Code 3802688
Component Type Mechanical diaphragm fuel lift pump
Mounting Configuration 2-hole mounting flange
Horizontal Hole Spacing 45 mm
Lever Length (Flange to tip) 34 mm
Equivalent Kubota OEM 15263-52030, 1526352030, 15381-52030
Application Table & Compatible Kubota Engines
Manufacturer / Category Specific Compatible Engine Models OEM References
Kubota Engines (D & V Series) D950, V1702, V1902, V2203 15263-52030, 1526352030, 15381-52030
Technical Note: Verify mounting hole spacing (45 mm) and lever arm length (34 mm from flange to tip) before fitting. Clean the mating flange area on the engine block thoroughly prior to installing the sealing gasket.
