Large Head Blind Rivets 4.0x9.5 mm 4878840114 | Raim Store

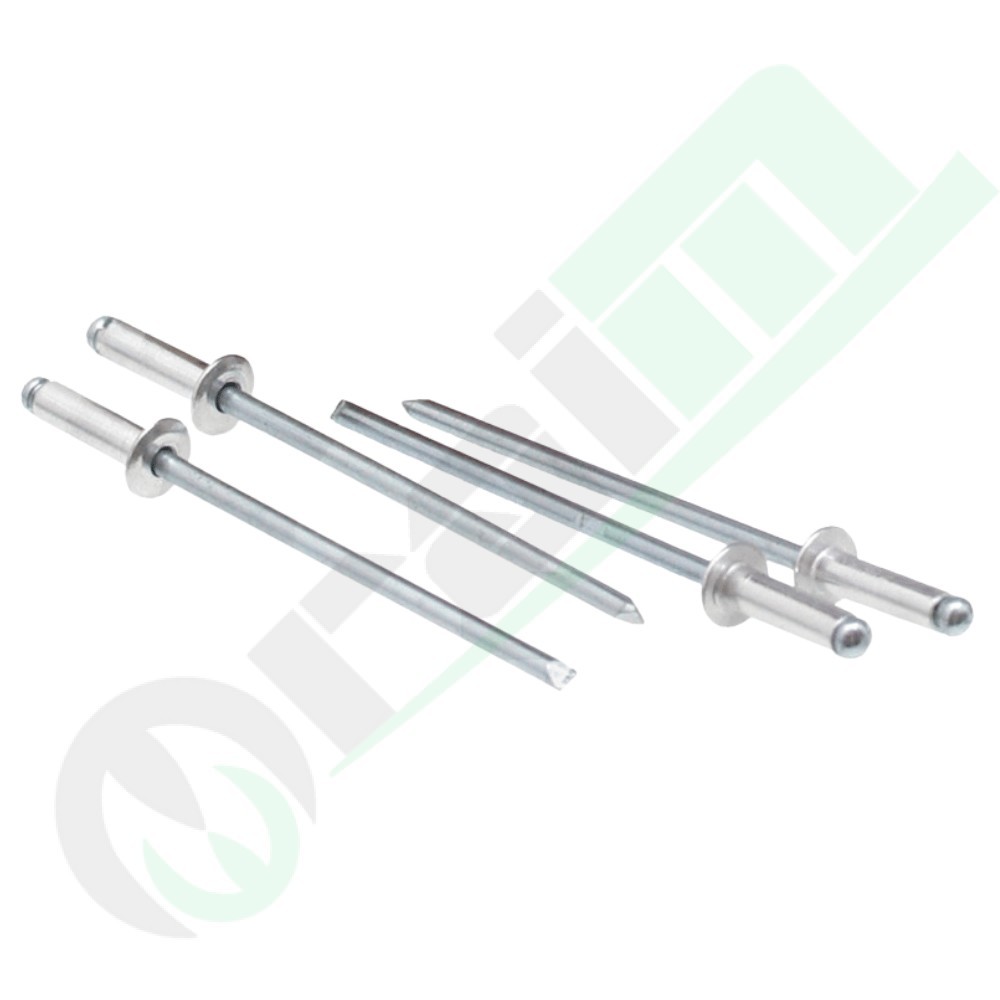

Large Head Blind Rivets 4.0x9.5 mm Part No 4878840114

star star star star star_border
Granit
4878840114

The 4.0x9.5 mm large flat head blind rivet (part number 4878840114) is made of aluminum and steel. Grip range 1.2-6.4 mm, hole 4.1 mm.

Hurry! only 500 items left in stock.
€0.12
Tax included
COUPON
- € 0,00
Final price: € 0,12
Quantity

The minimum purchase order quantity for the product is 25.

Alta disponibilità
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Large Flange Blind Rivets 4.0 x 9.5 mm (Code 4878840114)

The large flange blind rivets (part number 4878840114) are specifically engineered to distribute clamping force over a significantly wider bearing surface. This feature makes them ideal for fastening soft materials, plastics, composites, or thin sheet metals while preventing pull-through. Made of AL/ST material (aluminum body and steel mandrel), they offer an excellent balance between lightweight design and high mechanical retention for grip ranges from 1.2 to 6.4 mm.
Key Features
  • Large Flange Head (Ø dk 12 mm): Provides a wide contact area that distributes tension load, perfect for soft materials or oversized/irregular holes.
  • AL/ST Material (Aluminum / Steel): Ductile aluminum body for smooth deformation and steel mandrel for secure, high-strength retention.
  • Versatile Grip Range (1.2 - 6.4 mm): Thanks to its 9.5 mm length, it ensures great flexibility across different material thickness combinations.
  • Specific Applications: Optimal for automotive bodywork, light fabrication, mounting plates, plastics, and claddings.
Technical Specifications
Product Code 4878840114
Nominal Size 4.0 x 9.5 mm
Body Diameter (Ø d) 4 mm
Length 9,5 mm
Grip Range (Fixing Thickness) 1.2 - 6.4 mm
Head Diameter (Ø dk) 12 mm
Head Height (K) 1.5 mm
Recommended Hole Diameter (Ø hole) 4.1 mm
Mandrel Diameter (Ø dm) 2.3 mm
Head Type Large flange head
Material AL/ST (Aluminum / Steel)
: 4878840114
