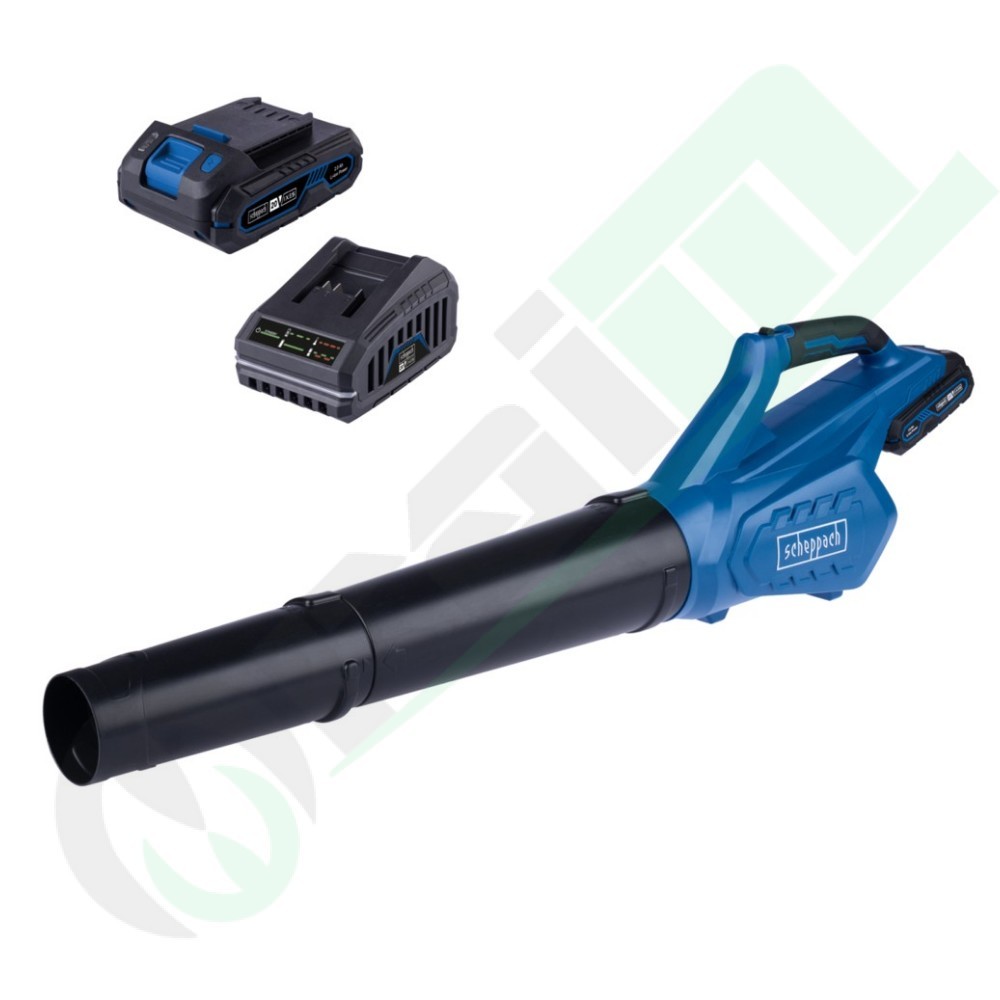

20V Jet Fan Leaf Blower Set - Scheppach C-BL700-X with 1x 2.0Ah Battery & Charger
The 20V cordless leaf blower full kit (Reference: 429.5912104400 - EAN Code: 4046664222538) is an all-inclusive, ready-to-use power bundle developed by Scheppach for rapid clearance of leaves, grass clippings, and garden debris from pathways, driveways, and residential yards. This package includes the high-velocity axial blower C-BL700-X, a 2.0Ah SBP2.0 Lithium-Ion battery, and a 2.4A SBC2.4A battery charger, all part of the fully interchangeable Scheppach IXES 20-Volt system platform.
Design Details and Functionality
The machine centers around a high-efficiency axial fan design configured to optimize directional linear flow for fast ground clearing execution. The drivetrain incorporates 2 adjustable speed modes: Level 1 delivers an air velocity of 115 km/h (32 m/s) for light surface work, while Level 2 steps up to a maximum velocity of 155 km/h (43 m/s) backed by an outstanding air volume output rate of 516 m³/h. The standard Brushed motor operates at a high nominal speed reaching up to 22500 rpm. For space-saving storage, the unit features a detachable, two-piece blower tube fitted with a quick-release joint layout that requires absolutely no tools for conversion or assembly. Tool ergonomics are supported by a well-balanced framework layout, a comfortable soft-gripped Balance handle, and a lightweight bare tool net weight of just 1.8 Kg.
Intelligent Power Supply and Charging Station
The supplied SBP2.0 2.0 Ah battery pack is engineered with a high-end individual cell management system. This software layout continuously protects the unit from issues regarding overheating, overvoltage, or deep over-discharging, maximizing the runtime parameters and lifecycle parameters of the Lithium-Ion cells. Remaining fuel status can be verified seamlessly on a clear 3-stage LED display integrated into a rugged, shock-resistant housing shielded against industrial dust and corrosive agents. The matching 65W SBC2.4A compact charger employs smart charging software parameters to regenerate the 2.0Ah battery pack in roughly 60 minutes (and an optional 4.0Ah cell in 120 minutes). To maximize workspace parameters inside garages or garden sheds, the charging base has an integrated wall bracket mount.
Technical Specifications
| Blower Rated Voltage |
20V |
| Motor Type |
Brushed |
| Nominal Motor Speed |
0 - 22500 rpm |
| Speed Selection |
2-stage selectable options |
| Maximum Air Speed |
155 km/h |
| Air Volume Capacity |
516 m³/h |
| Tube Design Features |
Two-piece detachable tube with toolless quick release |
| Battery Model & Capacity |
SBP2.0 - 20V / 2.0 Ah Lithium-Ion (Li-ion) |
| Charger Model & Output |
SBC2.4A - Input 230-240V / Output 21.5V (2.4A) - 65W |
| 2.0Ah Cell Charging Duration |
approx. 60 minutes |
| Blower Weight (Bare Tool) |
1.8 Kg |
| Battery Net Weight |
0.4 Kg |
| Blower Dimensions (L x W x H) |
450 x 260 x 150 mm |
| Platform Compatibility |
Scheppach 20V IXES System |
| Reference Code |
429.5912104400 |
| EAN Code |
4046664222538 |
