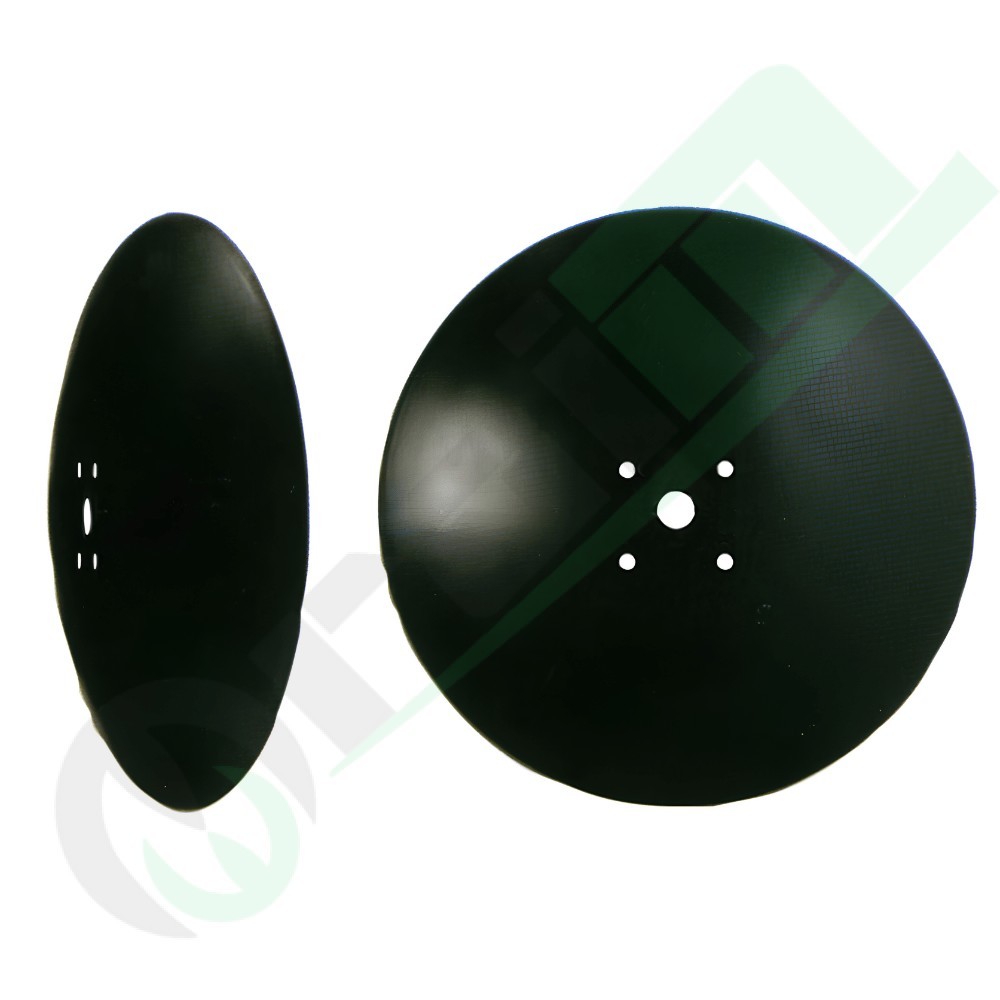

Concave skimmer disc blade 57616 diameter 410 mm 4-hole PCD 116

Concave skimmer disc blade part number 57616 engineered for plow skimmers to effectively turn soil and bury crop residues. Features a 410 mm outer diameter, 26 mm central hole, 4-hole flange (13 mm holes) on a 116 mm bolt circle, heavy duty 6 mm thickness, and 39 mm concavity. Manufactured from wear-resistant steel for superior field performance and maximum durability.

30 MnB5 boron steel
Heavy-duty 410 mm diameter
Reinforced 6.0 mm thickness

€61.90VAT incl.

Coupon -€1.24 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €60.66

Shipping always charged for this item Not eligible for free shipping: even above €30.00 you pay its shipping. The rest of your order still ships free.

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Concave skim coulter disc blade diameter 410 mm - Part number 57616

Heavy-duty replacement concave disc blade for plough skim coulters, commercial part number 57616. Specifically engineered for deep, aggressive turf slicing and effective burial of dense crop residues, corn stalks, and weeds ahead of the main plough body. Manufactured from high-tensile 30 MnB5 heat-treated boron steel, it provides outstanding resistance to abrasive wear along with high structural elasticity to endure severe stone impacts. Features an enlarged 410 mm outer diameter, a heavy-duty 6.0 mm plate thickness, and a 39 mm concavity depth designed for optimal soil lifting and inversion. Equipped with a 26 mm central pilot hole and a 4-hole mounting pattern (13 mm bolt holes) on a 116 mm bolt circle diameter (PCD), ensuring direct pairing with standard heavy-duty skim coulter hub units (e.g., part numbers 57612 and 57613).

Key features

30 MnB5 boron steelHeat-treated structural alloy steel offering superior surface hardness, extended service life, and shock resistance.

Heavy-duty 410 mm diameterSized for high-clearance ploughs handling heavy organic mass and deep skim cultivation.

Reinforced 6.0 mm thicknessHeavy-duty blade cross-section engineered to prevent rim chipping or warping under severe torsional loads.

Aggressive 39 mm concavityCalibrated dish depth for positive soil entry, lifting, and clean residue turning into the open furrow.

116 mm PCD mounting pattern (4x13 mm)Precision 4-hole flange interface with a 26 mm pilot bore for rigid, concentric mounting without looseness.

Specifications

Commercial part number	57616
Product type	Concave skim coulter disc blade
Material	Boron steel 30 MnB5
Outer diameter	410 mm
Thickness	6.0 mm
Concavity depth	39 mm
Center pilot hole	26 mm
Flange bolt pattern	4 holes Ø 13 mm
Bolt circle diameter (PCD)	116 mm

Fitting tipsPrior to mounting the concave disc blade, thoroughly clean the contact face of the skim coulter hub, removing scale, soil buildup, and old grease. Place the disc onto the hub flange ensuring the concavity faces the correct soil turning direction and that the 26 mm center hole fits squarely over the hub pilot pin. Insert the four mounting bolts through the 13 mm holes on the 116 mm PCD pattern and torque them evenly in a diagonal sequence to the recommended specification. Spin the disc assembly manually to ensure smooth, unhindered rotation before commencing field operations, and re-torque all hardware after the initial 5 to 10 hours of work.
