Arag Valve and Sensor Main Connection Harness (2 Sections) - Code 467185203.100

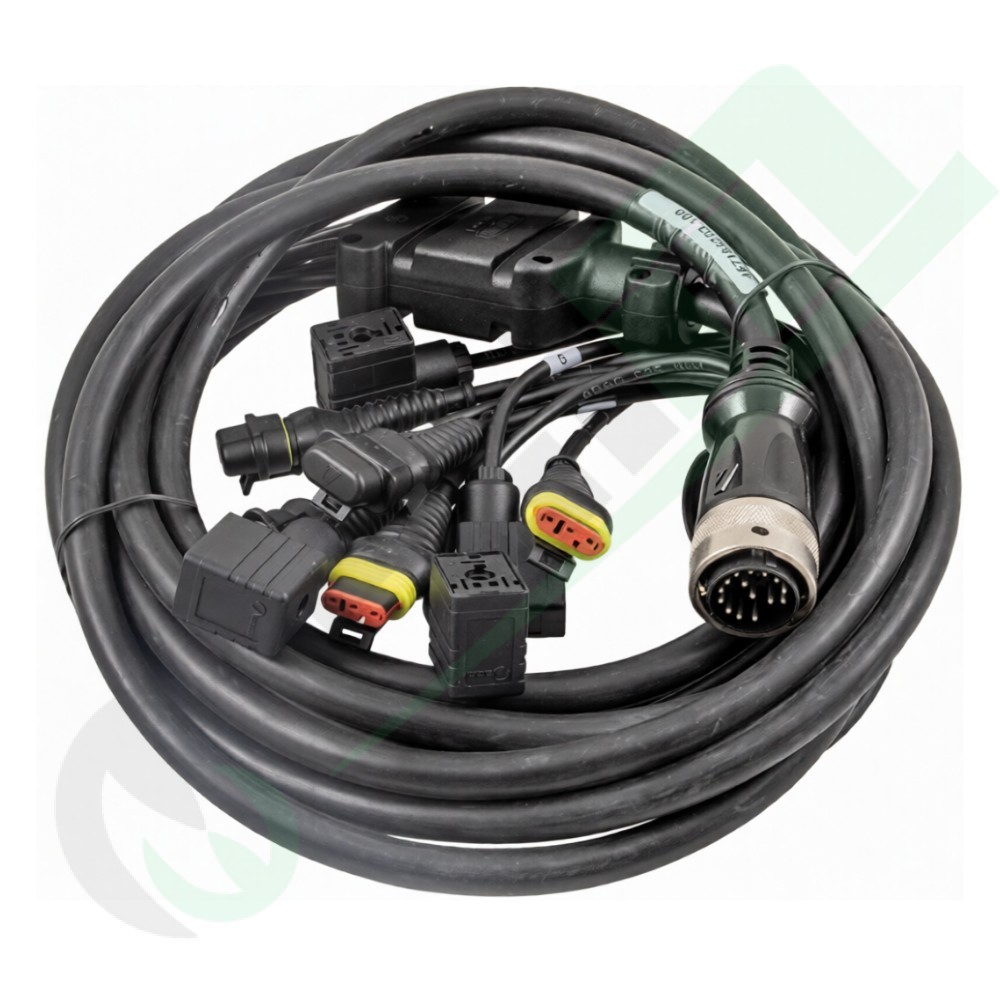

The professional-grade Arag valve and sensor connection harness (Product Code: 467185203.100) is a heavy-duty primary electrical line engineered to bridge Bravo and Delta onboard rate controllers with the section actuators and monitoring devices installed on the boom layout or orchard sprayer. Tailored specifically for systems managing 2 distribution sections, this harness unifies electrical valve actuation inputs and high-frequency sensor telemetry data into a single protected loom, ensuring maximum fluid-dynamic responsiveness and precision in field applications.
Design Details and Hardware Architecture
This primary wiring loom is structurally engineered to withstand the punishing environmental parameters typical of seasonal spraying schedules. The internal copper conductors feature high-grade dielectric insulation and are encased within a reinforced thermoplastic polyurethane (TPU) outer jacket. This configuration yields exceptional protection against structural friction, heavy abrasion, intense UV exposure, and continuous contact with aggressive chemical concentrates and solvent agents. The split design branches out smoothly at the terminal section to interface with 2 section control valves (either motorized or solenoid-driven) while integrating sealed connection plugs tailored for line monitoring instruments, including pulse flowmeters, pressure transducers, and speed sensors. Every connection node and terminal socket is injection-molded to comply with IP67 waterproof standards, safely blocking moisture, dust, and liquid ingress away from the gold-plated pins. With a robust 4.5-meter linear extension, the harness establishes clear, strain-free routing from the cabin user interface to the wet-system manifold array.
Technical Specifications
| Component Classification |
Primary interface wiring loom for section valves and line tracking sensors |
| Managed Distribution Sections |
2-section independent spray control |
| Harness Length Specification |
4.5 meters (14.8 ft) |
| Ingress Protection Rating |
Molded connectors with IP67 dust and liquid waterproofing seal |
| Peripheral Hardware Compatibility |
863/873 series motorized valves, solenoid valve blocks, digital flowmeters, pressure sensors, and Arag tachometric sensors |
| Master Console Integration |
Arag Bravo controller family (Bravo 180S, Bravo 350) and Delta data logging monitors |
| Product Reference Code |
467185203.100 |
Fleet Integration & Operational Advantages
| Technical Metric |
Operational Benefit & Fleet Implementation |
| Unified Signal Routing |
Combines valve toggle signals and flow telemetry into a single shielded channel, minimizing cable clutter and simplifying routing along the vehicle frame. |
| 4.5 m Calibrated Reach |
Provides the optimal extension for compact and mid-sized mounted or towed implements, eliminating intermediate extension joints prone to resistance corrosion. |
| Reinforced IP67 Seals |
Secures uninterrupted signal transmission and prevents false terminal contact faults, even during intensive high-pressure pressure-washing maintenance and prolonged chemical exposure. |
