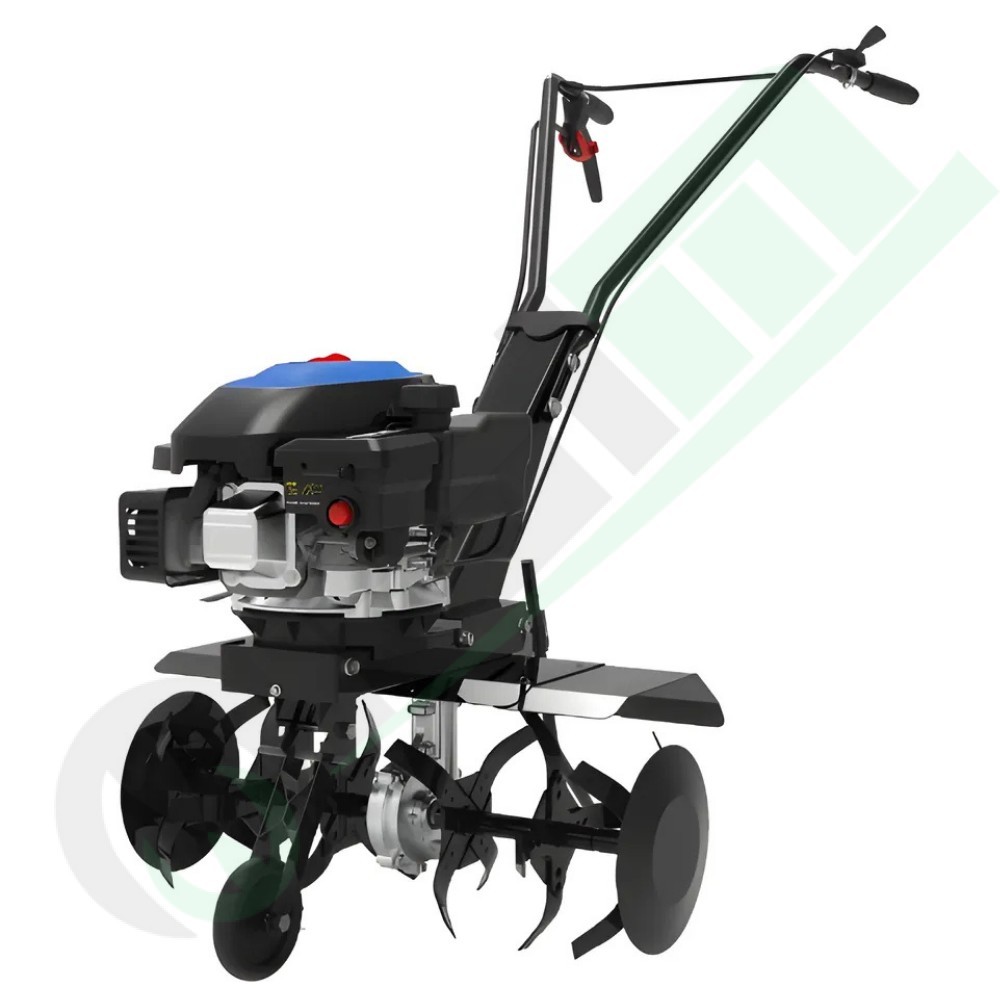

Hyundai 4-Stroke 149cc Petrol Tiller Cultivator - Code 35115

The Hyundai 35115 petrol rotary tiller is a compact and dependable agricultural machine engineered for tilling, weeding, and seedbed soil preparation across vegetable plots, greenhouses, and medium-sized gardens. Driven by a clean and fuel-efficient 149cc 4-stroke petrol engine conforming to EURO 5 emission standards, it delivers a steady power output of 2.6 kW while ensuring reduced emissions and fuel consumption. The heavy-duty rotor provides a working width of up to 500 mm with a working depth of up to 150 mm, effortlessly breaking compacted clods and aerating the soil for planting. Its solid net weight of 65 kg provides optimal ground adhesion and stable digging without bouncing, while the single forward gear transmission guarantees straightforward, ergonomic handling even for novice gardeners.

Key Features and Construction Advantages

• EURO 5 Certified 149cc 4-Stroke Engine: Delivers 2.6 kW of consistent power with low emissions and minimal fuel consumption, eliminating the need to prepare fuel-oil mixtures.
• Wide 500 mm Tilling Width: Generous working swath designed to cultivate plots and crop alleys rapidly while retaining great agility in confined spaces.
• Cultivation Depth up to 150 mm: Heat-treated steel tines designed to break hard crusts, blend organic compost, and refine the topsoil for sowing.
• Solid 65 kg Operating Stability: Balanced center of gravity uses machine mass to penetrate hard-packed soils without requiring strenuous operator effort on the handlebars.
• Ergonomic Controls and Simple Drive: Smooth single forward speed transmission that makes maneuvering straightforward, predictable, and safe for all users.

Technical Specifications

Application Areas and Machine Suitability

Sector / Application Area	Operational Capabilities & Benefits
Home Vegetable Gardens & Allotments	Fine soil tilling prior to seeding, aerating hard soil, and evenly mixing organic fertilizer or compost into topsoil beds.
Lawn and Garden Renovation	Cultivating borders, breaking compacted earth, and weeding out roots before laying new turf or planting flowerbeds.
Greenhouses and Row Crops	Effortless inter-row cultivation thanks to its 500 mm profile, ensuring smooth turnarounds and easy maneuvering in tight quarters.

Operating Guidelines and Workshop Notes: Before the initial engine start, fill the crankcase with recommended 4-stroke engine oil and fill the tank with fresh unleaded petrol. Always check the oil level with the dipstick prior to each work session. Adjust the rear drag stake to fine-tune tine working depth according to ground hardness. Clear the cultivation area of heavy rocks, wires, and tree roots to prevent damage to the rotating tines. After use, wash off soil clods from the tine rotor and mudguard to inhibit corrosion, taking care to avoid spraying water directly onto the air filter or hot exhaust muffler. Store the tiller indoors in a dry area with the fuel shut-off valve closed.
