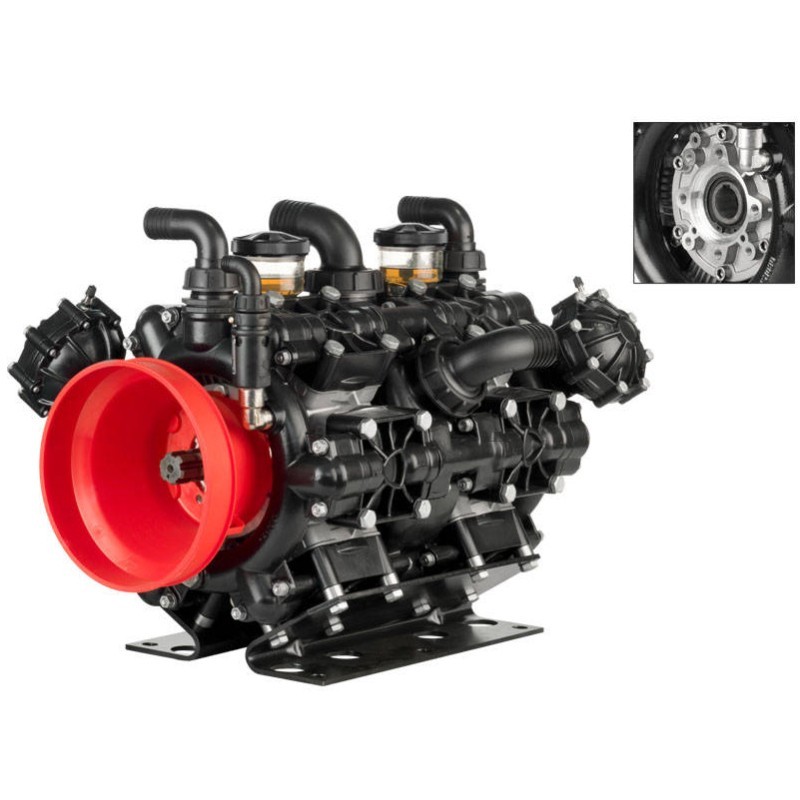

Diaphragm Pump AR 500 BP Twin C/F BlueFlex | Annovi Reverberi

Diaphragm pump AR 500 BP Twin C/F BlueFlex | Annovi Reverberi

Description:

Six plus six semi-hydraulic diaphragms pump, for low pressure applications. Parts in contact with the pumped liquids in Rilsan plasticized aluminum and AISI 303/304. Diaphragms in NBR. Seals in NBR. Die-cast casing with mechanics in oil bath, transparent plastic tanks for visual level control. Supplied with hydro-pneumatic dampers for greater regularity of operation and less pulsation in the delivery circuit. Remote control sensor available on request. Remote oil tank mounting kit available on request. Oil drain plug. Pistons with segment for greater efficiency of the “oil cushion” system for membrane protection. Valves with spherical sector profile that offer less resistance to the passage of the liquid and improve volumetric efficiency. Single central suction duct. Complete with overpressure valve with reset and cardan protection. Geomet screws. Available flanges for hydraulic motors and hydraulic pumps for speed multipliers.

Technical Features:

AR Code: 1238

Version: C/F

N. membranes: 12

Max flow rate (l/min): 489.4

Max flow rate (gpm): 129.3

Max pressure (bar): 20

Max pressure (psi): 290

Power (Hp): 23.6

Rev/min (rpm): 550

Net weight (Kg): 75

Dimensions (mm) - L: 497

Dimensions (mm) - H: 489

Dimensions (mm) - W: 697

Suction (mm): ø 60

Discharge (mm): 2 x Ø 35

Max temperature (°C): 60
