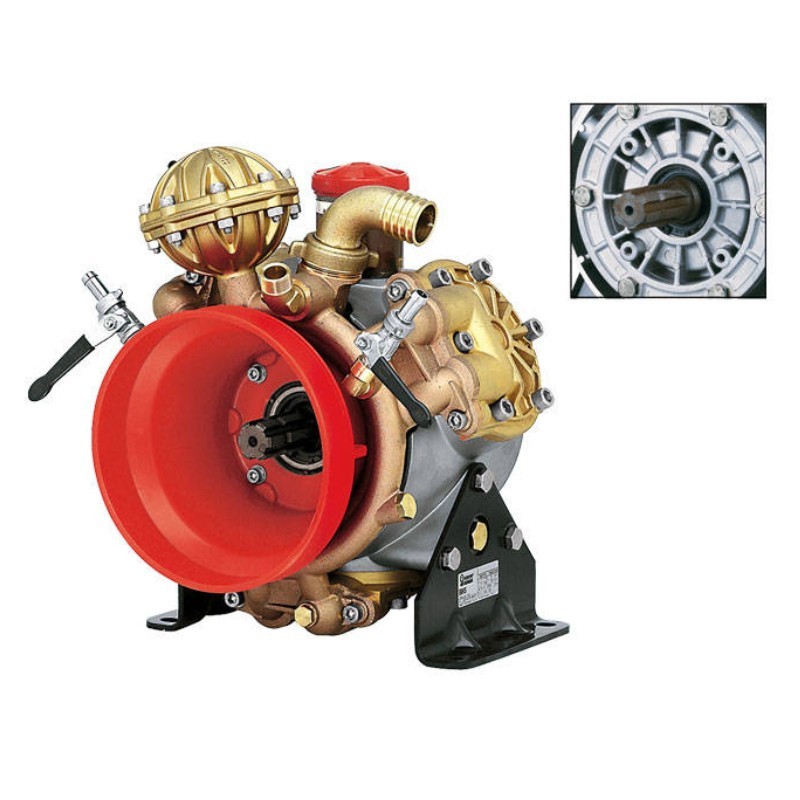

Diaphragm Pump BHA 150 AP C/C | Annovi Reverberi

Diaphragm pump BHA 150 AP C/C | Annovi Reverberi

Description:

Semi-hydraulic three-diaphragm pump, for use in the professional agricultural sector on sprayers for treatments in orchards or vineyards with plant protection products under high pressure. Parts in contact with the pumped liquids in Brass/Bronze and AISI 303/304. Diaphragms in NBR. Seals in NBR rubber. Die-cast casing with mechanics in oil bath, transparent plastic tank for visual level control. Supplied with hydro-pneumatic damper for greater regularity of operation and less pulsation in the delivery circuit. Remote control sensor available on request. Remote oil tank assembly kit available on request. Oil drain plug. Pistons with segment for greater efficiency of the “oil cushion” system for membrane protection. Newly designed membrane blocking system to avoid contact lacerations even in heavy-duty conditions. Valves with a spherical sector profile that offer less resistance to the passage of the liquid and improve volumetric efficiency. Complete with overpressure valve with reset and cardan protection. Screws with galvanic zinc plating treatment.

Technical Features:

AR Code: 763

Version: AP C/C

N. membranes: 3

Max flow rate (l/min): 142.6

Max flow rate (gpm): 37.7

Max pressure (bar): 50

Max pressure (psi): 725

Power (Hp): 16.3

Rev/min (rpm): 550

Net weight (Kg): 52

Dimensions (mm) - L: 397

Dimensions (mm) - H: 417

Dimensions (mm) - W: 490

Suction (mm): ø 40

Discharge (mm): Ø 34

Max temperature (°C): 60
