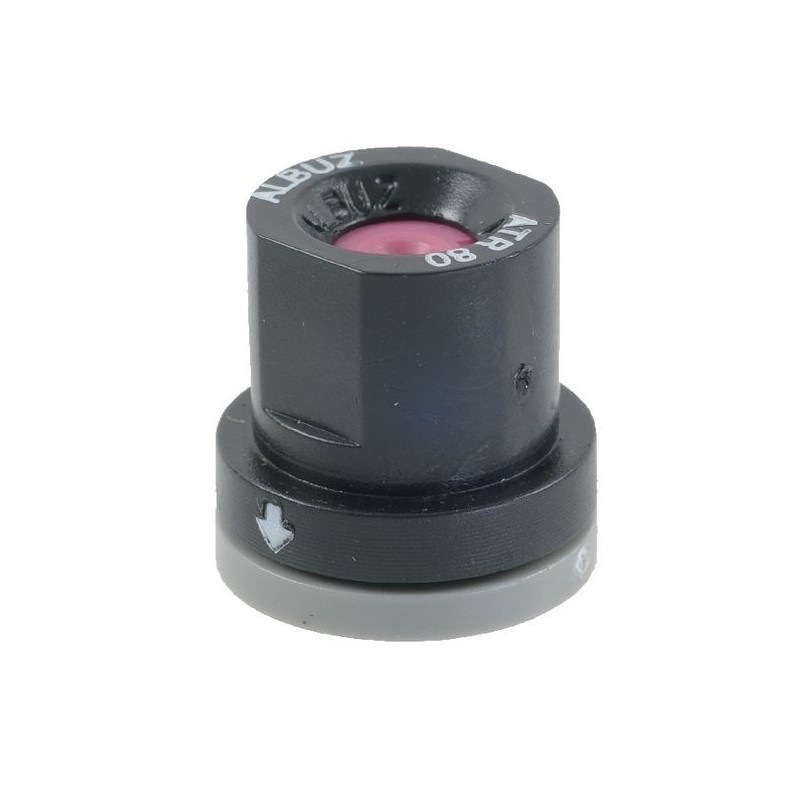

Albuz ATR 80° Ceramic Rose Nozzle

Hollow Cone Nozzle ATR Series 80° Albuz Calibrated High Precision

Product code

(to be specified for the specific product)

Certification

✅ High precision certification for agricultural applications

✅ Tested to ensure optimum performance even under high pressure conditions

Key features

✔ Hollow cone nozzle with precision calibration to ensure uniform liquid distribution

✔ Ideal for agricultural applications with atomizers and sprayers

✔ Optimized for a wide range of liquids, including pesticides, fertilizers and herbicides

✔ Designed for an 80° outlet angle for optimal coverage

Safety and protection

? Safe to use in all expected working conditions, with resistance to high pressures (up to 25 bar)

? Made of Delrin and Ceramic, durable materials resistant to wear and corrosion

Technologies and materials

✔ Materials: Delrin+Ceramic

✔ Working pressure: from 5 bar to 25 bar

✔ Outlet angle: 80°

✔ Available in various colors for easy identification of the flow rate (White, Lilac, Brown, Yellow, Orange, Red, Gray, Green, Black, Blue)

Sectors of use

? Agricultural sector: for spraying on crops, weeding and plant treatment

? Used in atomizers for homogeneous distribution

Flow rate and pressure

White: 0.27 ÷ 0.58 l/min

Lilac: 0.36 ÷ 0.77 l/min

Brown: 0.48 ÷ 1.04 l/min

Yellow: 0.73 ÷ 1.61 l/min

Orange: 0.99 ÷ 2.16 l/min

Red: 1.38 ÷ 2.97 l/min

Gray: 1.50 ÷ 3.20 l/min

Green: 1.78 ÷ 3.80 l/min

Black: 2.00 ÷ 4.28 l/min

Blue: 2.45 ÷ 5.25 l/min
