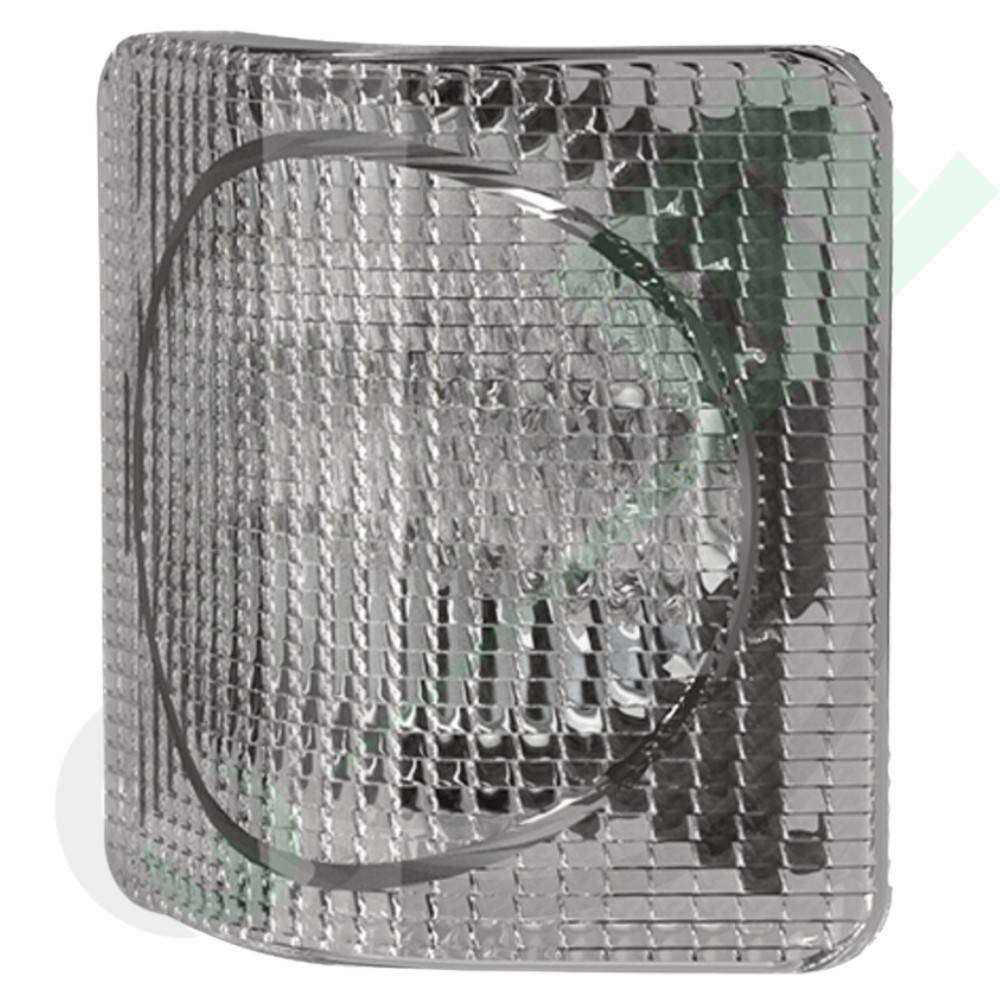

GRANIT Oval LED Work Light 11256365 | 32W | 3500 lm | FENDT CASE IH | Replaces G916901020010

The GRANIT LED work light 11256365 offers high-performance long-range illumination, ideal for replacing standard headlights on compatible Case IH, Fendt, and Steyr tractors. With 32 Watts of power and an effective luminous flux of 3500 lumens, it guarantees optimal visibility. The IP6K9K protection, black body, and vertical screw mounting ensure its robustness and compatibility.

Technical Data

• Part Number: 11256365 (GRANIT).
• Light Function: Long range illumination.
• Nominal Voltage (V): 12 / 24.
• Voltage (Volt): 10 - 30.
• Power Consumption (W): 32.
• LED Quantity: 10.
• Effective Luminous Flux (lm): 3500.
• Theoretical Luminous Flux (lm): 7000.
• Light Color (K): 5000-6500.
• Lamp Type: LED (Bulbs included: Yes).
• Protection Type: IP6K9K.
• Temperature Range (°C): -40 / +50.
• Control Mark: ECE R10.
• EMC: CISPR25 Class 5.
• Body Color: Black.

Dimensions and Mounting

• Shape: Oval.
• Dimensions L x H x D (mm): 112 x 154 x 54.
• Mounting Method: Vertical; screwed.
• Connection: AMP Plug.

Original References

• 134672400
• G916901020010

Compatible Machine Models (Brand - Series - Model)

• CASE IH - CS Series:
  • CS 100 (4/00-7/03), CS 110 (4/00-7/03), CS 110 (4/96-4/00), CS 120 (4/00-7/03), CS 120 (4/96-4/00), CS 130 (4/00-7/03), CS 130 (4/96-4/00), CS 150 (4/00-7/03), CS 150 (4/96-4/00)
• FENDT - Favorit 900 Series:
  • Favorit 916 (Typ 916), Favorit 920 (Typ 920), Favorit 924 (Typ 924), Favorit 926 (Typ 926)
• FENDT - Fendt 900 Series:
  • Fendt 916 (Typ 916), Fendt 920 (Typ 920), Fendt 924 (Typ 924), Fendt 926 (Typ 926), Fendt 930 (Typ 930)
• STEYR - 9100 Series:
  • 9105 (4/00-7/03), 9105 (4/96-4/00), 9115 (4/00-7/03), 9115 (4/96-4/00), 9125 (4/00-7/03), 9125 (4/96-4/00), 9145 (4/00-7/03), 9145 (4/96-4/00)
