Hydraulic directional valve Z50 7 spool double acting 87000926
Hydraulic directional control valve Z50 part number 87000926, featuring 7 double acting spools and OEM reference 07Z50 1 (7x) 1A GKZ1. Built as a monoblock cast iron valve with 4/3 way spring return, 40 l/min flow rate, max pressure 250 bar, 1/2 inch BSP P-T-N ports, and 3/8 inch BSP A-B ports for agricultural and industrial applications.
Read more ↓- 7-spool double-acting control
- One-piece cast steel housing
- Integrated main relief valve
€340.00VAT incl.
⚡ Limited-time deal
00days
:00hrs
:00min
:00sec
Coupon
-€6.80
-2% sul carrello
Sconto extra riservato ai clienti registrati
Accedi per sbloccare il codicePrezzo finale con coupon: €333.20
Not sure it fits?Message us with your tractor model
WhatsAppSecure paymentsEasy returnsFree shipping over €30 + VAT
Description

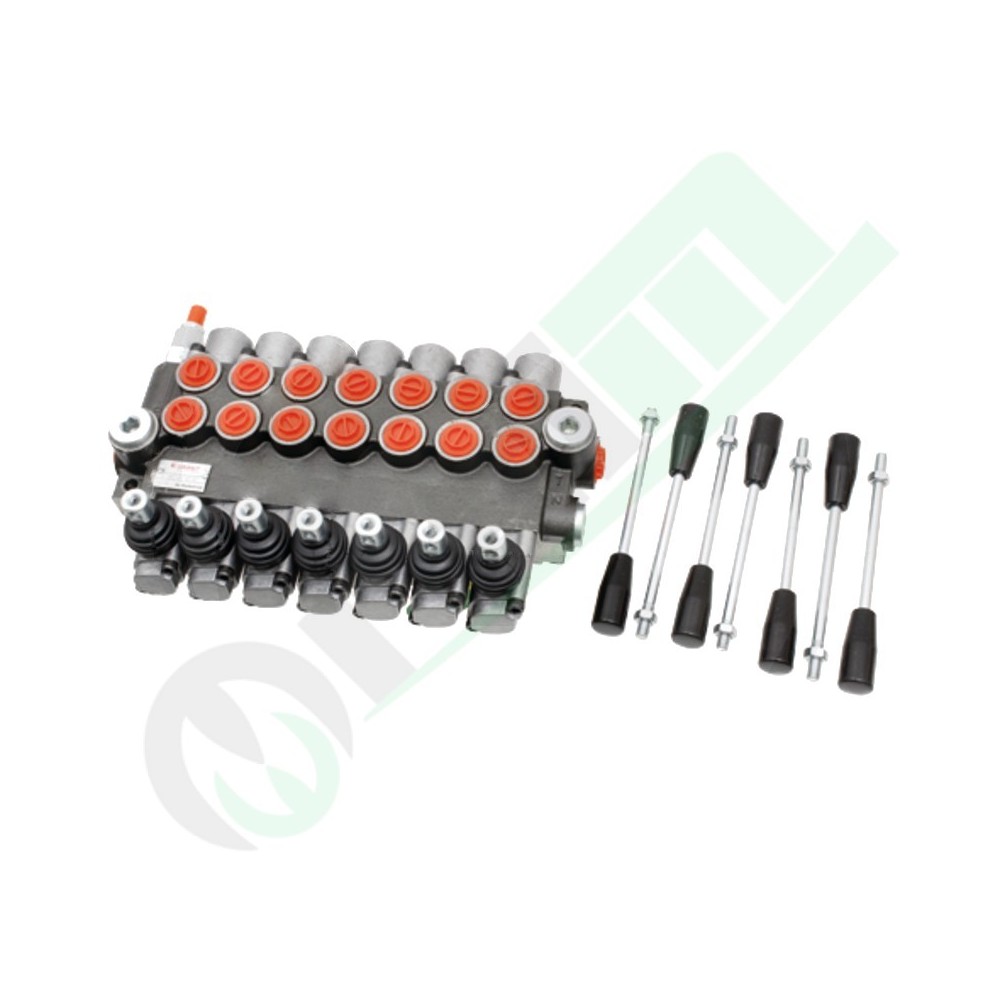

Z50 monoblock hydraulic directional control valve 7-spool double-acting - Part number 87000926
Z50 series 7-spool manual monoblock hydraulic directional control valve, commercial part number 87000926. Manufactured with a high-strength cast steel body, it features a 4/3-way spool configuration with 7 double-acting services, spring return to neutral, and closed centers. Rated for a nominal flow of 40 l/min with an integrated main relief valve adjustable between 120 and 250 bar, it is ideal for hydraulic systems on agricultural, earthmoving, and industrial equipment. It ensures dependable duty cycles across oil temperatures from -15°C to +80°C with minimal internal leakage.
Key features
7-spool double-acting controlIndependent operation of 7 double-acting cylinders or hydraulic motors with automatic spring centering.
One-piece cast steel housingRigid monoblock construction designed to absorb hydraulic pressure spikes and heavy mechanical stresses.
Integrated main relief valveSystem pressure protection adjustable across a range from 120 to 250 bar.
Standard BSP threaded portsP, T, and N supply and return lines in G 1/2" alongside A and B work ports in G 3/8" for leak-free fittings.
Minimal internal spool leakageTight internal clearances limiting leakage to approx. 15 cm³/min at 120 bar for solid load holding.
Specifications
| Commercial part number | 87000926 |
|---|---|
| OEM reference | 07Z50 1 (7x) 1A GKZ1 |
| Product type | Monoblock hydraulic directional control valve |
| Body material | Cast steel |
| Number of spools | 7 |

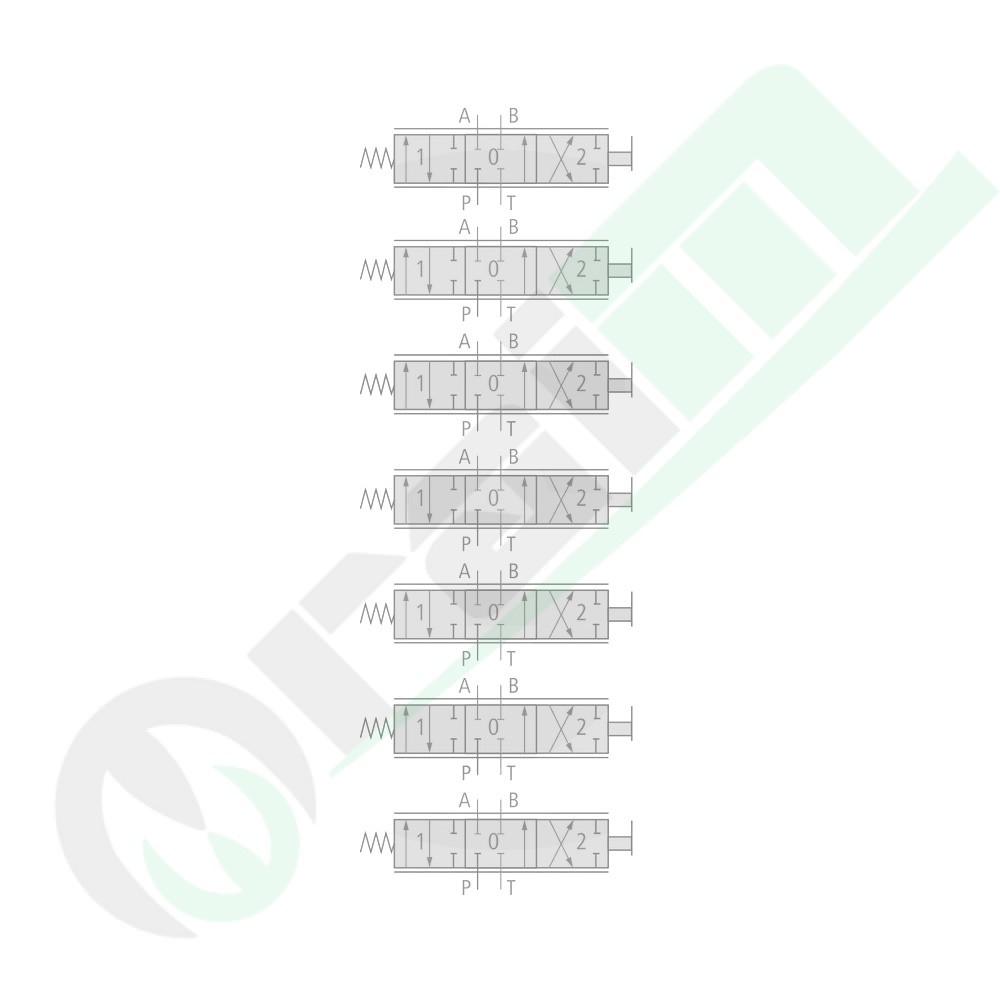

| Spool function | 4/3-way, 7 x double-acting (A-B closed / spring return) |
| Nominal flow rate | 40 l/min |
| Nominal pressure (PN) | 250 bar |
| Nominal pressure P - N | 250 bar |
| Nominal pressure A - B | 300 bar |
| Nominal pressure T (tank) | 50 bar |
| Relief valve adjustment range | 120-250 bar |
| Port P (BSP) | G 1/2" |
| Port T (BSP) | G 1/2" |
| Port N (BSP) | G 1/2" |
| Ports A-B (BSP) | G 3/8" |
| Dimension A | 60 mm |
| Dimension B | 80 mm |
| Dimension C | 304 mm |
| Dimension D | 272 mm |
| Operating oil temperature | from -15°C to +80°C |
| Fluid contamination level | Class 10 according to NAS 1638 |
| Internal leakage | approx. 15 cm³/min at 120 bar |
Fitting tipsSecure the valve body onto a flat and rigid mounting surface matching the hole dimensions to eliminate structural twisting of the cast housing. Connect hydraulic lines carefully: feed line to port P (G 1/2"), tank return line to port T (G 1/2"), and actuator circuits to ports A and B (G 3/8"). Ensure hydraulic oil filtration conforms to NAS 1638 class 10 standard and purge trapped air from all circuits by running initial cycles under low pressure. Always check the primary relief valve pressure setting with a pressure gauge before commissioning.
