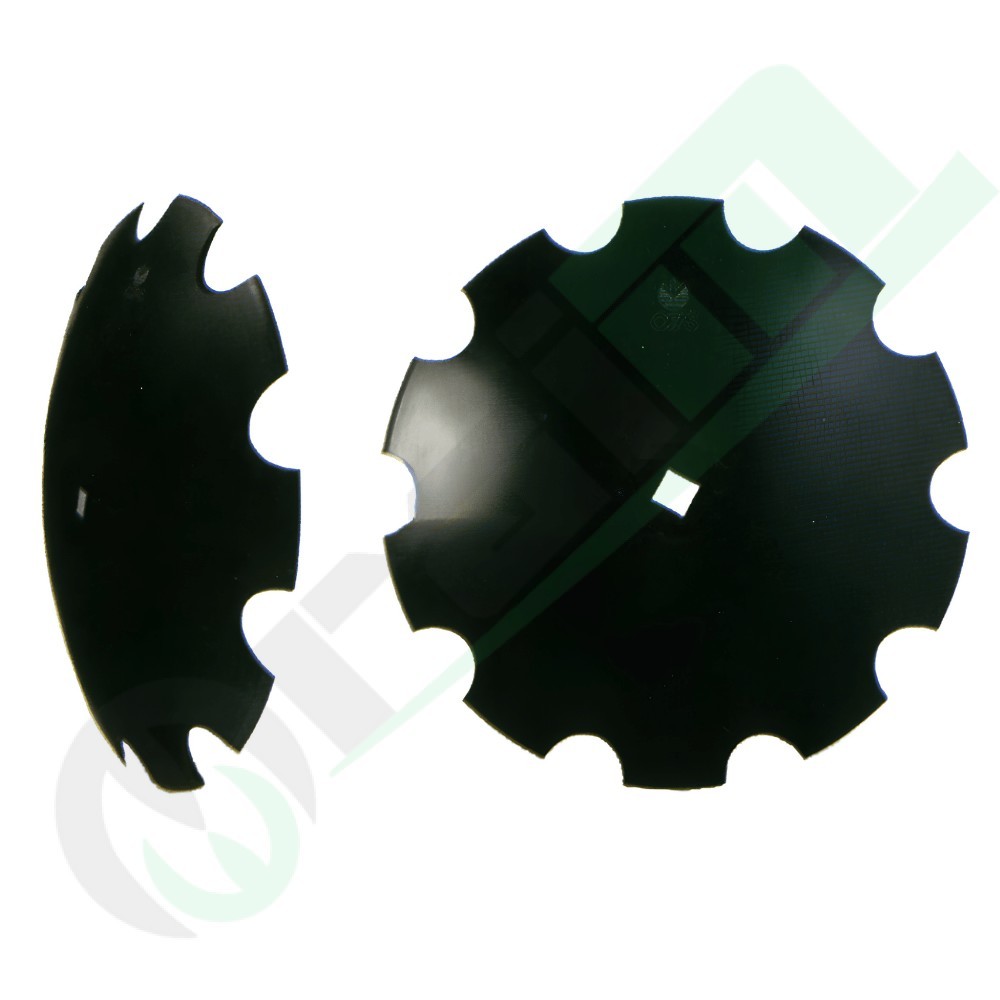

Notched disc harrow blade 55424 diameter 510 mm square 31 OEM 2124251

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

OfasRef. OEM

Notched disc harrow blade 55424 diameter 510 mm square 31 OEM 2124251

Notched disc harrow blade part number 55424 suitable for disc harrows, matching original OEM reference Rinieri 2124251. Manufactured from durable 30 MnB 5 boron steel, it features a 510 mm diameter, 31 mm center square hole, 3.5 mm thickness, and 61 mm concavity, delivering aggressive crop residue cutting and dependable soil turning.

Fits

RinieriRinieri disc harrows

See full table ↓

€27.90VAT incl.

Coupon -€0.56 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €27.34

Shipping always charged for this item Not eligible for free shipping: even above €30.00 you pay its shipping. The rest of your order still ships free.

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Notched harrow disc blade for Rinieri 510 mm square bore 31 mm - Part number 55424

Replacement notched disc harrow blade for agricultural disc harrows and soil cultivators, commercial part number 55424. Engineered for aggressive clod crushing, soil fracturing, and thorough slicing of heavy crop residues, it delivers exceptional ground penetration even in heavy, compacted conditions. Compatible with Rinieri implements as a direct replacement for OEM reference 2124251. Manufactured from high-tensile 30 MnB5 boron steel, it ensures outstanding resistance to abrasive wear along with structural elasticity to withstand sudden stone impacts. It features an overall diameter of 510 mm, a 61 mm dish concavity, a 3.5 mm plate thickness, and a 31 mm square center bore for heavy-duty gang axle mounting.

Key features

30 MnB5 boron steelHeat-treated alloy steel formulation engineered to maximize surface hardness against abrasion while resisting shock loads.

Notched cutting edgeScalloped perimeter designed to maintain continuous gang rotation, slice dense root systems, and tackle hard untilled ground.

Calibrated 61 mm dish concavityCurvature profile optimized for effective soil turnover, clod fracturing, and residue burial into the seedbed.

31 mm square center holeHeavy-duty central opening ensuring a secure, non-slip lock onto matching large-section harrow gang axles.

Rinieri OEM fitDirect interchangeability with original equipment reference 2124251 for dependable equipment servicing.

Compatibility

Rinieri disc harrows

Rinieri (OEM ref. 2124251)

Specifications

Commercial part number	55424
OEM reference	2124251
Machine manufacturer	Rinieri
Product type	Notched disc harrow blade
Material	Boron steel 30 MnB5
Diameter	510 mm
Center bore	Square 31 mm
Thickness	3.5 mm
Concavity	61 mm

Fitting tipsBefore installing the disc onto the square gang axle, remove all dirt buildup, rust, and surface burrs from the shaft and mating spool spacers. Slide the notched blade into position ensuring the 61 mm dish concavity and cutting notches face the required operating angle of the gang assembly. Ensure that the 31 mm square bore seats flush onto the shaft without excessive bind to eliminate localized stress points. Torque the axle gang nut to the equipment manufacturer's specified rating and check the complete disc pack for proper tightness after the initial operational hours in the field.
