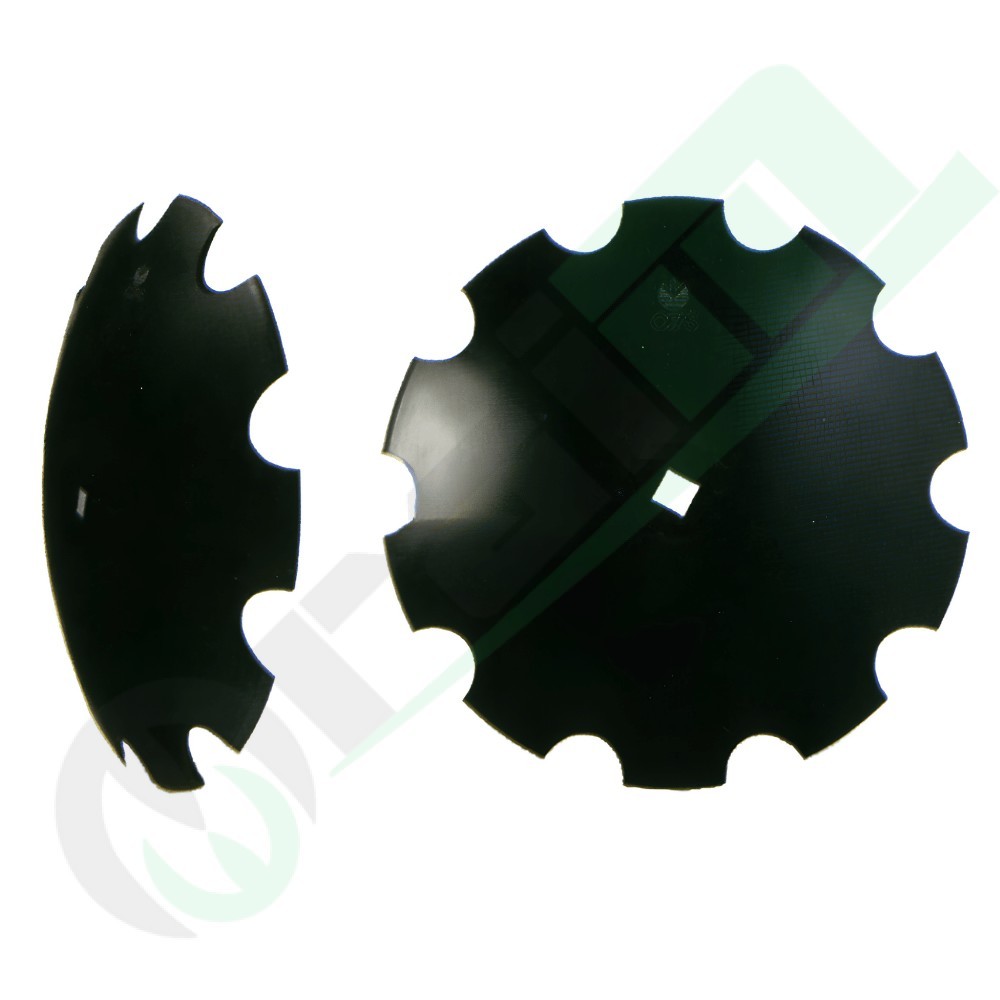

Notched disc harrow blade 55411 diameter 560 mm square 31 OEM CZ001222

-20%

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

OfasRef. OEM

Notched disc harrow blade 55411 diameter 560 mm square 31 OEM CZ001222

Notched disc harrow blade part number 55411 designed for heavy duty soil cultivation machinery, matching OEM reference Faza CZ001222. Manufactured from durable 30 MnB 5 boron steel, it features a 560 mm diameter, 31 mm central square hole, 4.5 mm plate thickness, and 72 mm concavity, ensuring aggressive residue cutting and field reliability.

Fits

FazaFaza disc harrows

See full table ↓

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Notched harrow disc blade for Faza 560 mm square bore 31 mm - Part number 55411

Replacement notched disc harrow blade for agricultural disc harrows and soil cultivators, commercial part number 55411. Engineered for primary soil fracturing, aggressive clod crushing, and thorough slicing of heavy crop residues, it delivers exceptional ground penetration even in heavy, compacted conditions. Compatible with Faza implements as a direct replacement for OEM reference CZ001222. Manufactured from high-tensile 30 MnB5 boron steel, it ensures superior resistance to abrasive wear along with structural elasticity to withstand sudden impacts with buried stones. It features an overall diameter of 560 mm, a deep 72 mm dish concavity, a heavy-duty 4.5 mm plate thickness, and a 31 mm center square bore for heavy-duty axle mounting.

Key features

30 MnB5 boron steelHeat-treated alloy steel formulation engineered to maximize surface hardness against abrasion while resisting shock loads.

Notched cutting edgeScalloped perimeter designed to maintain continuous gang rotation, slice dense root systems, and tackle hard untilled ground.

Deep 72 mm dish concavityCalibrated curvature profile optimized for effective soil turnover, clod fracturing, and residue burial into the seedbed.

Heavy-duty 4.5 mm thicknessReinforced disc plate built to withstand high torsional loads and prolonged operational wear in abrasive soils.

31 mm square center holeHeavy-duty central opening ensuring a secure, non-slip lock onto matching large-section harrow gang axles.

Faza OEM fitDirect interchangeability with original equipment reference CZ001222 for dependable equipment servicing.

Compatibility

Faza disc harrows

Faza (OEM ref. CZ001222)

Specifications

Commercial part number	55411
OEM reference	CZ001222
Machine manufacturer	Faza
Product type	Notched disc harrow blade
Material	Boron steel 30 MnB5
Diameter	560 mm
Center bore	Square 31 mm
Thickness	4.5 mm
Concavity	72 mm

Fitting tipsBefore installing the disc onto the square gang axle, clean off all accumulated dirt, rust, and surface burrs from the shaft and mating spool spacers. Slide the notched blade into position ensuring the 72 mm dish concavity and cutting notches face the required operating angle of the gang assembly. Ensure that the 31 mm square bore seats flush onto the shaft without excessive bind to eliminate localized stress points. Torque the axle gang nut to the equipment manufacturer's specified rating and check the complete disc pack for proper tightness after the initial operational hours in the field.
