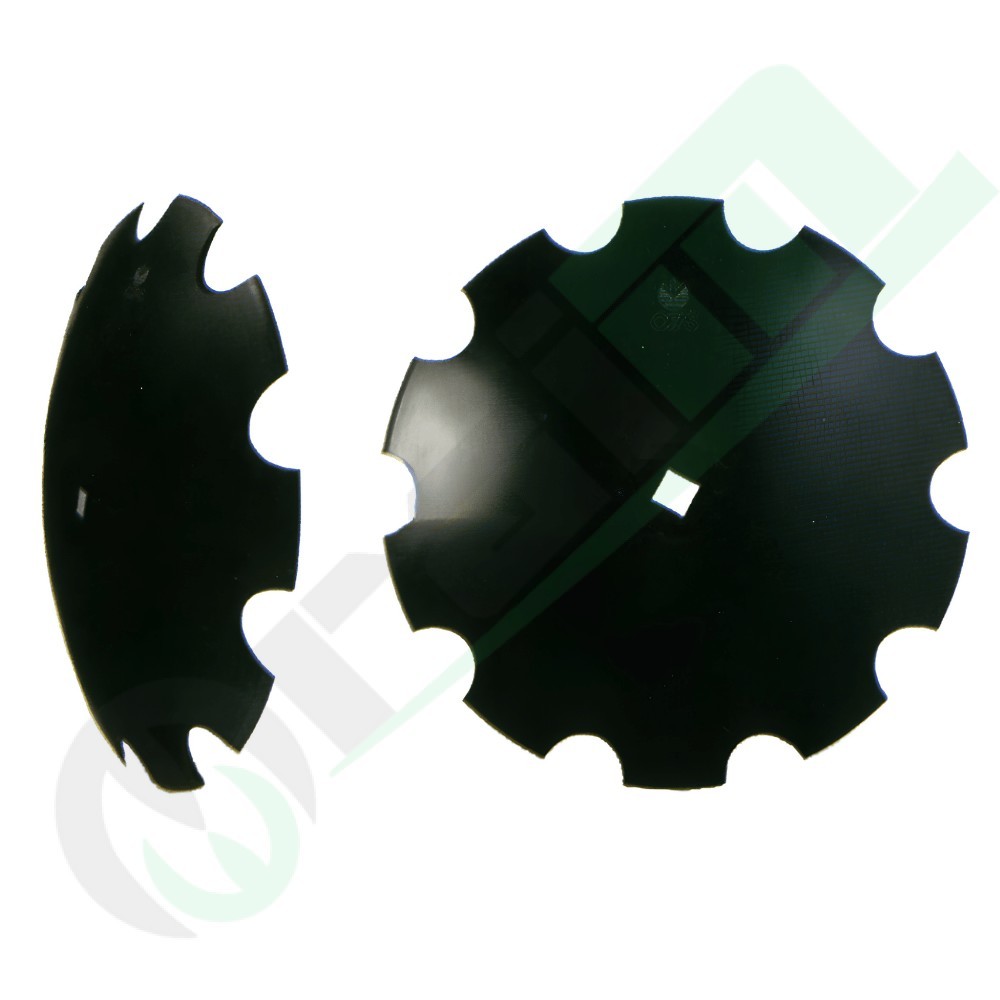

Notched disc harrow blade 56391 diameter 660 mm square 41 OEM 3362416606

iPhotos are indicative: the product may differ in some details. Refer to the specifications.

OfasRef. OEM

Notched disc harrow blade 56391 diameter 660 mm square 41 OEM 3362416606

Notched disc harrow blade part number 56391 engineered for heavy duty tillage machinery, matching OEM reference Agriway 3362416606. Manufactured from 30 MnB 5 boron steel, it features a 660 mm diameter, 41 mm square center hole, heavy duty 6 mm thickness, and 100 mm concavity, delivering aggressive crop residue cutting and maximum durability.

Fits

AgriwayAgriway disc harrows

See full table ↓

€86.90VAT incl.

Coupon -€1.74 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €85.16

Shipping always charged for this item Not eligible for free shipping: even above €30.00 you pay its shipping. The rest of your order still ships free.

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Notched harrow disc blade for Agriway 660 mm square bore 41 mm - Part number 56391

Replacement notched disc harrow blade for heavy agricultural disc harrows and deep tillage equipment, commercial part number 56391. Engineered for primary soil fracturing, aggressive clod crushing, and thorough slicing of heavy crop residues, it delivers exceptional ground penetration even in heavy, compacted conditions. Compatible with Agriway implements as a direct replacement for OEM reference 3362416606. Manufactured from high-tensile 30 MnB5 boron steel, it ensures superior resistance to abrasive wear along with structural elasticity to endure severe impacts against buried stones. It features an extra-large overall diameter of 660 mm, a deep 100 mm dish concavity, an extra-heavy 6 mm plate thickness, and a 41 mm center square bore for large-section gang axle mounting.

Key features

30 MnB5 boron steelHeat-treated alloy steel formulation engineered to maximize surface hardness against abrasion while resisting severe shock loads.

Notched cutting edgeScalloped perimeter designed to maintain continuous gang rotation, slice dense root systems, and tackle hard untilled ground.

Deep 100 mm dish concavityPronounced curvature profile optimized for effective soil turnover, clod fracturing, and residue burial into the seedbed.

Extra-heavy 6 mm thicknessRobust disc plate engineered to withstand extreme torsional stress and prolonged wear in harsh, heavy soils.

41 mm square center holeHeavy-duty central opening ensuring a secure, non-slip lock onto matching large-section harrow gang axles.

Agriway OEM fitDirect interchangeability with original equipment reference 3362416606 for dependable equipment servicing.

Compatibility

Agriway disc harrows

Agriway (OEM ref. 3362416606)

Specifications

Commercial part number	56391
OEM reference	3362416606
Machine manufacturer	Agriway
Product type	Notched disc harrow blade
Material	Boron steel 30 MnB5
Diameter	660 mm
Center bore	Square 41 mm
Thickness	6 mm
Concavity	100 mm

Fitting tipsBefore installing the disc onto the square gang axle, clean off all dirt buildup, rust, and surface burrs from the shaft and mating spool spacers. Slide the notched blade into position ensuring the 100 mm dish concavity and cutting notches face the required operating angle of the gang assembly. Ensure that the 41 mm square bore seats flush onto the shaft without excessive bind to eliminate localized stress points. Torque the axle gang nut to the equipment manufacturer's specified rating and check the complete disc pack for proper tightness after the initial operational hours in the field.
