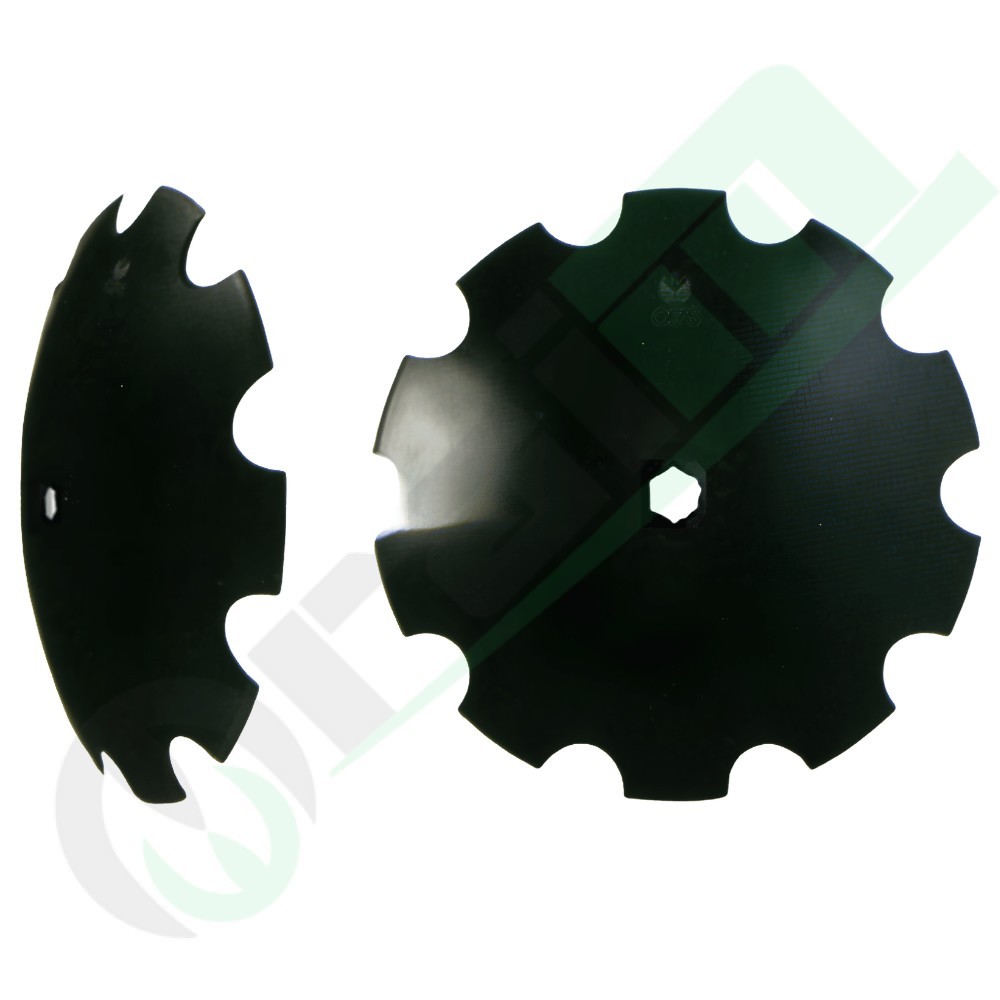

Notched disc harrow blade 55423 diameter 510 mm hex hole 37 mm

Notched disc harrow blade part number 55423 engineered for agricultural soil cultivation and disc harrows. Manufactured from high strength 30 MnB 5 boron steel, it features a 510 mm outer diameter, 37 mm hexagonal center hole, 3.5 mm plate thickness, and 61 mm concavity, delivering aggressive crop residue cutting and dependable durability in the field.

30 MnB5 boron steel
Notched cutting edge
Calibrated 61 mm dish concavity

€33.90VAT incl.

Coupon -€0.68 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €33.22

Shipping always charged for this item Not eligible for free shipping: even above €30.00 you pay its shipping. The rest of your order still ships free.

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Notched harrow disc blade 510 mm hex bore 37 mm - Part number 55423

Replacement notched disc harrow blade for agricultural disc harrows and soil cultivators, commercial part number 55423. Engineered for primary soil fracturing, aggressive clod crushing, and thorough slicing of crop residues, it delivers exceptional ground penetration even in heavy, compacted conditions. Manufactured from high-tensile 30 MnB5 boron steel, it ensures superior resistance to abrasive wear along with structural elasticity to withstand sudden stone impacts. It features an overall diameter of 510 mm, a 61 mm dish concavity, a 3.5 mm plate thickness, and a 37 mm central hexagonal bore for mounting on hexagonal gang shafts.

Key features

30 MnB5 boron steelHeat-treated alloy steel formulation engineered to maximize surface hardness against abrasion while resisting shock loads.

Notched cutting edgeScalloped perimeter designed to maintain continuous gang rotation, slice dense root systems, and tackle untilled ground.

Calibrated 61 mm dish concavityCurvature profile optimized for effective soil turnover, clod fracturing, and residue burial into the seedbed.

Calibrated 3.5 mm thicknessDisc plate thickness balanced for easy ground penetration, reduced draft requirement, and operational durability.

37 mm hexagonal center holeAccurately sized hexagonal opening ensuring positive drive and eliminating rotational play on matching gang axles.

Specifications

Commercial part number	55423
Product type	Notched disc harrow blade
Material	Boron steel 30 MnB5
Diameter	510 mm
Center bore	Hexagonal 37 mm
Thickness	3.5 mm
Concavity	61 mm

Fitting tipsBefore installing the disc onto the hexagonal gang axle, clean off all dirt buildup, rust, and surface burrs from the shaft and mating spool spacers. Slide the notched blade into position ensuring the 61 mm dish concavity and cutting notches face the required operating angle of the gang assembly. Ensure that the 37 mm hexagonal bore seats flush onto the shaft flats without excessive bind to eliminate localized stress points. Torque the axle gang nut to the equipment manufacturer's specified rating and check the complete disc pack for proper tightness after the initial operational hours in the field.
