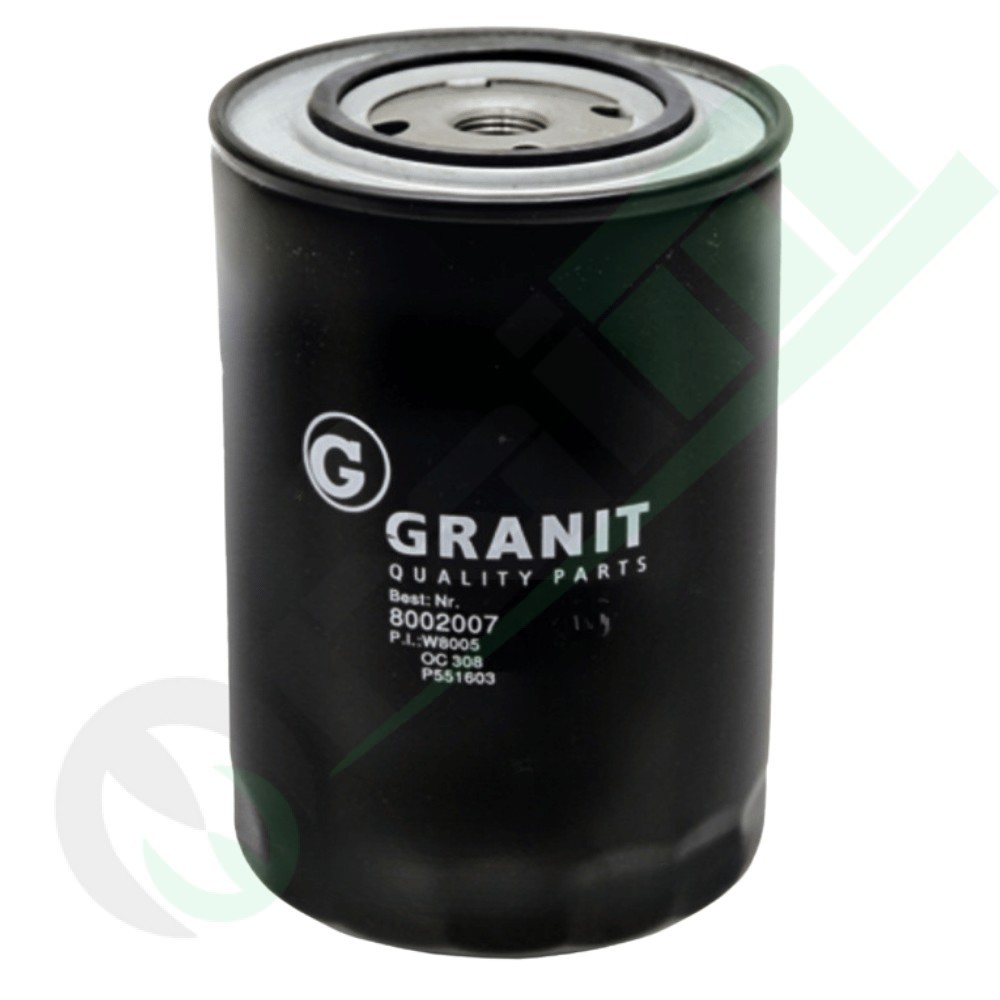

Engine Oil Filter 8002007 for Fiat Same Kubota Ford New Holland Tractors
Engine Oil Filter 8002007 for Fiat Same Kubota Ford New Holland Tractors
iPhotos are indicative: the product may differ in some details. Refer to the specifications.
GranitRef.

Engine Oil Filter 8002007 for Fiat Same Kubota Ford New Holland Tractors

Spin-on engine oil filter part number 8002007 (height 170 mm, outer diameter 108 mm, thread 3/4"-16 UNF). Features an anti-drainback valve and 1 bar internal bypass valve. Equivalent to OEM references Fiat 1909101, 4600785, 4600875; Same 2.4419.170.1, 0.041.1556.0; Kubota 1654399170, 7000015451; Mann W 8005; Hifi SO 287. Engineered for Fiat Series 46, 56, 66, 80, 86, 88, 90, TK crawlers, Same Buffalo, Drago, Kubota M Series, Ford, and Laverda combines.

Fits

ManufacturerFiat / FiatagriSameNew HollandKubotaFord+1

See full table ↓

€11.90VAT incl.
Coupon -€0.24 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €11.66

Not sure it fits?Message us with your tractor model
WhatsApp
Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Spin-on engine oil filter part number 8002007 (height 170 mm, outer diameter 108 mm, thread 3/4"-16 UNF). Features an anti-drainback valve and 1 bar internal bypass valve. Equivalent to OEM references Fiat 1909101, 4600785, 4600875; Same 2.4419.170.1, 0.041.1556.0; Kubota 1654399170, 7000015451; Mann W 8005; Hifi SO 287. Engineered for Fiat Series 46, 56, 66, 80, 86, 88, 90, TK crawlers, Same Buffalo, Drago, Kubota M Series, Ford, and Laverda combines.

Key features

High-Efficiency Lube FiltrationHigh-density internal filter media captures combustion soot, sludge, and fine metallic wear debris to protect crankshaft journals and engine bearings.
Built-In Anti-Drainback ValveRetains lubricating oil inside the canister during shutdown periods, ensuring immediate oil pressure delivery on cold engine start-ups.
1.0 Bar Safety Bypass ValveProvides uninterrupted lubrication flow during high differential pressure situations, such as cold starts with high-viscosity oil or partial clogging.
Precision Heavy-Duty GasketPremium elastomer seal (62 mm inner diameter x 71 mm outer diameter) designed to withstand high operational temperatures and vibrations without leaking.

Compatibility

ManufacturerAgricultural Equipment Model Series
Fiat / Fiatagri465666 Series: 55-4660-4665-46 | 55-5660-5665-5670-56 | 45-6645-66 S50-6650-66 S55-6656-66 S60-66 (FS)65-66 (S)70-66 (FLPS)80-66 (FS)766
SameBuffalo 120Buffalo 3000 | Drago 100
New HollandTL Series: TL100
KubotaM Series: M 5500 (DT)M 5950M 5970M 6030 (DT)M 6950 (DT)M 7030 (DTMDTSU)M 7500M 7580 (DT)M 7950 (DT)M 8030 (DT)M 8580 (DT)M 8950 (S)M 9580
Ford10 Series: 301040105010 | 35 Series: 3435393541354635
Laverda (Combine Harvesters)3000 Series: 3300335034003450 | M Series: M 132M 150M 152

Specifications

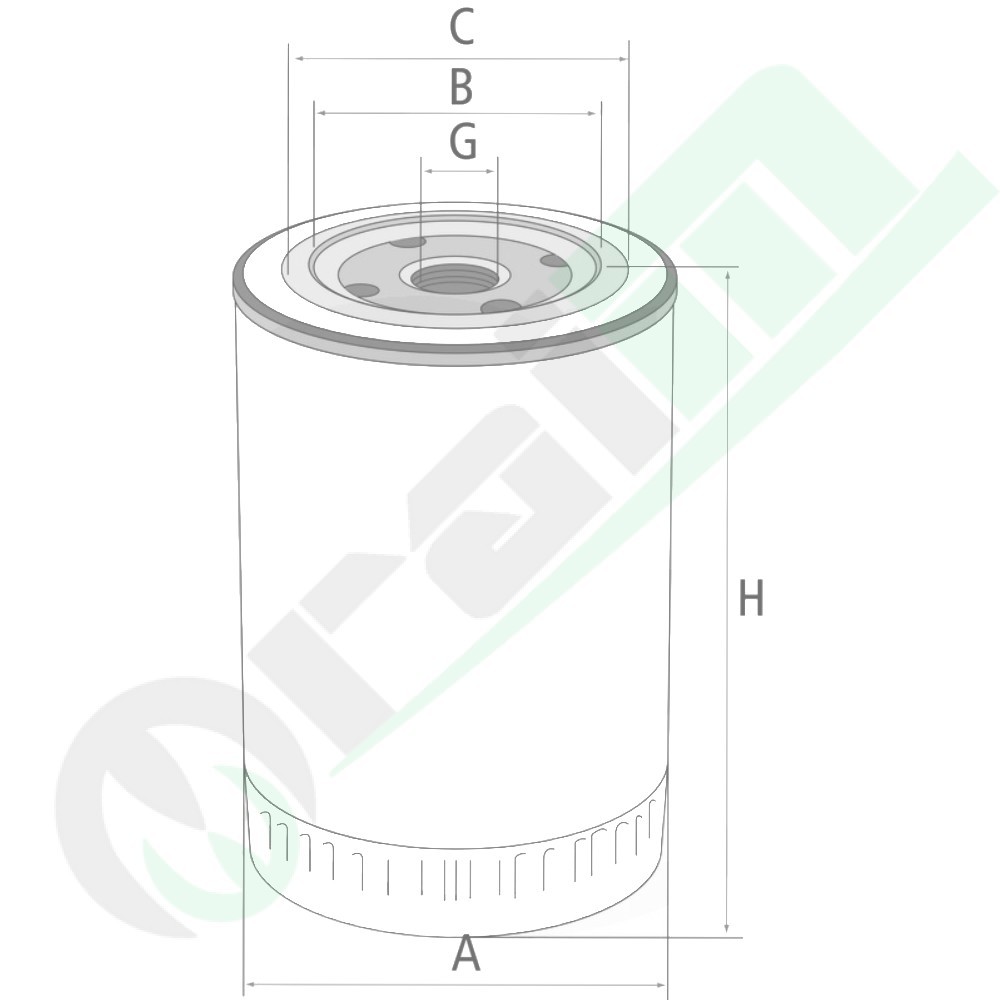

Commercial Part Number8002007
Filter Style / ConfigurationFull-flow spin-on engine lube filter canister
Total Height / H170 mm
Outer Diameter / A108 mm
Thread Size / G3/4"-16 UNF
Gasket Dimensions (B x C)Inner Diameter (B): 62 mm | Outer Diameter (C): 71 mm
Bypass Valve Opening PressureIntegrated, initial setting: 1.0 bar
Anti-Drainback DeviceIntegrated (Anti-Drainback Valve)
