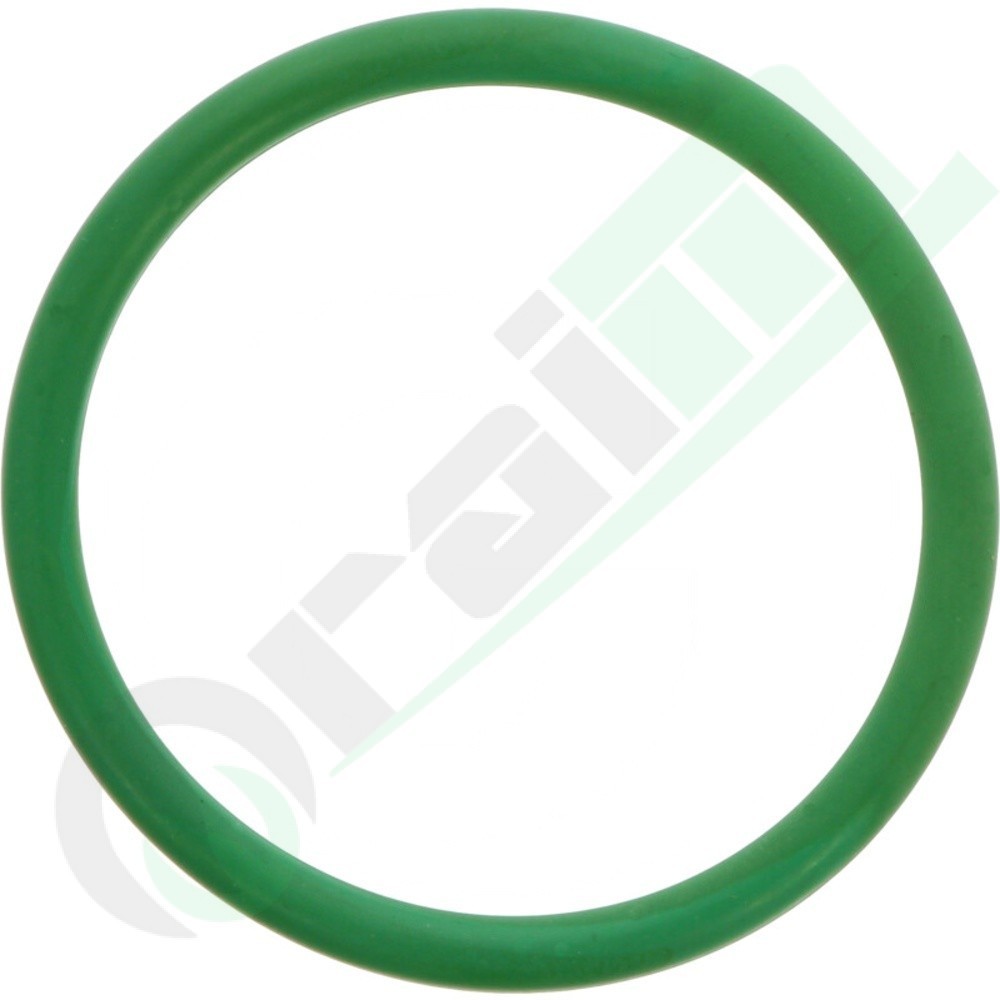

FENDT sealing joint part 165F934201710250 fuel injection part

Genuine FENDT sealing joint part number 165F934201710250, engineered for high-pressure fuel injection systems. Matching replacement part for BOSCH injection pump 2580414693007. Delivers superior sealing integrity, preventing fuel leaks and pressure drops in agricultural tractor engines.

High-grade elastomer formulation
High-pressure fluid containment
Thermal and mechanical degradation resistance

€34.90VAT incl.

Coupon -€0.70 -2% sul carrello

Sconto extra riservato ai clienti registrati

Accedi per sbloccare il codice

Prezzo finale con coupon: €34.20

Not sure it fits?Message us with your tractor model

Secure paymentsEasy returnsFree shipping over €30 + VAT

Description

Injection pump sealing joint / Gasket - Part number 165F934201710250

Replacement sealing joint and sealing ring for Unit Pump Systems (PLD / UPS), commercial part number 165F934201710250. Essential component engineered to ensure a fluid-tight seal at the interface between the injection pump unit and the engine block or fuel feed circuit. Manufactured from high-grade fluorinated elastomers (FKM/Viton) or composite sealing materials, it retains its elasticity and structural geometry under high operating temperatures, pressure spikes, and continuous exposure to diesel fuel and engine oils. Prevents internal fuel dilution into the crankcase and maintains proper low-pressure circuit priming. Replacement spare part specifically matched to Bosch unit injection pump part number 2580414693007.

Key features

High-grade elastomer formulationFormulated specifically to resist chemical attack from modern diesel fuels, engine lubricants, and severe thermal cycles.

High-pressure fluid containmentPrevents fuel leaks and pressure drops across the injection pump mounting interface.

Thermal and mechanical degradation resistancePrevents hardening, cracking, and permanent compression set over long service intervals.

Precision fitmentEngineered to exact OEM dimensions for seamless seating without the need for additional liquid sealants.

Directly matched spare partRecommended specifically for servicing and reassembling Bosch unit injection pump 2580414693007.

Specifications

Commercial part number	165F934201710250
Product type	Sealing joint / Sealing ring for fuel injection pump
Primary matched product	Bosch injection pump part number 2580414693007
Material	High-temperature chemical-resistant elastomer (FKM/Viton)
Primary function	Hydraulic and environmental sealing for fuel injection system

Fitting tipsPrior to fitting the new sealing joint, thoroughly clean the mounting recess on both the pump body and the engine block bore, removing all dirt, carbon, and old gasket remnants. Inspect the sealing surfaces for scratches or burrs that could compromise the seal. Lightly coat the sealing joint with clean diesel fuel or dedicated assembly fluid before installation to allow smooth seating and prevent twisting or pinching during assembly. Torque the pump mounting fasteners evenly to the manufacturer's specified rating to achieve uniform seal compression.
