Hydraulic Connection Hose Plumbing Kit for Cylinders - Code 50737

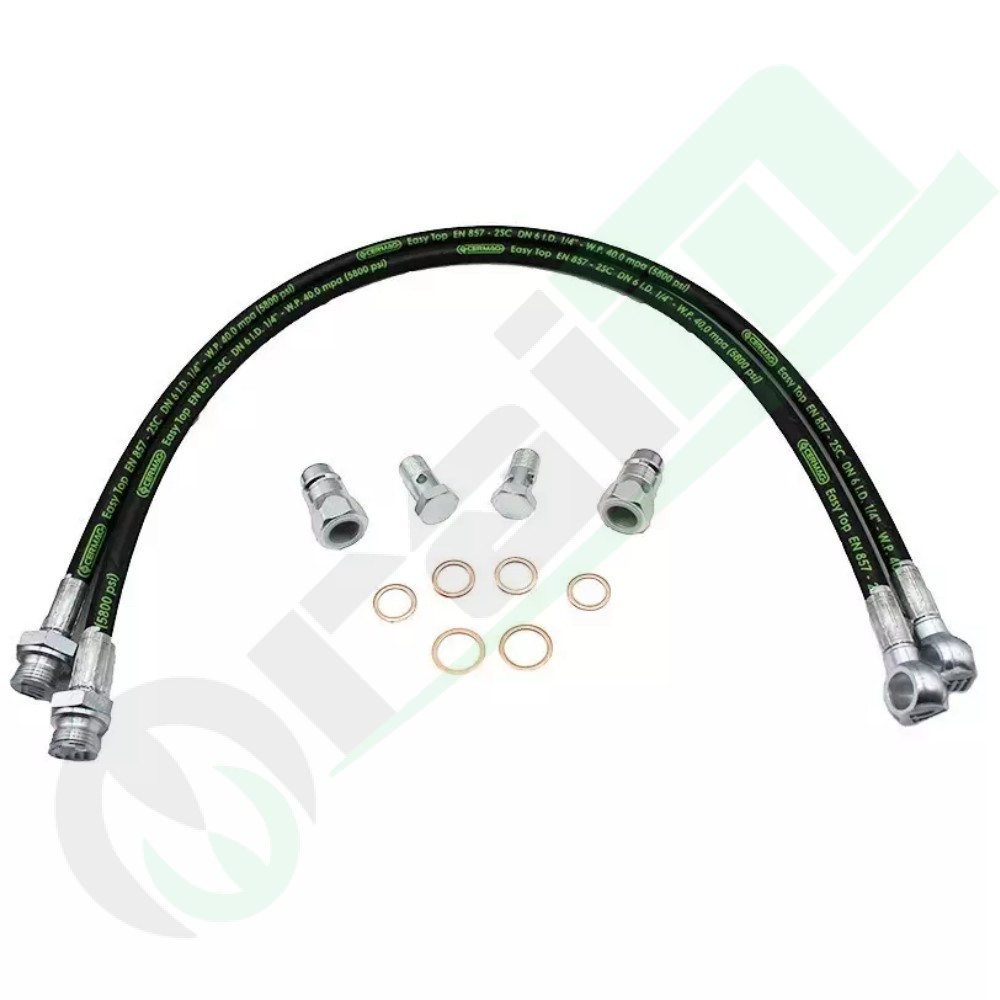

The professional complete high-flow hydraulic hose connection kit (Product Code: 50737) is a premium fluid plumbing assembly engineered to establish a secure and dynamic connection between the tractor rear auxiliary spool valves and large hydraulic top links or hydraulic lifting side rod stabilizers. Equipped with heavy-duty high-pressure flexible hoses, high-capacity swiveling banjo eye fittings, and standardized quick-release couplers, this system is certified to safely manage hydraulic oil circuits operating with heavy-duty cylinder sizes up to a 105 mm internal bore.

Design Details and Functionality

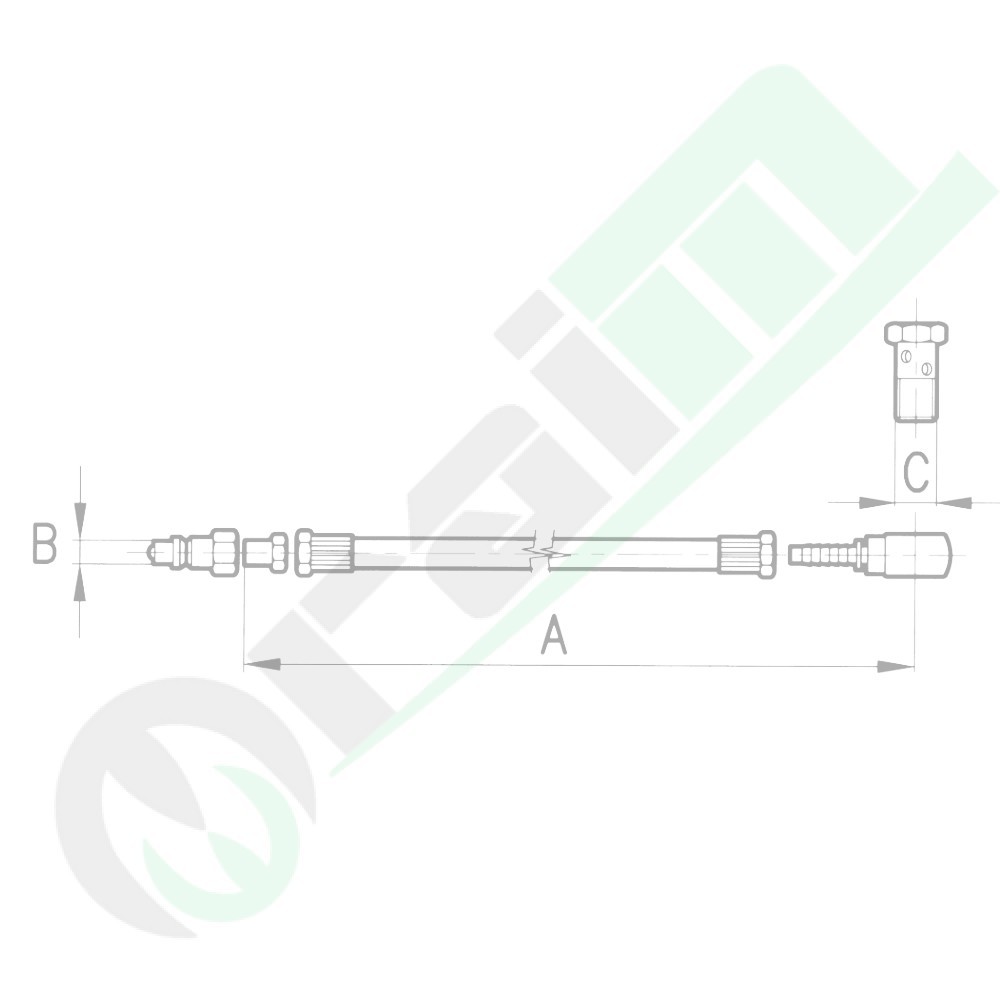

This installation plumbing kit offers an optimized fluid routing solution for medium to high-horsepower tractor rear link actuators, guaranteeing smooth fluid passages with reduced flow restrictions, lower backpressure, and absolute pressure retention under severe mechanical stress. The structural layout features double flexible hydraulic lines measuring a generous 900 mm in length, providing the necessary slack and clearance radius to easily absorb the complex pivoting, swiveling, and extension maneuvers performed by a top link or levelling side arm during working implement lift cycles. The hardware terminal setup is structured with standard 1/2" Gas Male quick-disconnect couplers on one end for instant flush mounting into standard tractor rear multi-coupler blocks. The opposite connection end terminates in robust, oversized 1/2" Gas banjo eye fittings (complete with matching banjo bolts and sealing washers), perfectly matching integrated lock valve blocks or direct dual-acting cylinder ports on heavy duty rams. The high-tensile internal steel wire reinforcement braiding resists environmental UV wear, sudden line friction, and intense hydraulic pressure spikes common to tough agricultural applications.

Technical Specifications
