Pressure and Suction PVC Hose 16mm 4050520016 | Raim Store

Pressure and Suction PVC Hose 16mm 5/8 Inch By The Meter Part No 4050520016

Reference : 4050520016

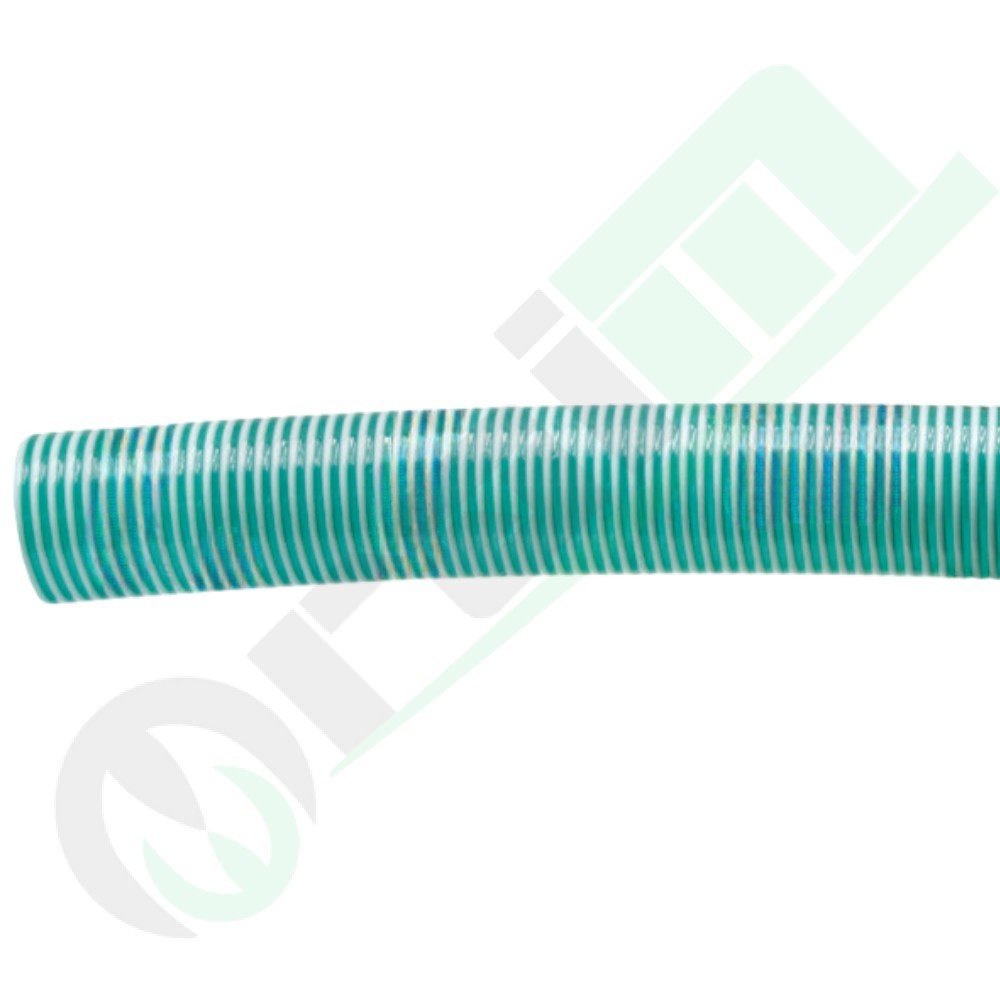

The Hose 4050520016 is made of soft PVC with polyester fiber reinforcement and a spiral structure. Featuring a smooth interior, it offers excellent resistance to chemical agents while remaining lightweight and easy to handle. With a 16 mm (5/8 inch) internal diameter, it is designed for both pressure and suction applications, ensuring reliable performance with a working pressure of 7 bar within a temperature range of -5°C to +60°C.

Hurry! only 25 items left in stock.

€2.40

Tax included

Quantity

Alta disponibilità

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

PVC Pressure & Vacuum Spiral Hose ID 16mm (5/8”) Custom Length (4050520016)

This high-quality flexible PVC spiral hose is specifically engineered for applications requiring reliable performance under both pressure and vacuum (suction). Reinforced with a strong polyester fiber insert and featuring a smooth inner bore to optimize fluid flow, it combines excellent chemical resistance with an extremely lightweight and highly flexible design.

⚠️ RETURN POLICY NOTE: Since this hose is sold by the meter and custom-cut to the length requested by the customer, returns are not accepted.

Key Features

Dual Pressure & Suction Capability: The specialized spiral structure reinforced with polyester enables the hose to operate efficiently under both pressure delivery (up to 7 bar) and suction phases without structural collapsing or kinking.
Smooth Inner Bore: Featuring a completely smooth internal surface to minimize friction losses, optimize flow rate, and prevent deposits or clogging inside the line.
Lightweight & Chemical Resistant: Extremely light and easy to transport or maneuver in the field, it offers superior chemical stability, making it suitable for transporting various industrial and agricultural fluids.

Technical Specifications

Product Code	4050520016
Hose Type	Spiral pressure and vacuum (suction) hose
Construction & Reinforcement	Soft PVC with polyester insert, smooth inner bore
Inside Diameter (ID)	16 mm (5/8")
Outside Diameter (OD)	20.4 mm
Wall Thickness	2.2 mm
Working Pressure	7 bar
Bending Radius	70 mm
Temperature Range	-5 °C to +60 °C
Food Grade Safe	NO
Format	By the meter (Full roll length 50 m)
